Brand: Siemens

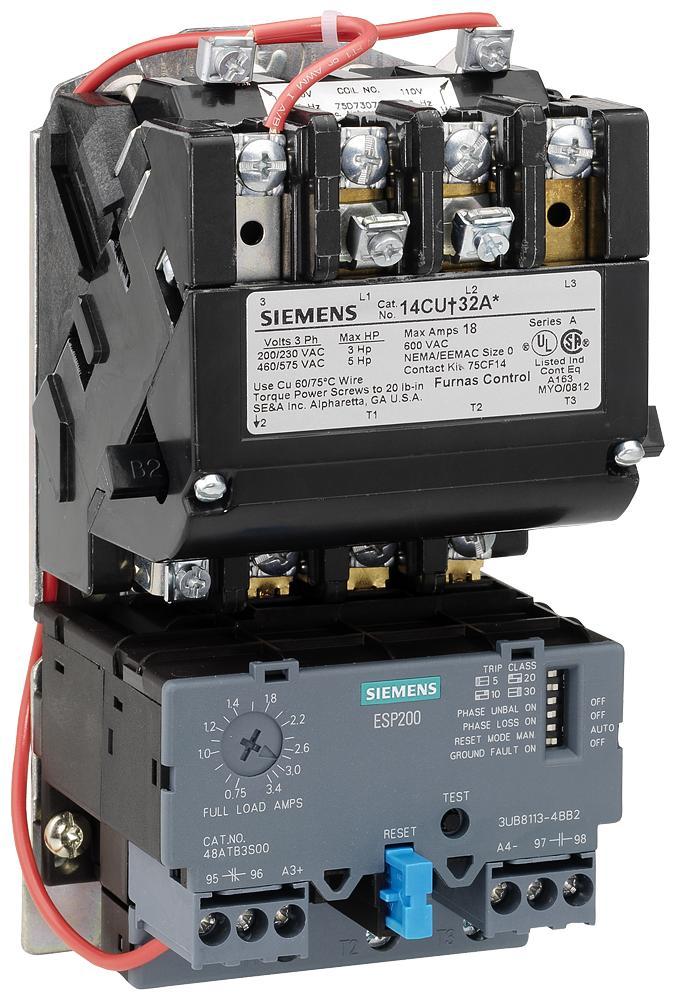

Siemens 14BUA32AF NEMA Motor Starter
Image Disclaimers Message
Brand: Siemens
Siemens 14BUA32AF NEMA Motor Starter
Brand: Siemens
Siemens 14BUA32AF NEMA Motor Starter
Part #:14BUA32AF
SKU #: 2331202
$356.40/EA
Key Features
Part #:14BUA32AF
SKU #: 2331202
Brand: Siemens
Amperage Rating: 0.25 to 1, 0.25 to 1 A
Auxiliary Contact Rating: 10 A at 600 VAC, 5 A at 600 VDC
Coil Voltage: 110/120, 110/120 VAC
Dimensions: 7.44 in H x 5.75 in W x 3.75 in D
Enclosure Type: Open
$356.40/EA
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Easy coil access
- Overload test feature
- Straight-thru wiring
- Gravity dropout
- Large silver cadmium contacts
- 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
- 0.17 hp at 200/208 VAC, 220/230 VAC, 0.33 hp at 460/480 VAC, 1/2 hp at 575/600 VAC motor power
- Screw terminal lug line side/load side outgoing feeder connection
Specifications
Brand: Siemens
Amperage Rating: 0.25 to 1, 0.25 to 1 A
Auxiliary Contact Rating: 10 A at 600 VAC, 5 A at 600 VDC
Coil Voltage: 110/120, 110/120 VAC
Dimensions: 7.44 in H x 5.75 in W x 3.75 in D
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Motor Power: 0.17 hp, 0.33 hp, 1/2 hp
Number of Poles: 3
Operating Cycles: 10000000, 10000000 Cycles
Operating Temperature: -4 to 104, -4 to 104 deg F
Overload Relay: Solid State, Solid-State
Reset Type: Automatic/Manual/Remote
Type: SZ 00 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing
Voltage Rating: 575/600, 575/600 VAC
Connection type: Screw
Country of origin: MX
Manufacturer Name: Siemens
UNSPSC: 39121521
UPC: 00783087938649
Item FeaturesFor across the line starting of 1-phase and polyphase motors, applications requiring dependability and durability, use with machine tools, air conditioning equipment, material handling equipment, compressors, hoists and various production and industrial equipment as well as in demanding automotive applications
Item Features
Item FeaturesUL File No. E14900|CSA File No. LR 6535
