Part Number # 14CUB32AF
SKU # 2219838
Image Disclaimers Message
14CUB32AF

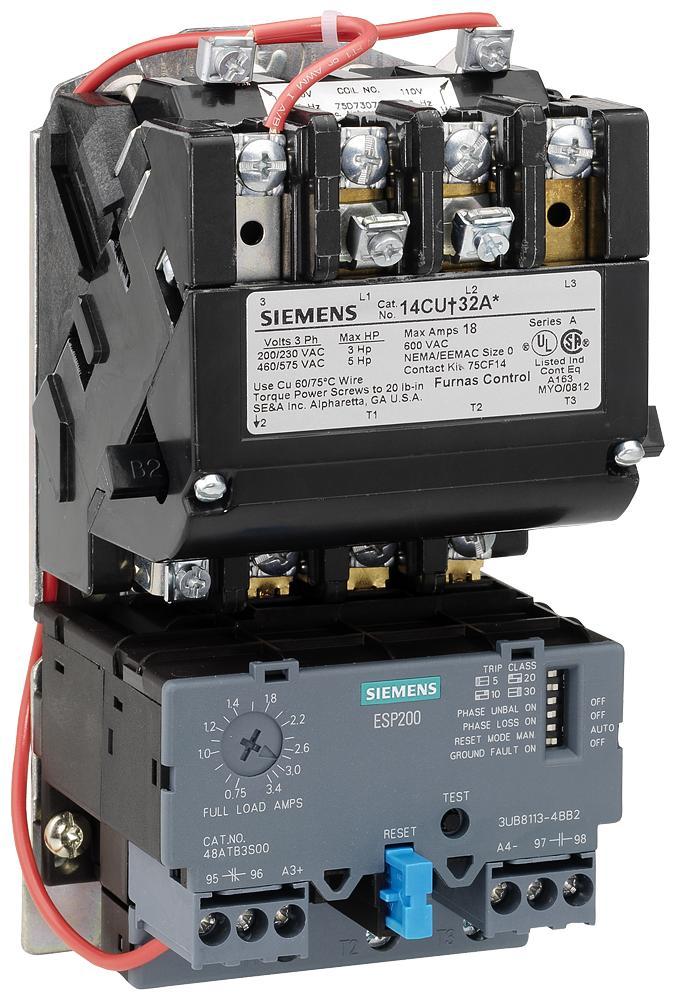

Siemens 14CUB32AF Motor Starter
Part Number # 14CUB32AF
SKU # 2219838
$491.66 / Each
Typical price:$956.00 / Each
Siemens 14CUB32AF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 14CUB32AF |
| SKU #: | 2219838 |
| Action: | Non-Reversing/Non-Combination |
| Amperage Rating: | 0.75 to 3.4, 0.75 to 3.4 A |
| Auxiliary Contact Rating: | 1NO |
| Coil Voltage: | 110 to 120, 110 to 120 V AC, 110 to 120 VAC |
| Dimensions: | 7.44 in H x 5.75 in W x 3.75 in D |
| Enclosure Type: | NEMA 0/Open, Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 1 hp, 2, 3 hp, 4, 1-1 hp, 2, 2 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -4 to 104, -4 to 104 deg F |
| Overload Relay: | Solid State, Solid-State |
| Reset Type: | Automatic/Manual |
| Timing: | 19 to 29 ms On/10 to 24 ms Off |
| Type: | Class 14 Full Voltage Heavy Duty |
| Wattage: | 8.6, 8.6 W |
| Connection type: | Thread, Threaded |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00783087817692 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$491.66 / Each
Typical price:$956.00 / Each
Quantity:
- Siemens Motor Starter, Class 14 Full Voltage Heavy Duty, 120 V AC, 0.75 to 3.4 A, 50/60 Hz Frequency, 8.6 W Wattage, 1 hp, 2, 3 hp, 4, 1-1 hp, 2, 2 hp Motor, 110 to 120 V AC Coil, 3 Pole, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual Reset, Thread Connection, Non-Reversing/Non-Combination Action, Solid-State Overload Relay, 1NO Auxiliary, Open Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 7.44 in H x 5.75 in W x 3.75 in D Dimensions
14CUB32AF Item Features
- Rugged industrial design, half sizes for cost and space savings, dual voltage, dual frequency coils
- Easy coil access, overload test feature, straight thru wiring
- 0.5 hp at 200 VAC, 0.75 hp at 230 VAC, 1.5 hp at 460 VAC, 2 hp at 575 VAC
- Solid state or ambient compensated bimetal overload protection
- Wide range of accessories
14CUB32AF Standards
UL File No. E14900|CSA File No. LR6535SKU #2219838Part Number #14CUB32AFUNSPSC39121521UPC00783087817692
