Part Number # 14CUC32BC
SKU # 2301313
14CUC32BC
Siemens 14CUC32BC NEMA Motor Starter
Part Number # 14CUC32BC
SKU # 2301313
Siemens 14CUC32BC Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 14CUC32BC |
| SKU #: | 2301313 |
| Coil Voltage: | 220 to 240 V AC, 440 to 480 V AC, 190 to 220 V AC, 380 to 440 V AC |
| Operating Temperature: | -4 to 104 deg F |
| Type: | SZ 0 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing |
| UNSPSC: | 39121521 |
| UPC: | 00783087941168 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 14CUC32BC NEMA Motor Starter
Brand: Siemens
Part Number: 14CUC32BC
Siemens NEMA Motor Starter, SZ 0 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing, 575/600 VAC, 3 to 12 A, 50/60 Hz Frequency, 2 hp, 5 hp Motor, 220 to 240 V AC, 440 to 480 V AC, 190 to 220 V AC, 380 to 440 V AC Coil, 3 Pole, Automatic/Manual/Remote Reset, Screw Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 11 in H x 7 in W x 5 in D Dimensions
Additional Description: SIEM-14CUC32BC STARTER,FVNR SZ0,3-12AMPS,N1,240/480V SZ0,3-12AMPS,N1,240/480V
Catalog Description: Non-reversing motor starter, Size 0, H2 Solid-state overload relay, OLR amp range 3-12A, 220 240/440 480VAC 60Hz coil, Non-combination type, Enclosure type 1, Indoor general purpose use, Standard width enclosure
14CUC32BC Application
For across the line starting of 1-phase and polyphase motors, applications requiring dependability and durability, use with machine tools, air conditioning equipment, material handling equipment, compressors, hoists and various production and industrial equipment as well as in demanding automotive, indoor and general purpose applications14CUC32BC Item Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Easy coil access
- Overload test feature
- Straight-thru wiring
- Gravity dropout
- Large silver cadmium contacts
- 220 to 240 VAC, 440 to 480 VAC at 60 Hz, 190 to 220 VAC, 380 to 440 VAC at 50 Hz coil voltage
- 2 hp at 200/208 VAC, 220/230 VAC, 5 hp at 460/480 VAC, 575/600 VAC motor power
- Screw terminal lug line side/load side outgoing feeder connection
14CUC32BC Standards
UL Listed File E14900, CSA Certified File LR6535SKU #2301313Part Number #14CUC32BCUNSPSC39121521UPC00783087941168

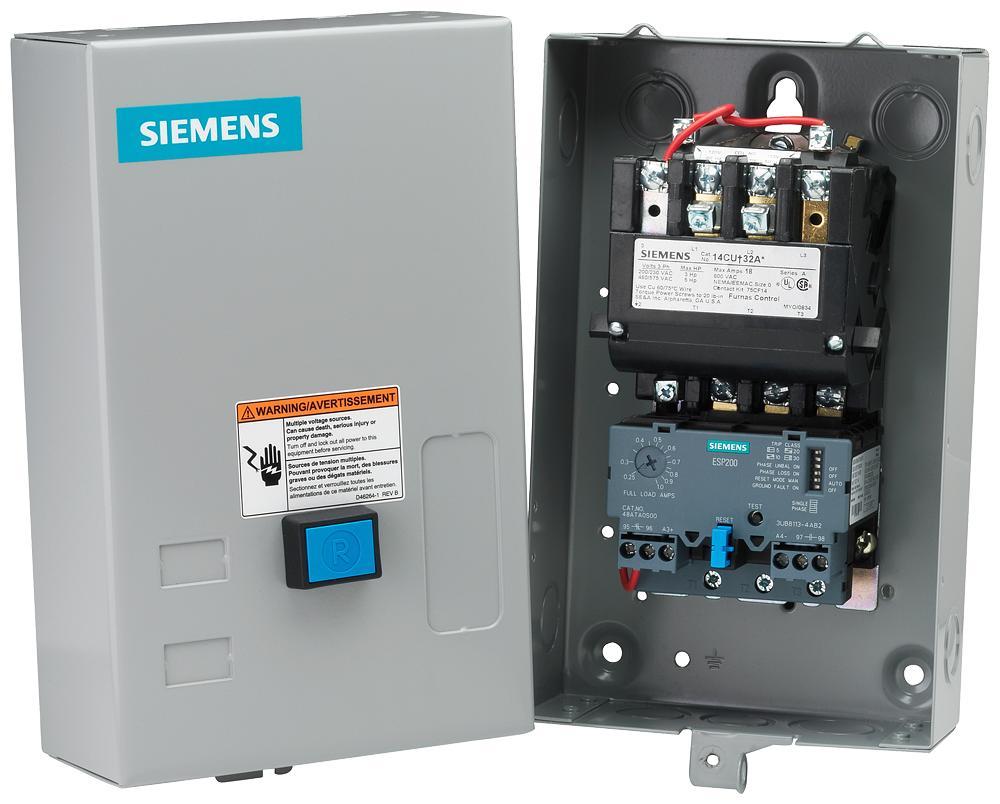

Image provided may only be a representation of final product and may include optional equipment
