Brand: Siemens
14CUC32BD

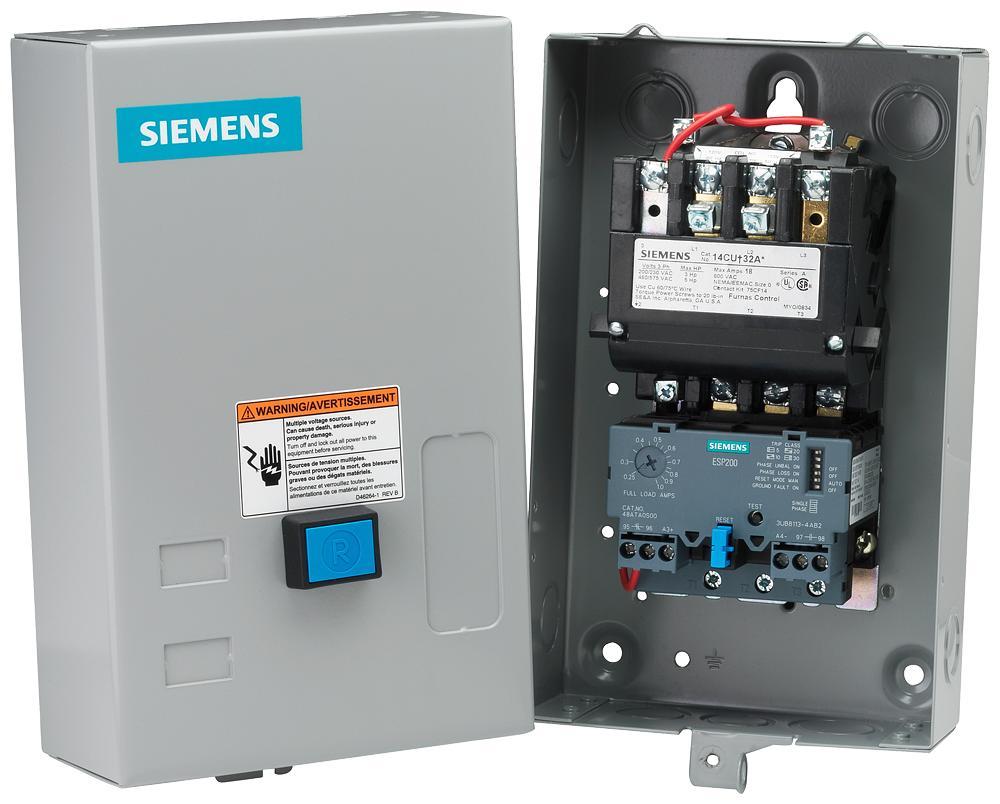

Siemens 14CUC32BD Nema Motor Starter
Part Number # 14CUC32BD
SKU # 2418809
$520.93 / Each
Typical price:$935.00 / Each
Siemens 14CUC32BD Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 14CUC32BD |
| SKU #: | 2418809 |
| Amperage Rating: | 3 to 12 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 200 to 208 V AC, 200 to 208 VAC |
| Dimensions: | 11 in H x 7 in W x 5 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Motor Power: | 2 hp, 5 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -4 to 104 deg F |
| Overload Relay: | Solid-State |
| Reset Type: | Automatic/Manual/Remote |
| Type: | SZ 0 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing |
| Connection type: | Screw |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00783087941175 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$520.93 / Each
Typical price:$935.00 / Each
Quantity:
- Siemens NEMA Motor Starter, SZ 0 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing, 575/600 V AC, 3 to 12 A, 60 Hz Frequency, 2 hp, 5 hp Motor, 200 to 208 VAC Coil, 3 Pole, Automatic/Manual/Remote Reset, Screw Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 11 in H x 7 in W x 5 in D Dimensions
14CUC32BD Application
For across the line starting of 1-phase and polyphase motors, applications requiring dependability and durability, use with machine tools, air conditioning equipment, material handling equipment, compressors, hoists and various production and industrial equipment as well as in demanding automotive, indoor and general purpose applications14CUC32BD Item Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Easy coil access
- Overload test feature
- Straight-thru wiring
- Gravity dropout
- Large silver cadmium contacts
- 200 to 208 VAC at 60 Hz coil voltage
- 2 hp at 200/208 VAC, 220/230 VAC, 5 hp at 460/480 VAC, 575/600 VAC motor power
- Screw terminal lug line side/load side outgoing feeder connection
14CUC32BD Standards
UL Listed File E14900, CSA Certified File LR6535SKU #2418809Part Number #14CUC32BDUNSPSC39121521UPC00783087941175
