Part Number # 14DUB32BA
SKU # 2447716
14DUB32BA
Siemens 14DUB32BA
Part Number # 14DUB32BA
SKU # 2447716
Siemens 14DUB32BA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 14DUB32BA |
| SKU #: | 2447716 |
| Amperage Rating: | 27 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110/190 to 220 V AC at 50 Hz, 110 to 120/220 to 240 V AC at 60 Hz, 110/190 to 220 VAC at 50 Hz, 110 to 120/220 to 240 VAC at 60 Hz |
| Dimensions: | 7 in W x 5 in D x 11 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Full Load Current: | 0.75 to 3.4 A |
| Motor Power: | 1/2 hp at 200/208 VAC, 3/4 hp at 220/230 VAC, 1-1/2 hp at 460/480 VAC, 2 hp at 575/600 VAC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | 104 deg F |
| Overload Relay: | Solid-State |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Timing: | 19 to 29 ms On/10 to 24 ms Off |
| Type: | Heavy Duty Full Voltage Non-Reversing |
| Wattage: | 8.6 W |
| Connection type: | Screw Terminal |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00783087943520 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 14DUB32BA
Brand: Siemens
Part Number: 14DUB32BA
Siemens Non-Combination Motor Starter, Heavy Duty Full Voltage Non-Reversing, 600 VAC, 27 A, 60 Hz Frequency, 8.6 W Wattage, 1/2 hp at 200/208 VAC, 3/4 hp at 220/230 VAC, 1-1/2 hp at 460/480 VAC, 2 hp at 575/600 VAC Motor, 110/190 to 220 VAC at 50 Hz, 110 to 120/220 to 240 VAC at 60 Hz Coil, 3 Pole, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Terminal Screw Connection, Solid-State Overload Relay, 0.75 to 3.4 A Full Load, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary,
Additional Description: SIEM-14DUB32BA STARTER,FVNR SZ1,0.75-3.4AMPS,N1,120/240
Catalog Description: Non-reversing motor starter, Size 1, H2 Solid-state overload relay, OLR amp range 0.75-3.4A, 110 120/220 240VAC 60Hz coil, Non-combination type, Enclosure type1, Indoor general purpose use, Standard width enclosure
14DUB32BA Application
Indoor and General Purpose14DUB32BA Item Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Wide range of accessories
- Easy coil access
- Overload test feature
- Straight thru wiring
- Gravity drop-out
- Large silver cadmium contacts
- Suitable for 3-wire pilot control (NO auxiliary contact included)
- NEMA controller size 1
- Standard width enclosure
14DUB32BA Standards
CSA 22.2, No.14|NEMA ICS 2|UL 508SKU #2447716Part Number #14DUB32BAUNSPSC39121521UPC00783087943520

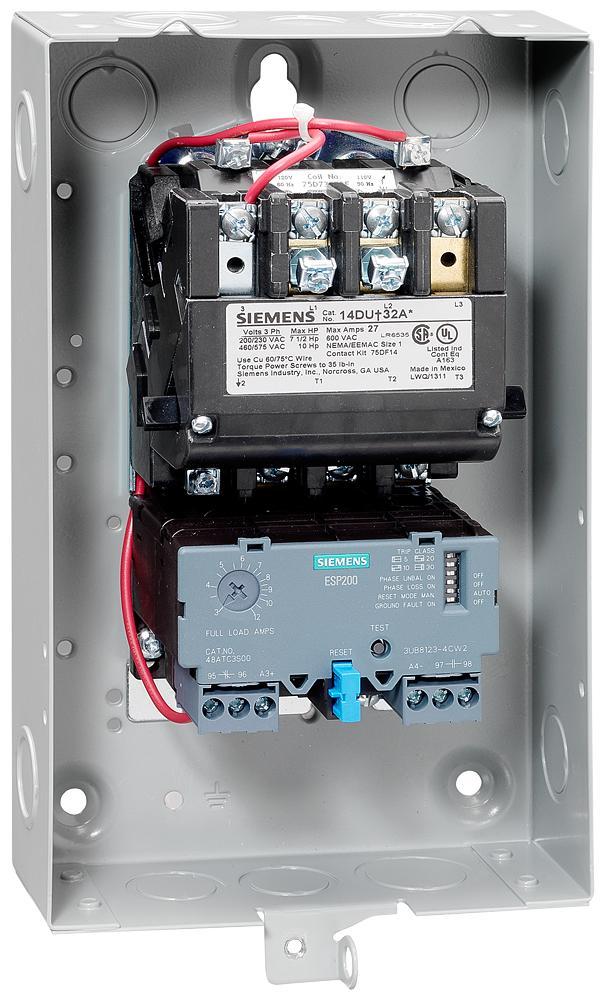

Image provided may only be a representation of final product and may include optional equipment
