Part Number # 14IUH320F
SKU # 2366750
Image Disclaimers Message
14IUH320F

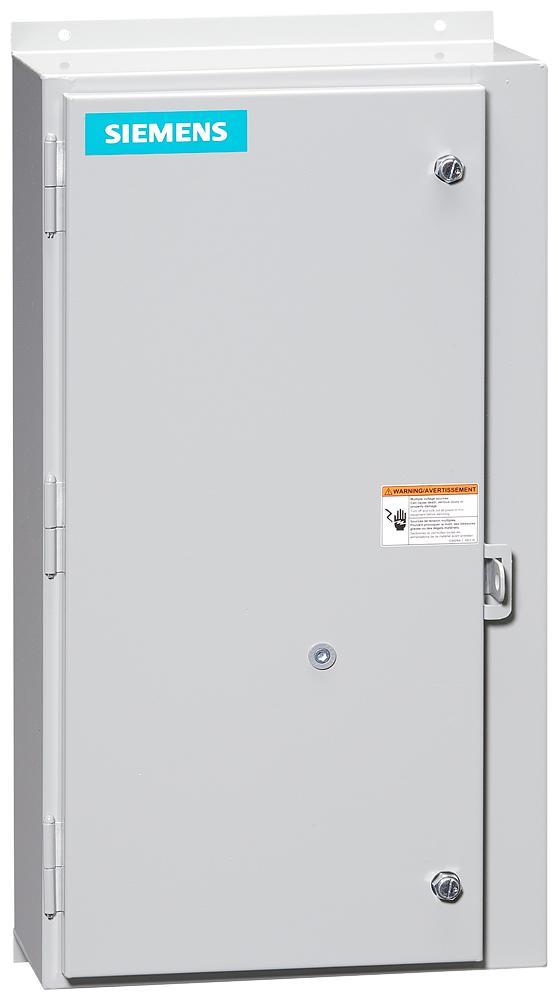

Siemens 14IUH320F Non-Combination Motor Starter
Part Number # 14IUH320F
SKU # 2366750
$4217.14 / Each
Typical price:$8200.00 / Each
Siemens 14IUH320F Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 14IUH320F |
| SKU #: | 2366750 |
| Amperage Rating: | 115, 115 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110 V AC at 50 Hz, 120 V AC at 60 Hz, 110 VAC at 50 Hz, 120 VAC at 60 Hz |
| Dimensions: | 13 in W x 8 in D x 26 in H |
| Enclosure Type: | NEMA 12 |
| Frequency Rating: | 60, 60 Hz |
| Full Load Current: | 50 to 200, 50 to 200 A |
| Motor Power: | 30 hp at 200/208 VAC, 40 hp at 220/230 VAC, 75 hp at 460/480/575/600 VAC |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000, 5000000 Cycles |
| Operating Temperature: | 104, 104 deg F |
| Overload Relay: | Solid-State |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Timing: | 26 to 41 ms On/14 to 19 ms Off |
| Type: | Heavy Duty Full Voltage Non-Reversing |
| Wattage: | 14, 14 W |
| Connection type: | Box Lug/Screw Terminal |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00783087949362 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4217.14 / Each
Typical price:$8200.00 / Each
Quantity:
- Siemens Non-Combination Motor Starter, Heavy Duty Full Voltage Non-Reversing, 600 VAC, 115 A, 60 Hz Frequency, 14 W Wattage, 30 hp at 200/208 VAC, 40 hp at 220/230 VAC, 75 hp at 460/480/575/600 VAC Motor, 110 V AC at 50 Hz, 120 V AC at 60 Hz Coil, 3 Pole, 26 to 41 ms On/14 to 19 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Box Lug/Screw Terminal Connection, Solid-State Overload Relay, 50 to 200 A Full Load, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 12 Enclosure, 5000000 Cycles Operating Cycles, 104 deg F Operating, 13 in W x 8 in D x 26 in H Dimensions
14IUH320F Application
Indoor14IUH320F Item Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Wide range of accessories
- Easy coil access
- Overload test feature
- Straight thru wiring
- Gravity drop-out
- Large silver cadmium contacts
- Field convertible to NEMA 3/3R/4
- Suitable for 3-wire pilot control (NO auxiliary contact included)
- NEMA controller size 3-1/2
- Dust/drip-proof enclosure
- Standard width enclosure
14IUH320F Standards
CSA 22.2, No.14|NEMA ICS 2|UL 508SKU #2366750Part Number #14IUH320FUNSPSC39121521UPC00783087949362
