Part Number # 14JUH32FA
SKU # 2465367
14JUH32FA
Siemens 14JUH32FA
Part Number # 14JUH32FA
SKU # 2465367
$2999.31 / Each
Typical price:$13122.00 / Each
Siemens 14JUH32FA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 14JUH32FA |
| SKU #: | 2465367 |
| Coil Voltage: | 110/110 to 120/190 to 220/220 to 240 V AC |
| Dimensions: | 24 in H x 24 in W x 7 in D |
| Operating Temperature: | -4 to 104 deg F |
| Setting: | 50 to 200 A |
| Timing: | 18 to 34 ms On, 10 to 12 ms Off |
| Type: | SZ 4 Class 14 Full Voltage Heavy Duty Non-Combination Non-Reversing Standard Width |
| Connection type: | Box Lug/Screw Terminal |
| UNSPSC: | 39121521 |
| UPC: | 00887621010102 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2999.31 / Each
Typical price:$13122.00 / Each
Quantity:
- Siemens NEMA Motor Starter, SZ 4 Class 14 Full Voltage Heavy Duty Non-Combination Non-Reversing Standard Width, 600 V AC, 135 A, 50/60 Hz Frequency, 40 hp, 50 hp, 100 hp Motor, 110/110 to 120/190 to 220/220 to 240 VAC Coil, 3 Pole, Setting: 50 to 200 A, 18 to 34 ms On, 10 to 12 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Box Lug/Screw Terminal Connection, Solid-State Overload Relay, 10 A at 600 V AC, 5 A at 600 VDC Auxiliary, NEMA 4X Enclosure, Fiberglass, 5000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 24 in H x 24 in W x 7 in D Dimensions
14JUH32FA Application
For across the line starting of 1-phase and polyphase motors, applications requiring dependability and durability, use with machine tools, air conditioning equipment, material handling equipment, compressors, hoists and various production and industrial equipment as well as in demanding automotive, industrial and general purpose applications14JUH32FA Item Features
- Rugged industrial design
- Half sizes, space and cost savings
- Dual voltage and dual frequency coils
- Solid state or ambient compensated bimetal overload protection
- Easy coil access
- Overload test feature
- Straight through wiring
- Gravity dropout
- Large silver cadmium contacts
- 40 hp at 200/208 VAC, 50 hp at 220/230 VAC, 100 hp at 460/480/575/600 VAC 3-phase motor power
- 110/190 to 220 VAC at 50 Hz, 110 to 120/220 to 240 VAC at 60 Hz coil voltage
- Box lug for supply voltage line side/load side outgoing feeder, screw type terminals for magnet coil/auxiliary contacts/overload relay
14JUH32FA Standards
UL 508 File No. E14900|CSA 22.2 File No. 14, LR 6535|ECCN: EAR99SKU #2465367Part Number #14JUH32FAUNSPSC39121521UPC00887621010102

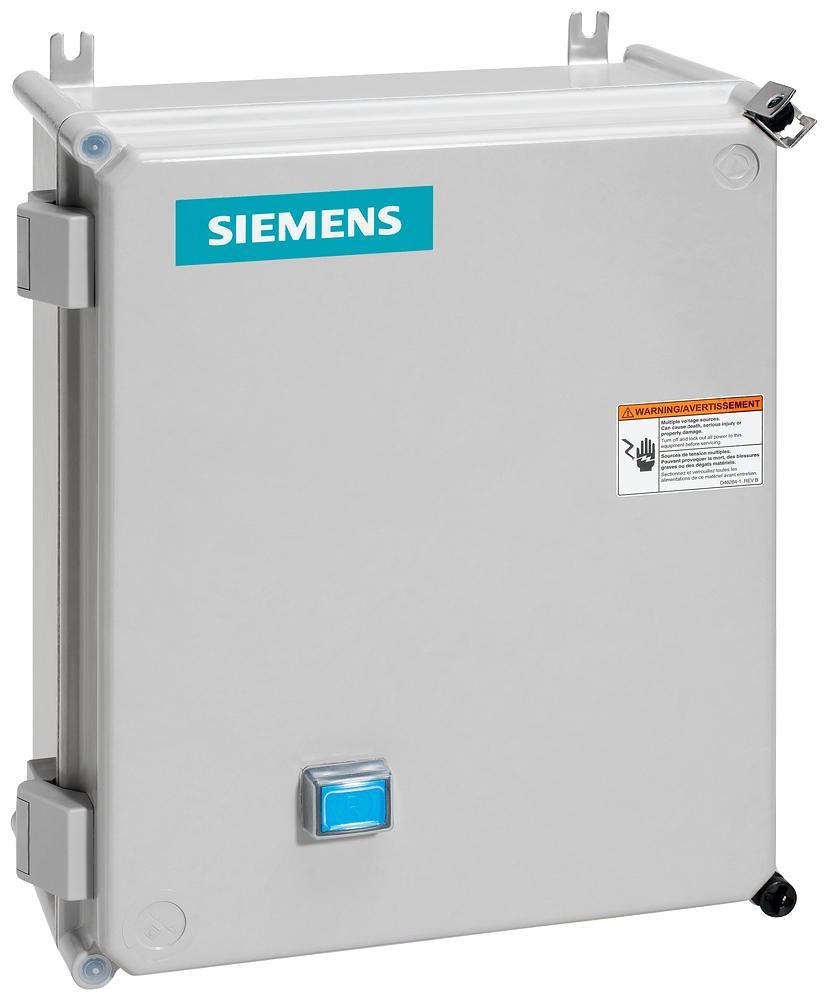

Image provided may only be a representation of final product and may include optional equipment
