14LPU32AF

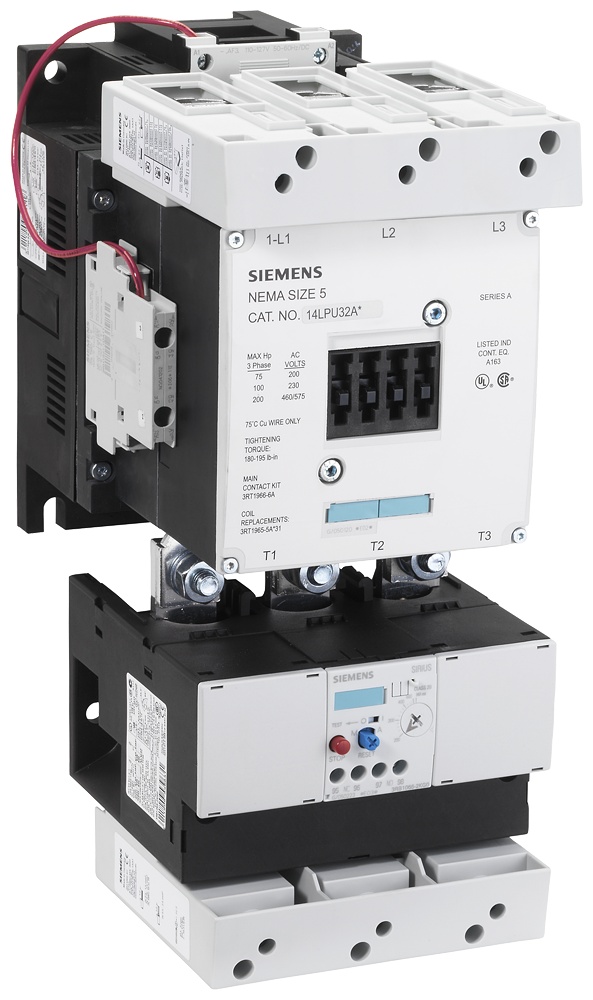

Siemens 14LPU32AF Motor Starter
Part Number # 14LPU32AF
SKU # 1066594
$6022.25 / Each
Typical price:$12524.00 / Each
Siemens 14LPU32AF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 14LPU32AF |
| SKU #: | 1066594 |
| Action: | Non-Reversing/Non-Combination |
| Amperage Rating: | 55 to 250, 55 to 250 A |
| Auxiliary Contact Rating: | 2NO/2NC |
| Coil Voltage: | 110 to 127, 110 to 127 V AC, 110 to 127 VAC |
| Dimensions: | 12.92 in H x 6.5 in W x 8.94 in D |
| Enclosure Type: | NEMA 5/Open, Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 75 hp, 100 hp, 200 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -4 to 104, -4 to 104 deg F |
| Overload Relay: | Solid State, Solid-State |
| Phase: | 3 |
| Reset Type: | Automatic/Manual |
| Timing: | 30 to 95 ms On/40 to 80 ms Off |
| Type: | Class 14 Full Voltage Heavy Duty |
| Wattage: | 7.4, 7.4 W |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554825168 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6022.25 / Each
Typical price:$12524.00 / Each
Quantity:
- Siemens Motor Starter, Class 14 Full Voltage Heavy Duty, 120 V AC, 55 to 250 A, 50/60 Hz Frequency, 7.4 W Wattage, 75 hp, 100 hp, 200 hp Motor, 110 to 127 VAC Coil, 3 Pole, 30 to 95 ms On/40 to 80 ms Off Timing, Automatic/Manual Reset, 3 ph, Thread Connection, Non-Reversing/Non-Combination Action, Solid-State Overload Relay, 2NO/2NC Auxiliary, Open Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 12.92 in H x 6.5 in W x 8.94 in D Dimensions
14LPU32AF Item Features
- Rugged industrial design, half sizes for cost and space savings, dual voltage, dual frequency coils
- Easy coil access, overload test feature, straight thru wiring
- 75 hp at 200 VAC, 100 hp at 230 VAC, 200 hp at 460/575 VAC
- Solid state or ambient compensated bimetal overload protection
- Wide range of accessories
- NEMA Size 5
14LPU32AF Standards
UL Listed File E14900, CSA Certified File LR6535SKU #1066594Part Number #14LPU32AFUNSPSC39121521UPC00754554825168
