Part Number # 14MPX32AF
SKU # 2198564

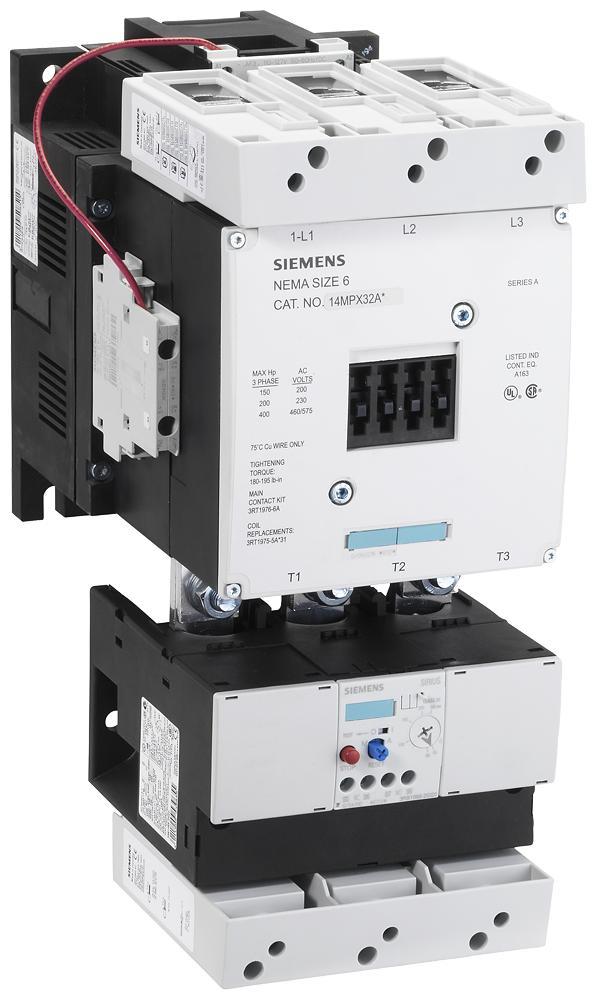

Image provided may only be a representation of
final product and may include optional equipment
14MPX32AF
Siemens 14MPX32AF NEMA Motor Starter
Part Number # 14MPX32AF
SKU # 2198564
Siemens 14MPX32AF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 14MPX32AF |
| SKU #: | 2198564 |
| Amperage Rating: | 160 to 630, 160 to 630 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 2.5 A at 250 VDC |
| Coil Voltage: | 110/120, 110/120 V AC, 110/120 VAC |
| Dimensions: | 13.2 in H x 7.09 in W x 9.65 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 150 hp, 200 hp, 400 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -4 to 104, -4 to 104 deg F |
| Overload Relay: | Solid State, Solid-State |
| Reset Type: | Automatic/Manual |
| Type: | SZ 6 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing |
| Connection type: | Box Lug |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00754554825182 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 14MPX32AF NEMA Motor Starter
Brand: Siemens
Part Number: 14MPX32AF
Siemens NEMA Motor Starter, SZ 6 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing, 575/600 VAC, 160 to 630 A, 50/60 Hz Frequency, 150 hp, 200 hp, 400 hp Motor, 110/120 VAC Coil, 3 Pole, Automatic/Manual Reset, Box Lug Connection, Solid-State Overload Relay, 10 A at 600 VAC, 2.5 A at 250 VDC Auxiliary, Open Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 13.2 in H x 7.09 in W x 9.65 in D Dimensions
Additional Description: SIEM-14MPX32AF STR-FVNR,SZ6,3P,OPN,110-127VACDC,20 0-540 40A 120V,200-540A
Catalog Description: Non-reversing motor starter, Size 6, Three phase full voltage, Solid-state overload relay, OLR amp range 160-630A, 110-127V 50-60Hz/DC coil, Non-combination type, Enclosure type (open), No enclosure
14MPX32AF Application
For across the line starting of 1-phase and polyphase motors, applications requiring dependability and durability, use with machine tools, air conditioning equipment, material handling equipment, compressors, hoists and various production and industrial equipment as well as in demanding automotive applications14MPX32AF Item Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Easy coil access
- Overload test feature
- Straight-thru wiring
- Gravity dropout
- Large silver cadmium contacts
- 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
- 150 hp at 200/208 VAC, 200 hp at 220/230 VAC, 400 hp at 460/480 VAC, 575/600 VAC motor power
- Box lug line side/load side outgoing feeder connection
14MPX32AF Standards
UL File No. E14900|CSA File No. LR 6535SKU #2198564Part Number #14MPX32AFUNSPSC39121521UPC00754554825182
