Part Number # 17FUF92NF13
SKU # 2302009
17FUF92NF13

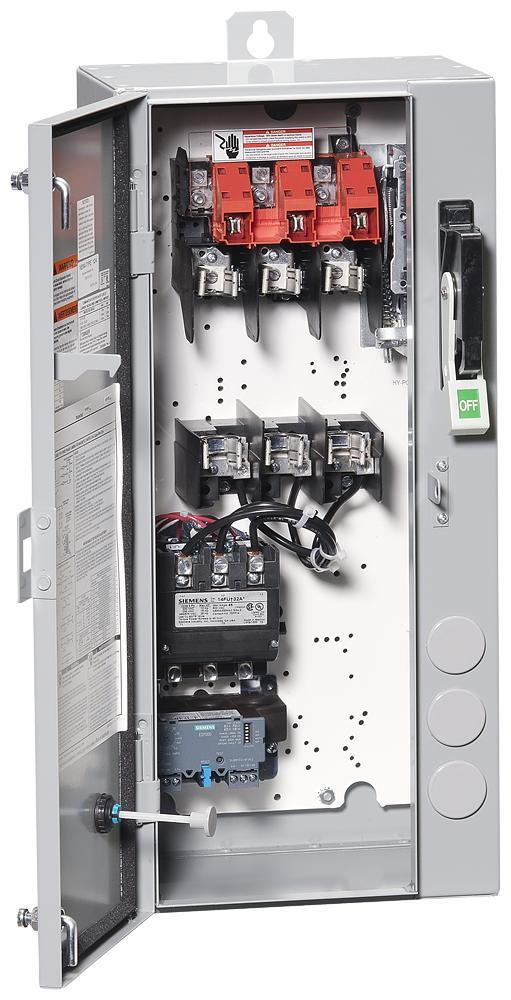

Siemens 17FUF92NF13 Combination Starter
Part Number # 17FUF92NF13
SKU # 2302009
$2343.00 / Each
Typical price:$4686.00 / Each
Siemens 17FUF92NF13 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 17FUF92NF13 |
| SKU #: | 2302009 |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Dimensions: | 24 in H x 11 in W x 8 in D |
| Motor Power: | 25 hp |
| Overload Relay: | Solid-State |
| Setting: | 13 to 52 A |
| Type: | SZ 2 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof |
| Connection type: | Box Lug |
| UNSPSC: | 39121521 |
| UPC: | 00662643810905 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2343.00 / Each
Typical price:$4686.00 / Each
Quantity:
- Siemens Combination Starter, SZ 2 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof, 575/600 V AC, 50/60 Hz Frequency, 25 hp Motor, 110/120 VAC Coil, 3 Pole, Setting: 13 to 52 A, Automatic/Manual/Remote Reset, Box Lug Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 12 Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 24 in H x 11 in W x 8 in D Dimensions
17FUF92NF13 Application
Industrial and Outdoor Applications17FUF92NF13 Item Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 25 hp at 460/480 VAC, 25 hp at 575/600 VAC
- Box lug line side/load side outgoing feeder connection
- 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
17FUF92NF13 Standards
UL File No. E185287|CSA File No. LR 6535SKU #2302009Part Number #17FUF92NF13UNSPSC39121521UPC00662643810905
Image provided may only be a representation of final product and may include optional equipment
