Part Number # 17JUH92BA17
SKU # 2392187
Image Disclaimers Message
17JUH92BA17

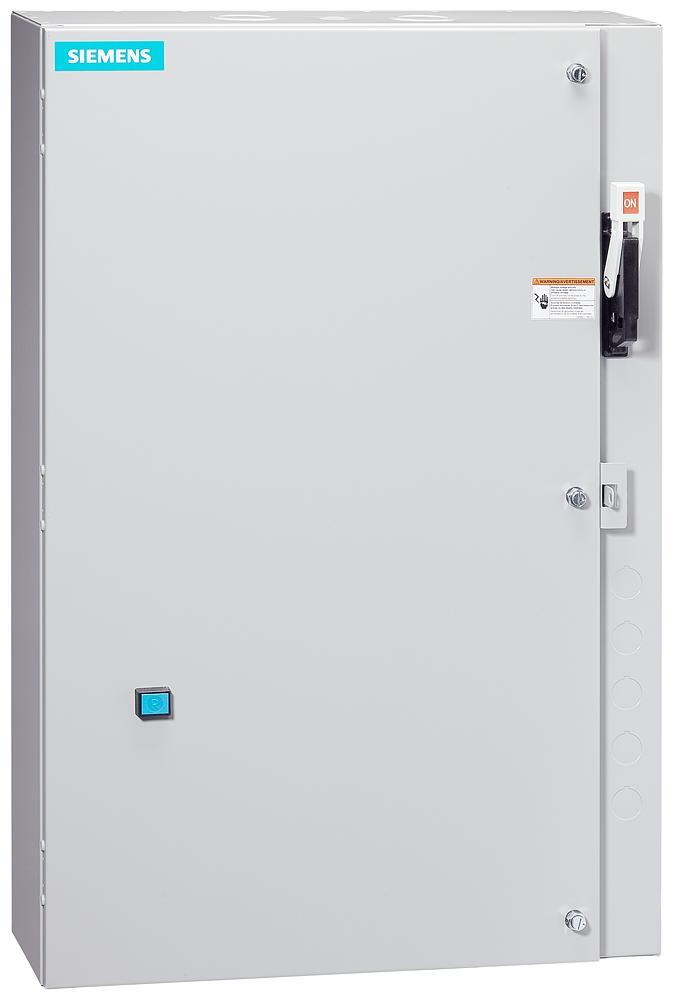

Siemens 17JUH92BA17 Combination Starter
Part Number # 17JUH92BA17
SKU # 2392187
$6445.54 / Each
Typical price:$12533.00 / Each
Siemens 17JUH92BA17 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 17JUH92BA17 |
| SKU #: | 2392187 |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110 V AC, 110 to 120 V AC, 190 to 220 V AC, 220 to 240 V AC, 110 VAC, 110 to 120 VAC, 190 to 220 VAC, 220 to 240 VAC |
| Dimensions: | 36 in H x 24 in W x 8 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 100 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -4 to 104 deg F |
| Overload Relay: | Solid-State |
| Reset Type: | Automatic/Manual/Remote |
| Setting: | 50 to 200 A |
| Type: | SZ 4 Class 17 Full Voltage Heavy Duty Non-Reversing |
| Connection type: | Box Lug |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643815900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6445.54 / Each
Typical price:$12533.00 / Each
Quantity:
- Siemens Combination Starter, SZ 4 Class 17 Full Voltage Heavy Duty Non-Reversing, 575/600 VAC, 50/60 Hz Frequency, 100 hp Motor, 110 V AC, 110 to 120 V AC, 190 to 220 V AC, 220 to 240 V AC Coil, 3 Pole, Setting: 50 to 200 A, Automatic/Manual/Remote Reset, Box Lug Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, 5000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 36 in H x 24 in W x 8 in D Dimensions
17JUH92BA17 Application
Indoor General Purpose Use17JUH92BA17 Item Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 100 hp at 460/480 VAC, 100 hp at 575/600 VAC
- Box lug line side/load side outgoing feeder connection
- 110 to 120 VAC, 220 to 240 VAC at 60 Hz, 110 VAC, 190 to 220 VAC at 50 Hz coil voltage
17JUH92BA17 Standards
CSA File No. LR 6535|UL File No. E185287SKU #2392187Part Number #17JUH92BA17UNSPSC39121521UPC00662643815900
