Part Number # 18DUC92WF
SKU # 2221648
Image Disclaimers Message
Brand: Siemens
18DUC92WF

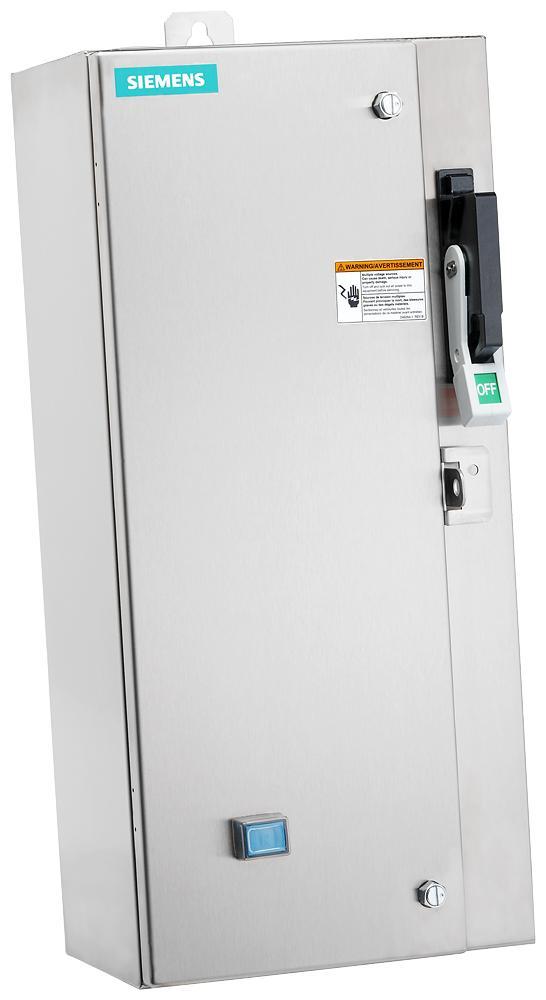

Siemens 18DUC92WF Combination Starter
Part Number # 18DUC92WF
SKU # 2221648
$2442.36 / Each
Typical price:$5515.00 / Each
Siemens 18DUC92WF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 18DUC92WF |
| SKU #: | 2221648 |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110/120, 110/120 V AC, 110/120 VAC |
| Dimensions: | 24 in H x 11 in W x 8 in D |
| Enclosure Type: | NEMA 4/4X |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 2 hp, 5 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -4 to 104, -4 to 104 deg F |
| Overload Relay: | Solid State, Solid-State |
| Reset Type: | Automatic/Manual/Remote |
| Setting: | 3 to 12, 3 to 12 A |
| Type: | SZ 1 Class 18 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing |
| Connection type: | Box Lug/Screw Terminal |
| Country of origin: | US |
| Material: | 304 Stainless Steel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643819632 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2442.36 / Each
Typical price:$5515.00 / Each
Quantity:
- Siemens Combination Starter, SZ 1 Class 18 Corrosion-Resistant Dust/Watertight Full Voltage Heavy Duty Non-Reversing, 575/600 V AC, 50/60 Hz Frequency, 2 hp, 5 hp Motor, 110/120 VAC Coil, 3 Pole, Setting: 3 to 12 A, Automatic/Manual/Remote Reset, Box Lug/Screw Terminal Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 4/4X Enclosure, 304 Stainless Steel, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 24 in H x 11 in W x 8 in D Dimensions
18DUC92WF Item Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 2 hp at 200/208 VAC, 2 hp at 220/230 VAC, 5 hp at 460/480 VAC, 5 hp at 575/600 VAC
- Box lug line side, screw terminal load side outgoing feeder connection
- 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
18DUC92WF Standards
UL File No. E185287|CSA File No. LR 6535SKU #2221648Part Number #18DUC92WFUNSPSC39121521UPC00662643819632
