Part Number # 18FUF92NF
SKU # 2245158

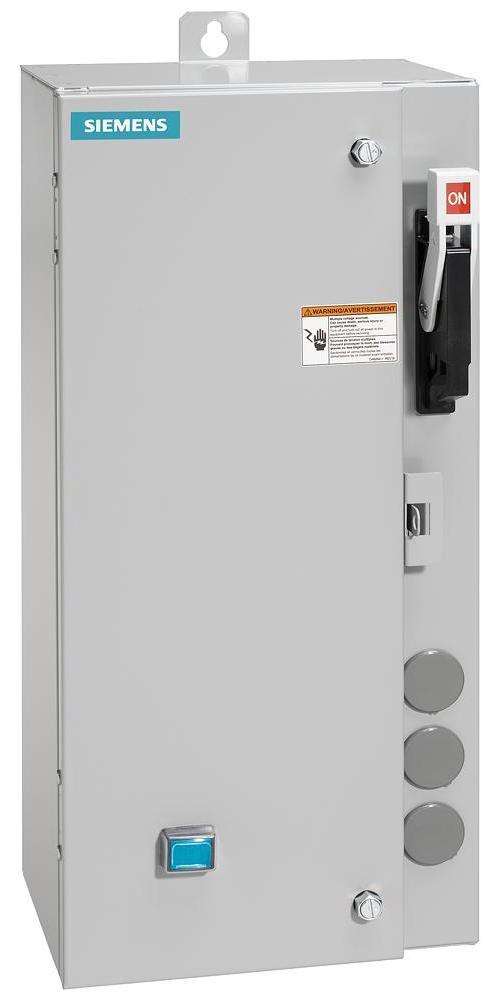

Image provided may only be a representation of
final product and may include optional equipment
18FUF92NF
Siemens 18FUF92NF Combination Starter
Part Number # 18FUF92NF
SKU # 2245158
Siemens 18FUF92NF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 18FUF92NF |
| SKU #: | 2245158 |
| Action: | Non-Reversing |
| Amperage Rating: | 45, 45 A |
| Auxiliary Contact Rating: | 1NO |
| Coil Voltage: | 110/120, 110/120 V AC, 110/120 VAC |
| Dimensions: | 24 in H x 11 in W x 8 in D |
| Enclosure Type: | NEMA 2/4/12, NEMA 4/12 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 25, 25 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -4 to 104, -4 to 104 deg F |
| Overload Relay: | Solid State, Solid-State |
| Phase: | 3, 3 ph |
| Reset Type: | Automatic/Manual/Remote |
| Type: | Heavy Duty |
| Connection type: | Box Lug/Threaded |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643821970 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 18FUF92NF Combination Starter
Brand: Siemens
Part Number: 18FUF92NF
Siemens Combination Starter, Heavy Duty, 600 VAC, 45 A, 50/60 Hz Frequency, 25 hp Motor, 110/120 VAC Coil, 3 Pole, Automatic/Manual/Remote Reset, 3 ph ph, Box Lug/Threaded Connection, Non-Reversing Action, Solid-State Overload Relay, 1NO Auxiliary, NEMA 2/4/12 Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 24 in H x 11 in W x 8 in D Dimensions
Additional Description: SIEM-18FUF92NF STARTER,COMBO SZ2,13-52AMPS,N12/3R,120V
Catalog Description: Non-reversing motor starter, Size 2, H2 Solid-state overload relay, OLR amp range 13-52A, 110V 50Hz / 120V 60Hz coil, Combination type, 50A circuit breaker, Enclosure NEMA type 4/12, Water/dust tight for outdoors, Standard width enclosure
18FUF92NF Application
Outdoor Applications18FUF92NF Item Features
- NEMA Size 2
SKU #2245158Part Number #18FUF92NFUNSPSC39121521UPC00662643821970
