Part Number # 18IUH92NF
SKU # 2211035
Image Disclaimers Message
18IUH92NF

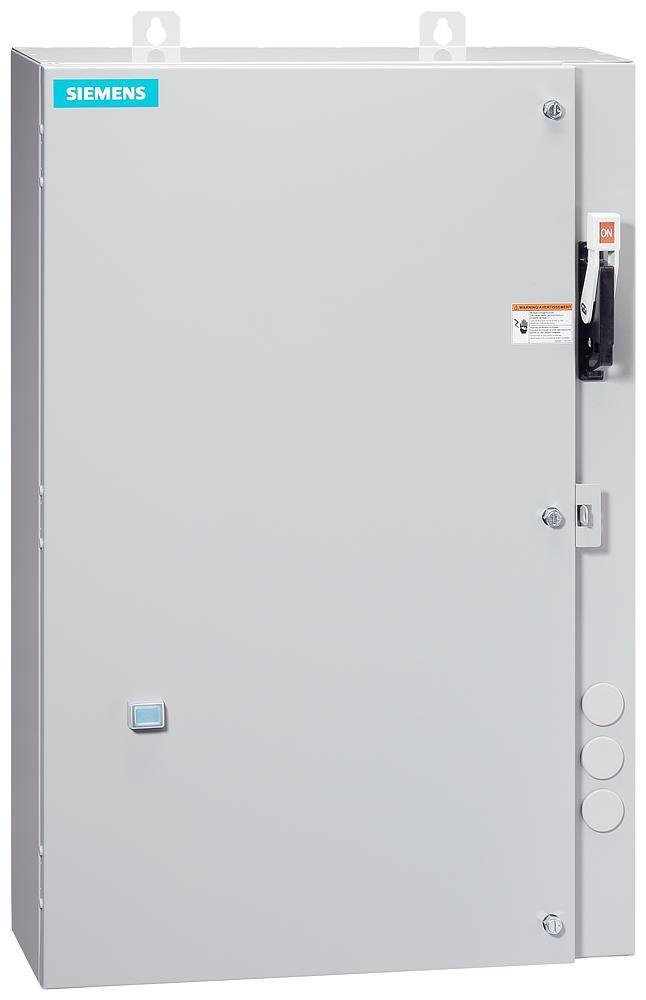

Siemens 18IUH92NF Combination Starter
Part Number # 18IUH92NF
SKU # 2211035
Siemens 18IUH92NF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 18IUH92NF |
| SKU #: | 2211035 |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110/120, 110/120 VAC |
| Dimensions: | 36 in H x 24 in W x 8 in D |
| Enclosure Type: | NEMA 12 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 30 hp, 40 hp, 75 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000, 5000000 Cycles |
| Operating Temperature: | -4 to 104, -4 to 104 deg F |
| Overload Relay: | Solid State, Solid-State |
| Reset Type: | Automatic/Manual/Remote |
| Setting: | 50 to 200, 50 to 200 A |
| Type: | SZ 3-1/2 Class 18 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof |
| Connection type: | Box Lug |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643823509 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 18IUH92NF Combination Starter
Brand: Siemens
Part Number: 18IUH92NF
Siemens Combination Starter, SZ 3-1/2 Class 18 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof, 575/600 VAC, 50/60 Hz Frequency, 30 hp, 40 hp, 75 hp Motor, 110/120 VAC Coil, 3 Pole, Setting: 50 to 200 A, Automatic/Manual/Remote Reset, Box Lug Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 12 Enclosure, 5000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 36 in H x 24 in W x 8 in D Dimensions
Additional Description: SIEM-18IUH92NF STARTER,COMBO SZ3 1/2,50-200AMPS,N12/3R, 1/2,50-200Amps,N12/3R
Catalog Description: Non-reversing motor starter, Size 3 1/2, H2 Solid-state overload relay, OLR amprange 50-200A, 110V 50Hz / 120V 60Hz coil, Combination type, 125A circuit breaker, Enclosure NEMA type 4/12, Water/dust tight for outdoors, Standard width enclosure
18IUH92NF Application
Industrial and Outdoor Applications18IUH92NF Item Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 30 hp at 200/208 VAC, 40 hp at 220/230 VAC, 75 hp at 460/480 VAC, 75 hp at 575/600 VAC
- Box lug line side/load side outgoing feeder connection
- 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
18IUH92NF Standards
UL File No. E185287|CSA File No. LR 6535SKU #2211035Part Number #18IUH92NFUNSPSC39121521UPC00662643823509
