Part Number # 1FT71055AB701CA0
SKU # 2464175
1FT71055AB701CA0
Siemens 1FT71055AB701CA0
Part Number # 1FT71055AB701CA0
SKU # 2464175
$9404.37 / Each
Typical price:$12659.74 / Each
Siemens 1FT71055AB701CA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 1FT71055AB701CA0 |
| SKU #: | 2464175 |
| Amperage Rating: | 13 A |
| Dimensions: | 196 mm W |
| Enclosure Type: | IP64 |
| Horsepower: | 8.85 hp |
| Series: | 1FT7 |
| Shaft Size: | 38 mm Dia x 100 mm H |
| Special Features: | Permanent Magnet Synchronous |
| Speed: | 1500 rpm |
| Temperature Rating (Degrees F): | 104 deg F |
| Torque Rating: | 42 N-m |
| Type: | Compact Natural Cooling |
| Country of origin: | DE |
| Insulation class: | Class F |
| Mounting type: | IM B5/IM V1/IM V3 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 26101109 |
| UPC: | 00804766361449 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9404.37 / Each
Typical price:$12659.74 / Each
Quantity:
- Siemens SIMOTICS S Servo Motor, Compact Natural Cooling, Series: 1FT7, Permanent Magnet Synchronous Special Features, 8.85 hp, 13 A, 1500 rpm Speed, IP64 Enclosure, 38 mm Dia x 100 mm H Shaft, 42 N-m Torque, IM B5/IM V1/IM V3 Mounting, 104 deg F, Insulation Class: Class F, 196 mm W Dimensions
1FT71055AB701CA0 Application
High Performance Machine Tools Machines with High Demands Placed on the Dynamic Response, Precision and Flexibility Packaging Machines, High Bay Racking Vehicles, Conveyor Systems, Handling Equipment and Printing Machines1FT71055AB701CA0 Item Features
- With recessed flange, AM24DQI encoder RJ45 signal connection, DRIVE-CLiQ interface
- With feather key and keyway shaft extension, tolerance N shaft and flange accuracy, without holding brake
- Excellent dynamic performance in a wide speed range thanks to high overload capability 4xM0 with natural cooling
- Wide speed setting range
- Outstanding resistance to vibratory and shock loads thanks to vibration isolated encoder mounting
- High degree of protection allows operation even under demanding ambient conditions
- Quick and easy mounting due to cross profile (up to SH 100) and rotatable connectors with quick release locks
- Zero backlash holding brake
- Extremely high efficiency
- S-1FT7 compact motors have a low torque ripple so that they are ideal for use in machine tool applications that require extremely high surface quality and optimum machining results
1FT71055AB701CA0 Standards
cULus Recognized|WEEE 2012/19/EU|EN 60034-1/60034-7/60034-5/60034-14|DIN 748-3|DIN 42955|IEC 60034-1/60034-7/60034-5/60072-1/60072-1/60034-14SKU #2464175Part Number #1FT71055AB701CA0UNSPSC26101109UPC00804766361449

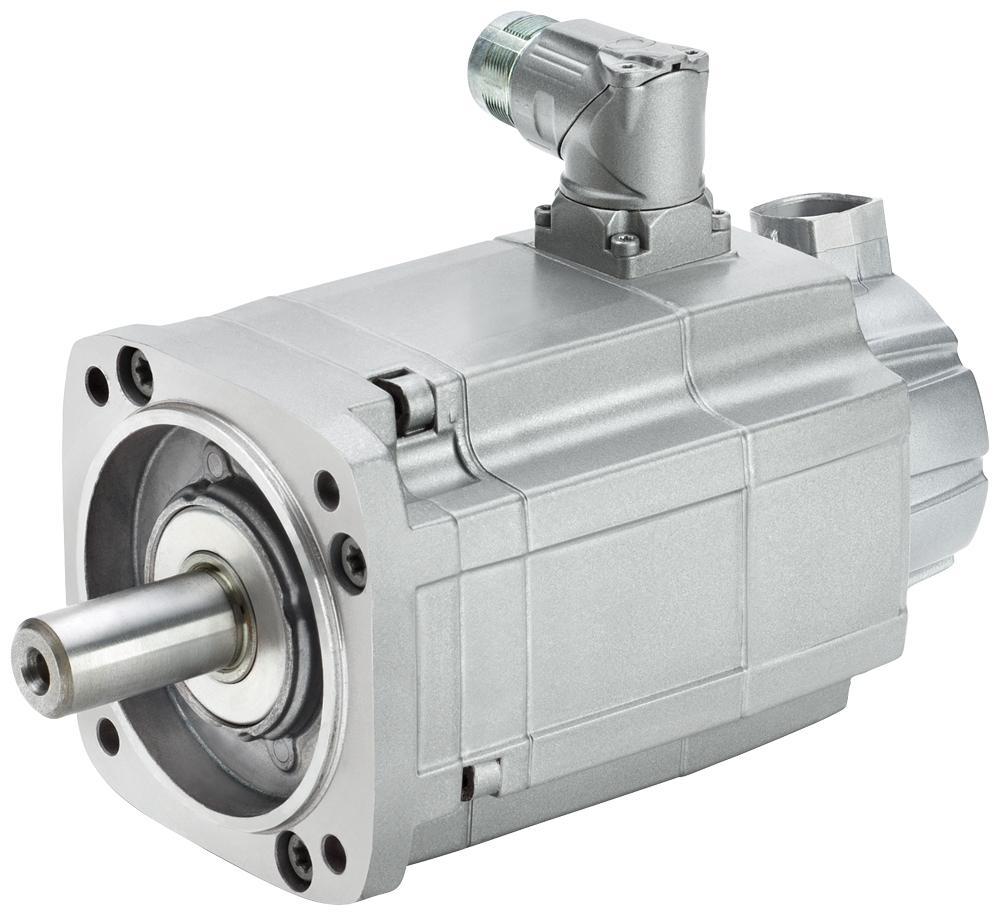

Image provided may only be a representation of final product and may include optional equipment
