Part Number # 1PH71352QF035KB0
SKU # 2465147
1PH71352QF035KB0
Siemens 1PH71352QF035KB0
Part Number # 1PH71352QF035KB0
SKU # 2465147
$29325.14 / Each
Siemens 1PH71352QF035KB0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 1PH71352QF035KB0 |
| SKU #: | 2465147 |
| Dimensions: | 10.94 in W |
| Frame: | 135 |
| Frequency Rating: | 51.1/59.5/67.8 Hz |
| Horsepower: | 24.8 hp, 28.8 hp, 32.2 hp |
| Series: | 1PH7 |
| Special Features: | Asynchronous |
| Torque Rating: | 115/117/118 N-m |
| Type: | Compact Forced Ventilated Cooling |
| Mounting type: | IM B35/IM V15/IM V36 |
| UNSPSC: | 26101114 |
| UPC: | 00887621004446 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$29325.14 / Each
Quantity:
- Siemens SINAMICS S Induction Motor, Compact Forced Ventilated Cooling, Series: 1PH7, Asynchronous Special Features, 24.8 hp, 28.8 hp, 32.2 hp, 400/480 V AC, 42 A, 51.1/59.5/67.8 Hz Frequency, 3 ph, 1500/1750/2000 rpm Speed, IP54/55 Enclosure, 135 Frame, 42 mm Dia x 132 mm H Shaft, Deep Groove Ball Bearing, 115/117/118 N-m Torque, IM B35/IM V15/IM V36 Mounting, -15 to 40 deg C, Insulation Class: Class F, 10.94 in W Dimensions
1PH71352QF035KB0 Application
Crane Systems, Printing Industry, Rubber, Plastic, Wire, Glass Manufacturing, General Applications such as Coilers and Winder Drives1PH71352QF035KB0 Item Features
- With 3-phase 400/480 VAC 50/60 Hz external fan unit, heavy gauge threaded cable entry in terminal box
- With 22-bit incremental encoder, DRIVE-CLiQ interface
- Cable entry direction top of the terminal box from right
- With 24 VDC holding brake, emergency stop function
- Coupling and belt drive, N vibration severity grade, N shaft and flange accuracy
- With fitted key shaft extension, half feather key balancing, NDE to de direction of air flow
- Without paint finish
- 1500 rpm, 24.8 hp, 118 N-m, 51.1 Hz, 42 A at 400 VAC servo control
- 1750 rpm, 28.8 hp, 117 N-m, 59.5 Hz, 42 A at 400 VAC vector control
- 2000 rpm, 32.2 hp, 115 N-m, 67.8 Hz, 42 A at 480 VAC servo/vector control
- High degree of protection
- Wide speed control ranges
- Speed down to zero without reducing the torque
- Robustness
- Essentially maintenance-free
- High cantilever force loading
- High rotational accuracy, even at the lowest speeds
- Integrated encoder system to sense the motor speed, connected using a connector or DRIVE-CLiQ
- Terminal box to connect-up the power cable
- Motor temperature monitoring with KTY 84
SKU #2465147Part Number #1PH71352QF035KB0UNSPSC26101114UPC00887621004446

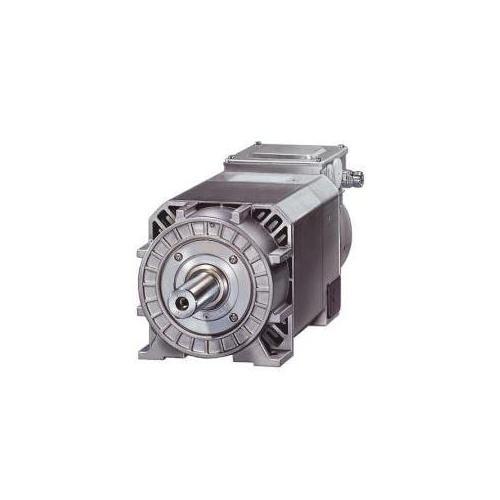

Image provided may only be a representation of final product and may include optional equipment
