Part Number # 22DUD32AFE6
SKU # 2448553

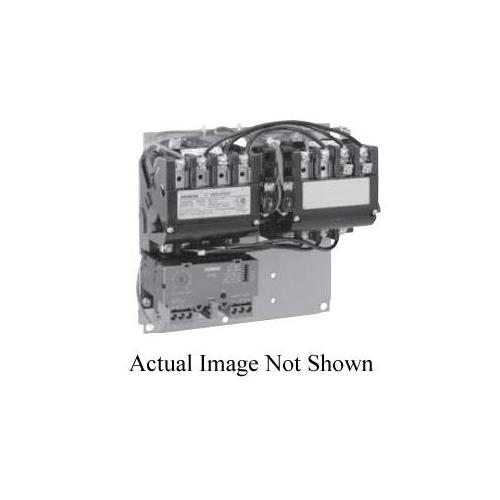

Image Disclaimers Message
22DUD32AFE6
Siemens 22DUD32AFE6
Part Number # 22DUD32AFE6
SKU # 2448553
Siemens 22DUD32AFE6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 22DUD32AFE6 |
| SKU #: | 2448553 |
| Amperage Rating: | 5.5 to 22 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110/120 VAC |
| Dimensions: | 7.69 in H x 10.5 in W x 3.92 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 3 hp, 10 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -4 to 104 deg F |
| Overload Relay: | Solid-State |
| Reset Type: | Automatic/Manual/Remote |
| Type: | SZ 1 Class 22 Full Voltage Heavy Duty Non-Combination Reversing |
| Connection type: | Screw |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643355710 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 22DUD32AFE6
Brand: Siemens
Part Number: 22DUD32AFE6
Siemens NEMA Motor Starter, SZ 1 Class 22 Full Voltage Heavy Duty Non-Combination Reversing, 575/600 VAC, 5.5 to 22 A, 50/60 Hz Frequency, 3 hp, 10 hp Motor, 110/120 VAC Coil, 3 Pole, Automatic/Manual/Remote Reset, Screw Connection, Solid State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, Open Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 7.69 in H x 10.5 in W x 3.92 in D Dimensions
Additional Description: SIEM-22DUD32AFE6 STARTER,FVR SZ1,5.5-22AMPS,OPEN,120V
Catalog Description: Reversing motor starter Size 1 Three phase full voltage Solid-state overload relay OLR amp range 5.5-22A 110VAC 50Hz / 120VAC 60Hz Coil Non-combination type Enclosure type (open)
22DUD32AFE6 Application
For across the line starting of 1-phase and polyphase motors, applications requiring dependability and durability, use with machine tools, air conditioning equipment, material handling equipment, compressors, hoists and various production and industrial equipment as well as in demanding automotive applications22DUD32AFE6 Item Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Easy coil access
- Overload test feature
- Straight-thru wiring
- Gravity dropout
- Large silver cadmium contacts
- 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
- 3 hp at 200/208 VAC, 220/230 VAC, 10 hp at 460/480 VAC, 575/600 VAC motor power
- Screw terminal lug line side/load side outgoing feeder connection
22DUD32AFE6 Standards
UL File No. E14900|CSA File No. LR 6535SKU #2448553Part Number #22DUD32AFE6UNSPSC39121521UPC00662643355710
