Part Number # 30DUCC32A1HA
SKU # 2404028
30DUCC32A1HA
Siemens 30DUCC32A1HA Motor Starter
Part Number # 30DUCC32A1HA
SKU # 2404028
Siemens 30DUCC32A1HA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 30DUCC32A1HA |
| SKU #: | 2404028 |
| Amperage Rating: | 27 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110/120/220/240 V AC, 110/120/220/240 VAC |
| Dimensions: | 10.5 in W x 3.92 in D x 7.69 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Full Load Current: | 3 to 12 A Low Speed, High Speed |
| Motor Power: | 5 hp at 200/208/220/230 VAC, 7-1/2 hp at 460/480/575/600 VAC |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -4 to 104 deg F |
| Overload Relay: | Solid-State |
| Phase: | 3, 3 ph |
| Reset Type: | Automatic/Manual/Remote |
| Timing: | 19 to 29 ms On/10 to 24 ms Off |
| Type: | Heavy Duty 2-Speed 2-Winding |
| Wattage: | 8.6 W |
| Connection type: | Screw Terminal |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00783087985360 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 30DUCC32A1HA Motor Starter
Brand: Siemens
Part Number: 30DUCC32A1HA
Siemens Motor Starter, Heavy Duty 2-Speed 2-Winding, 600 VAC, 27 A, 60 Hz Frequency, 8.6 W Wattage, 5 hp at 200/208/220/230 VAC, 7-1/2 hp at 460/480/575/600 VAC Motor, 110/120/220/240 VAC Coil, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph ph, Screw Terminal Connection, Solid-State Overload Relay, 3 to 12 A Low Speed, High Speed Full Load, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, Open Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 10.5 in W
Additional Description: SIEM-30DUCC32A1HA STARTER,2SPD SZ1,3-12AMPS,OPEN,120/240V
Catalog Description: 2-speed 3-phase motor starter, Size 1, Two separate windings, Constant horsepower, Solid-state overload relays, Low Spd OLR range 3-12A, High Spd OLR range 3-12A, 110 120/220 240VAC 60Hz coil, Enclosure NEMA type (open), No enclosure
30DUCC32A1HA Item Features
- Constant horsepower
- NEMA controller size 1
SKU #2404028Part Number #30DUCC32A1HAUNSPSC39121521UPC00783087985360

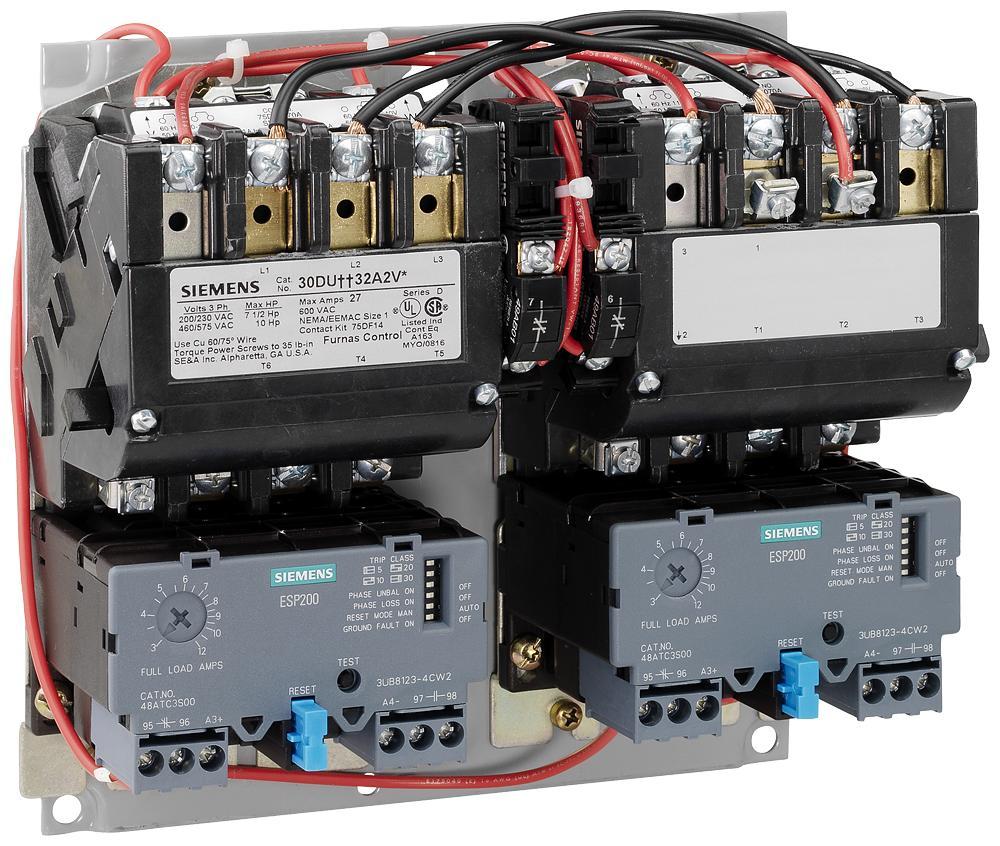

Image provided may only be a representation of final product and may include optional equipment
