Part Number # 3LD2054-0TK51
SKU # 2401798
3LD2054-0TK51

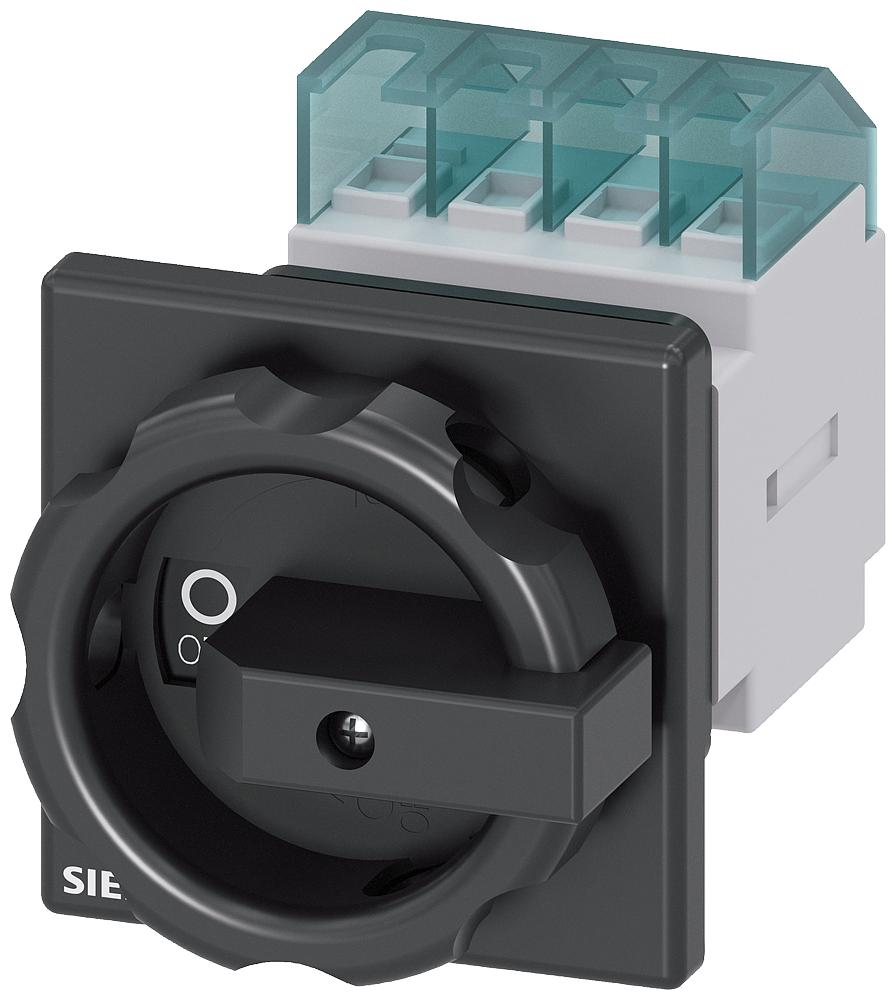

Siemens 3LD2054-0TK51 Sentron Disconnect Switch
Part Number # 3LD2054-0TK51
SKU # 2401798
Siemens 3LD2054-0TK51 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3LD2054-0TK51 |
| SKU #: | 2401798 |
| Actuator Type: | Rotary |
| Amperage Rating: | 16 A |
| Dimensions: | 84 mm H x 67 mm W x 116.5 mm D |
| Enclosure Type: | IP65 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Series: | 3LD |
| Short Circuit Current Rating (kA): | 50 kA |
| Temperature Rating (Degrees F): | -20 to 120 deg F |
| Terminal Type: | Box |
| Country of origin: | DE |
| Mounting type: | Fixed/Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122233 |
| UPC: | 00040892815658 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3LD2054-0TK51 Sentron Disconnect Switch
Brand: Siemens
Part Number: 3LD2054-0TK51
Sentron Disconnect Switch, Series: 3LD, 690 VAC, 16 A, 50/60 Hz Frequency, 3 Pole, 50 kA Short Circuit, Rotary Actuator, IP65 Enclosure, Fixed/Surface Mounting, Box Terminal, -20 to 120 deg F, 84 mm H x 67 mm W x 116.5 mm D Dimensions, Black Handle
Additional Description: SIEM-3LD2054-0TK51 (N) DISC SW 16A ROT HDL 1HOLE BLK 3P NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SENTRON, 3LD switch disconnector, main switch, 3- pole, Iu 16 A, Operational power / at AC-23 A at 400 V 7,5 kW, front-mounted, rotary operating mechanism, black, center mounting 22.5 mm of handle
3LD2054-0TK51 Application
For switching main and auxiliary circuits, also for switching induction motors and other loads during maintenance and repair work3LD2054-0TK51 Item Features
- 3LD2 type switches are pad lockable in the OFF position
- For OEM disconnects
3LD2054-0TK51 Standards
ULSKU #2401798Part Number #3LD2054-0TK51UNSPSC39122233UPC00040892815658
Image provided may only be a representation of final product and may include optional equipment
