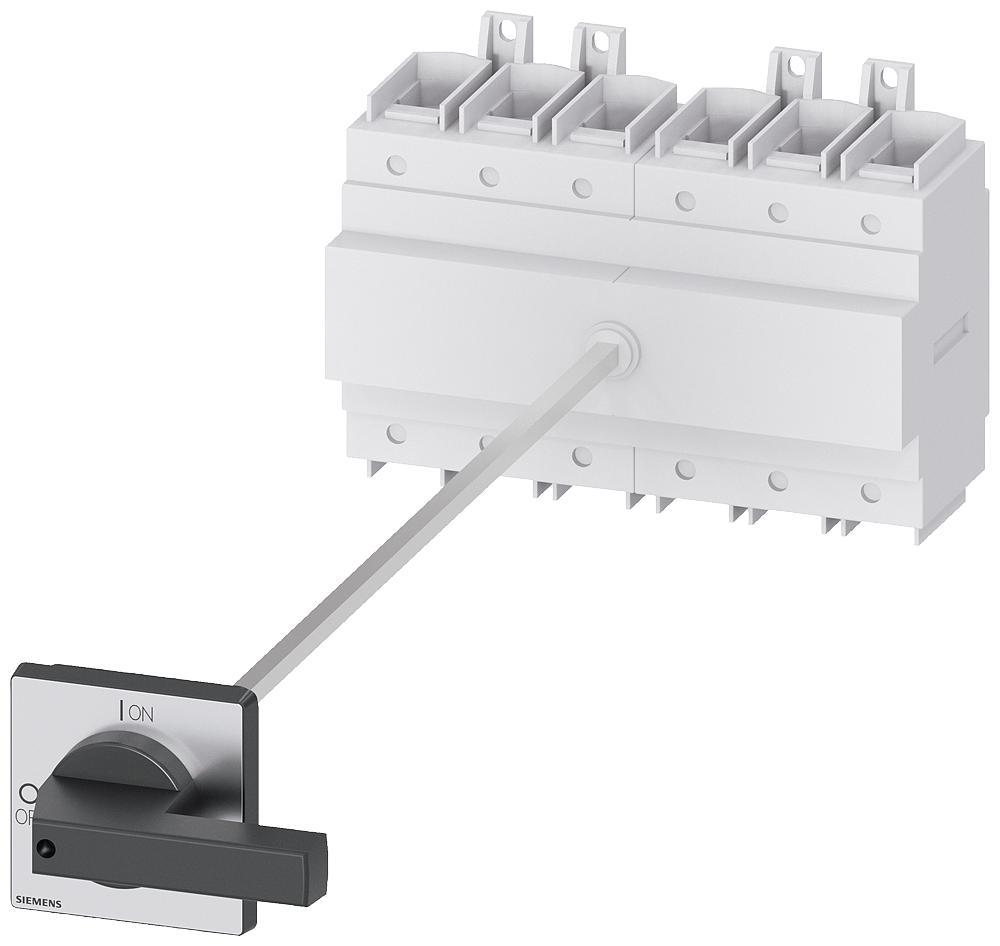

Siemens 3LD2318-3VK11 Sentron Switch Disconnector
Image Disclaimers Message
Siemens 3LD2318-3VK11 Sentron Switch Disconnector
Siemens 3LD2318-3VK11 Sentron Switch Disconnector
Part #:3LD2318-3VK11
SKU #: 2399658
Key Features
Part #:3LD2318-3VK11
SKU #: 2399658
Brand: Siemens
Actuator Type: Door Coupling Rotary Operating Handle/Knob/Selector Switch
Amperage Rating: 160 A
Dimensions: 224 mm W x 106 mm D x 168 mm H
Enclosure Type: NEMA 1/3R/4X/12/IP65
Frequency Rating: 50/60 Hz
- Switch specially designed and tested for use with frequency converters
- Type tested combination of Sinamics frequency converters and 3LD2
- Isolated PE from cable shield
- Padlockable in off and on
- Minimum leading auxiliary switch of 20 to 50 ms which shuts down frequency converter
- Without auxiliary switch
- 75 hp at 480 VAC/50 hp at 600 VAC
- 10 kA short time withstand current/50 kA conditional short circuit current
Siemens 3LD2318-3VK11 Sentron Switch Disconnector
Sentron Switch Disconnector, Series: 3LD2, 600 VAC, 160 A, 75/50 hp, 50/60 Hz Frequency, 6 Pole, 10/50 kA Short Circuit, Door Coupling Rotary Operating Handle/Knob/Selector Switch Actuator, NEMA 1/3R/4X/12/IP65 Enclosure, 4-Hole/Front/Floor/Fixed Mounting, Box Terminal, -25 to 55 deg C, 224 mm W x 106 mm D x 168 mm H, Black
Additional Description: SIEM-3LD2318-3VK11 (N) 3LD SWITCH DISCONNECTOR, MAIN SWITCH switch NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SENTRON, Switch disconnector3LD, main switch, 6-pole, Iu 160 A, Operating power/ atAC-23 A at 400 V 75 kW, floormounting with door coupling,knob-operated mechanism, black,4-hole mounting of the handle
