Part Number # 3LD25140TK51
SKU # 2189575
3LD25140TK51

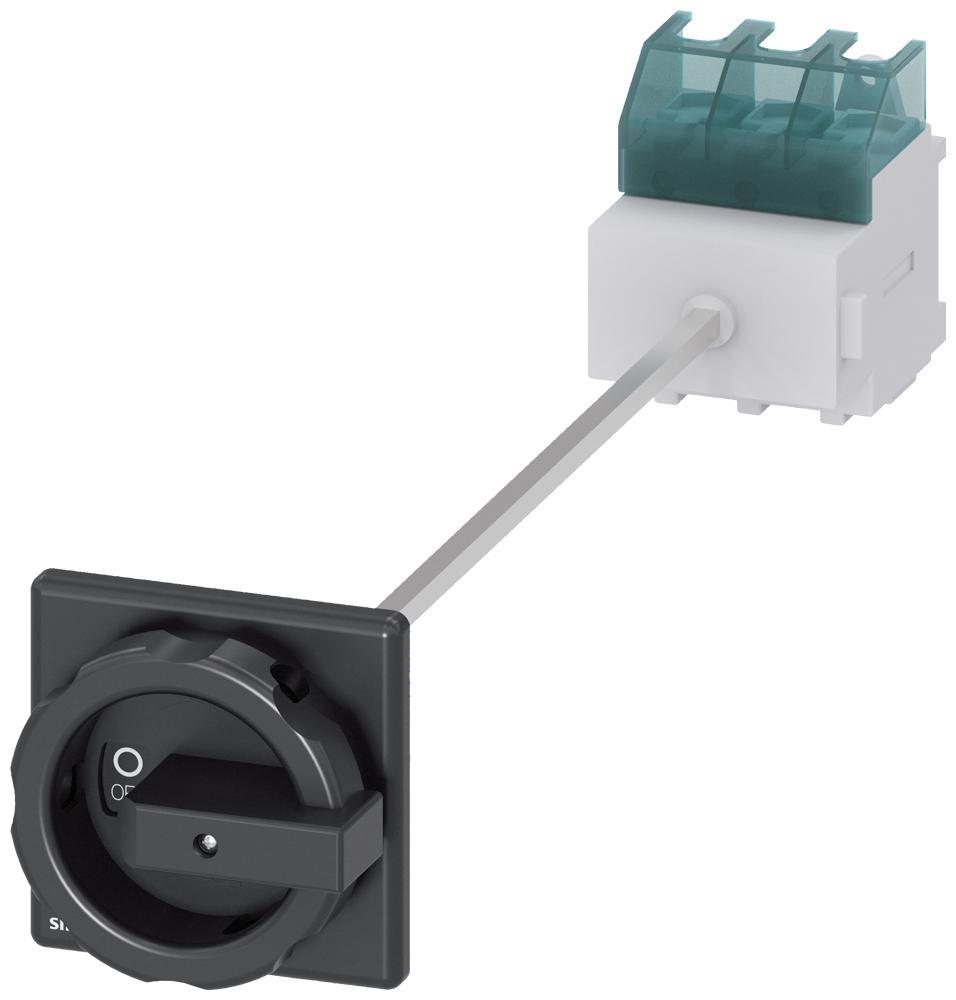

Siemens 3LD25140TK51 Sentron Sentron Disconnect Switch
Part Number # 3LD25140TK51
SKU # 2189575
Siemens 3LD25140TK51 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3LD25140TK51 |
| SKU #: | 2189575 |
| Actuator Type: | Rotary, Rotary Knob |
| Amperage Rating: | 63, 63 A |
| Dimensions: | 106 mm H x 90 mm W x 468.5 mm D, 90 mm W x 468.5 mm D x 106 mm H |
| Enclosure Type: | IP65 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | 3LD |
| Short Circuit Current Rating (kA): | 50, 50 kA |
| Temperature Rating (Degrees F): | -20 to 120, -20 to 120 deg F |
| Terminal Type: | Box |
| Country of origin: | DE |
| Mounting type: | 4-Hole/Front |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122233 |
| UPC: | 00754554733845 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3LD25140TK51 Sentron Sentron Disconnect Switch
Brand: Siemens
Part Number: 3LD25140TK51
Sentron Sentron Disconnect Switch, Series: 3LD, 690 VAC, 63 A, 50/60 Hz, 3 Pole, 50 kA Short Circuit Current Rating, Rotary Knob Actuator, IP65, 4-Hole/Front Mount, Box Terminal, -20 to 120 deg F, 90 mm W x 468.5 mm D x 106 mm H, Black Handle
Additional Description: SIEM-3LD2514-0TK51 DISC SW 63A DOOR ROT HDL 4HOLE BLK 3P DISCONNECT SWITCH,
Catalog Description: SENTRON, 3LD switch disconnector, main switch, 3- pole, Iu 63 A, Operational power / at AC-23 A at 400 V 22 kW, floor mounting with door coupling, rotary operating mechanism, black, 4- hole mounting of the handle
3LD25140TK51 Application
For switching main and auxiliary circuits, also for switching induction motors and other loads during maintenance and repair work and indoor applications3LD25140TK51 Item Features
- 3LD2 type switches are pad lockable in the OFF position
- For OEM disconnects
3LD25140TK51 Standards
ULSKU #2189575Part Number #3LD25140TK51UNSPSC39122233UPC00754554733845
Image provided may only be a representation of final product and may include optional equipment
