Part Number # 3LD2730-0TK11
SKU # 2458935
3LD2730-0TK11
Siemens 3LD2730-0TK11
Part Number # 3LD2730-0TK11
SKU # 2458935
$412.71 / Each
Typical price:$540.00 / Each
Siemens 3LD2730-0TK11 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3LD2730-0TK11 |
| SKU #: | 2458935 |
| Actuator Type: | Rotary Knob |
| Amperage Rating: | 100 A |
| Dimensions: | 4 x 3 x 4 in |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Series: | 3LD |
| Short Circuit Current Rating (kA): | 50 kA |
| Temperature Rating (Degrees F): | -20 to 120 deg F |
| Terminal Type: | Box |
| Country of origin: | DE |
| Mounting type: | 2-Hole/DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122233 |
| UPC: | 00754554732862 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$412.71 / Each
Typical price:$540.00 / Each
Quantity:

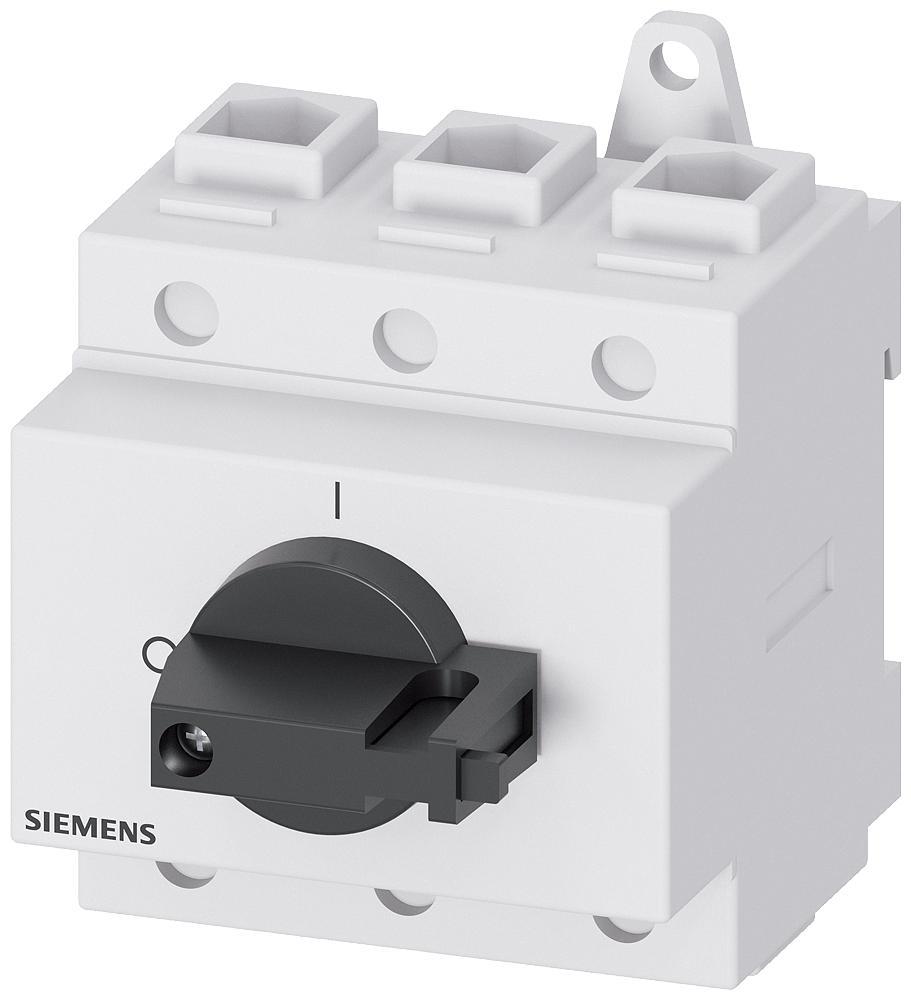

- Siemens Disconnect Switch, Series: 3LD, 690 V AC, 100 A, 50/60 Hz, 3 Pole, 50 kA Short Circuit Current Rating, Rotary Knob Actuator, IP40, 2-Hole/DIN Rail Mount, Box Terminal, -20 to 120 deg F, 4 x 3 x 4 in, Black Handle
3LD2730-0TK11 Application
For switching main and auxiliary circuits, also for switching induction motors and other loads during maintenance and repair work and indoor applications3LD2730-0TK11 Item Features
- 3LD2 type switches are pad lockable in the OFF position
- For OEM disconnects
3LD2730-0TK11 Standards
ULSKU #2458935Part Number #3LD2730-0TK11UNSPSC39122233UPC00754554732862
Image provided may only be a representation of final product and may include optional equipment
