Part Number # 3LD2866-0TB53-0US2
SKU # 2385618
3LD2866-0TB53-0US2

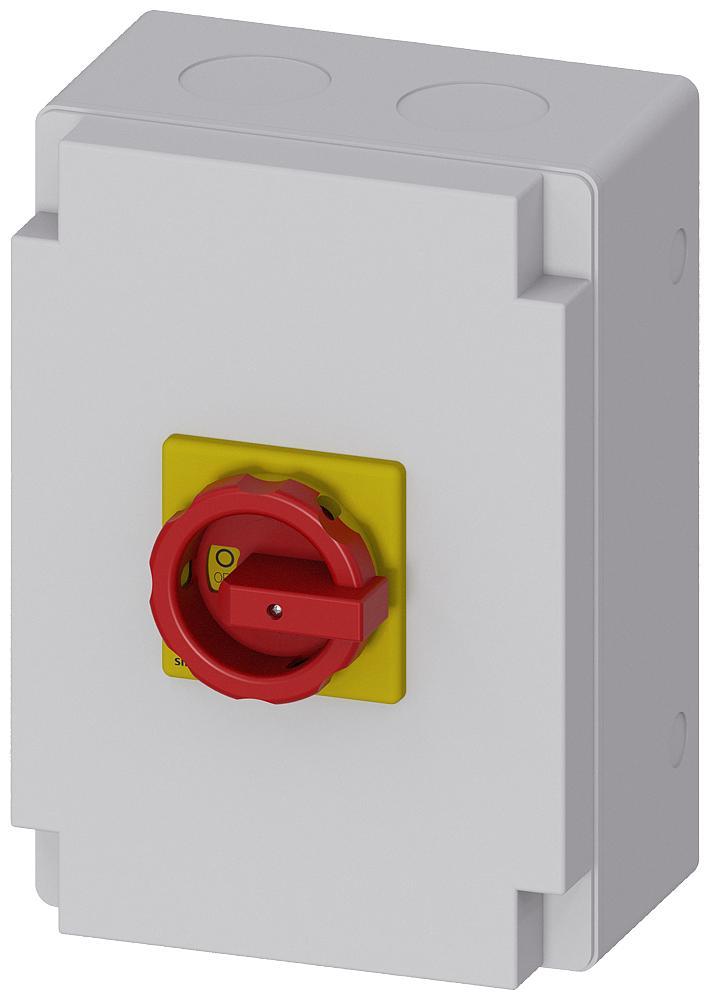

Siemens 3LD2866-0TB53-0US2 Sentron Main Switch Disconnector
Part Number # 3LD2866-0TB53-0US2
SKU # 2385618
Siemens 3LD2866-0TB53-0US2 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3LD2866-0TB53-0US2 |
| SKU #: | 2385618 |
| Actuator Type: | Short Rotary Knob |
| Amperage Rating: | 125 A |
| Contact Form: | 1NC-1NO, 1NO-1NC 1 Form A/1 Form B |
| Enclosure Type: | IP65 |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 40 hp at 240 VAC, 75 hp at 480 VAC, 100 hp at 600 VAC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3LD |
| Short Circuit Current Rating (kA): | 2000 A |
| Temperature Rating (Degrees F): | -20 to 120 deg F |
| Terminal Type: | Box |
| Type: | Type OEM Emergency-Stop |
| Country of origin: | DE |
| Material: | Molded Plastic |
| Mounting type: | Centre Hole/Fixed |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122233 |
| UPC: | 00783643975477 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3LD2866-0TB53-0US2 Sentron Main Switch Disconnector
Brand: Siemens
Part Number: 3LD2866-0TB53-0US2
Siemens Sentron Main Switch Disconnector, Type OEM Emergency-Stop, Series: 3LD, 690 VAC, 125 A, 40 hp at 240 VAC, 75 hp at 480 VAC, 100 hp at 600 VAC, 3, 50/60 Hz, 3 Pole, 2000 A Short Circuit Current Rating, 1NC-1NO, Short Rotary Knob Actuator, IP65 Enclosure, Centre Hole/Fixed Mount, Box Terminal, -20 to 120 deg F, Molded Plastic, Red/Yellow Handle
Additional Description: SIEM-3LD2866-0TB53-0US2 DISC SW 125A N4X SCW ROT HDL R/Y 3P
Catalog Description: SENTRON, 3LD switch disconnector, EMERGENCY-STOP switch, 3-pole, Iu 125 A, Operational power / at AC-23 A at 400 V 45 kW, molded- plastic enclosure for inch threaded joint, rotary operating mechanism, red/yellow
3LD2866-0TB53-0US2 Application
Indoor Applications3LD2866-0TB53-0US2 Standards
ULSKU #2385618Part Number #3LD2866-0TB53-0US2UNSPSC39122233UPC00783643975477
Image provided may only be a representation of final product and may include optional equipment
