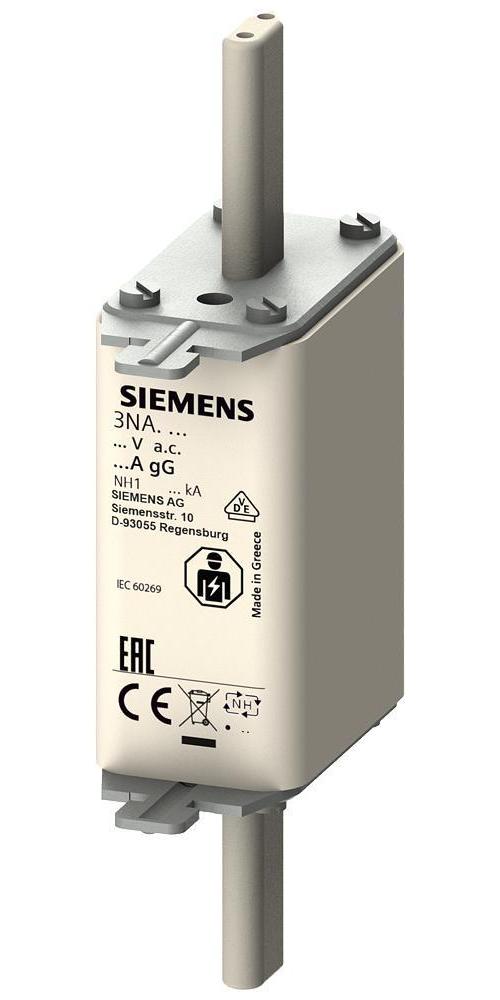

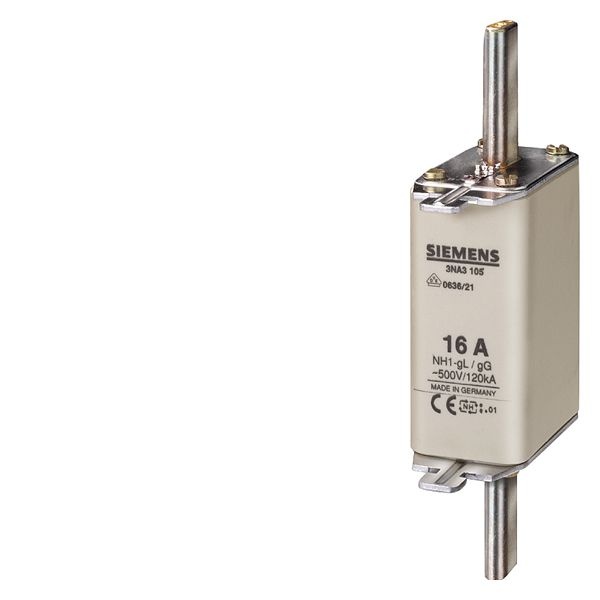

Image provided may only be a representation of
final product and may include optional equipment
3NA3132
Siemens 3NA3132 Sentron Low Voltage Fuse Link
Part Number # 3NA3132
SKU # 2217656
Siemens 3NA3132 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3NA3132 |
| SKU #: | 2217656 |
| Amperage Rating: | 125 A |
| Dimensions: | 134 mm L x 63.9 mm W x 30 mm D |
| Rated Breaking Capacity: | 120, 120 kA |
| Temperature Rating (Degrees F): | -20 to 50, -20 to 50 deg C |
| Type: | HRC Design |
| Country of origin: | DE |
| Material: | Ceramic |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121626 |
| UPC: | 00754554152127 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3NA3132 Sentron Low Voltage Fuse Link
Brand: Siemens
Part Number: 3NA3132
Sentron Low Voltage Fuse Link, HRC Design, 500 VAC, 125 A, Rated Breaking Capacity: 120 kA, -20 to 50 deg C Temperature Rating, Ceramic Material, 134 mm L x 63.9 mm W x 30 mm D Dimensions
Additional Description: SIEM-3NA3132 (N) FUSE LINK,LV HRC,125A,500VAC,440VDC HRC,125A,500VAC,440VDC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: LV HRC fuse link, NH1, In 125 A, gG, Un AC 500 V, Un DC 440 V, Front indicator,non- insulated grip lugs
3NA3132 Application
For protection applications3NA3132 Item Features
- Fuse links with combination alarm signal the tripping of a fuse by a clear color change from red to white, enables fast identification and replacement of the tripped fuselinks
- Insulated grip lugs made of metal are integrated in the top and bottom covers of the fuse link in molded plastic and provide greater safety during replacement
- Standard series with front indicator, the front-mounted red indicator signals the tripping of a fuse
- LV HRC fuse links are always equipped with silver plated contact pins, ensures the long term operational safety of the plant, non-corroding and have less contact resistance
- Class gG, Size NH1
- Non-insulated grip lugs
- Front indicator
3NA3132 Standards
IEC 60269-2/IEC 60269-4SKU #2217656Part Number #3NA3132UNSPSC39121626UPC00754554152127
