Siemens 3NA3682 Sentron Low Voltage Fuse Link
Part Number # 3NA3682
SKU # 2273351
Siemens 3NA3682 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3NA3682 |
| SKU #: | 2273351 |
| Dimensions: | 201 mm L x 115 mm W x 102 mm D |
| UNSPSC: | 39121626 |
| UPC: | 00754554766201 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3NA3682 Sentron Low Voltage Fuse Link
Brand: Siemens
Part Number: 3NA3682
Sentron Low Voltage Fuse Link, HRC Design, 500 VAC, 1250 A, Rated Breaking Capacity: 120 kA, -20 to 50 deg C Temperature Rating, Ceramic Material, 201 mm L x 115 mm W x 102 mm D Dimensions
Additional Description: SIEM-3NA3682 (N) LV HRC FUSE LINK GL/GG 4A,1250A,GRIP LUG NON-CANCELABLE, NON-RETURNABLE
Catalog Description: LV HRC FUSE LINK GL/GG 4A,1250A,GRIP LUG SIZE 4A, 1250A, AC 500V/DC 440V WITH FRONT INDICATOR WITH NON-INSULATED GRIP LUGS LV HRC FUSE LINK GL/GG
3NA3682 Application
For protection applications3NA3682 Item Features
- Fuse links with combination alarm signal the tripping of a fuse by a clear color change from red to white, enables fast identification and replacement of the tripped fuselinks
- Insulated grip lugs made of metal are integrated in the top and bottom covers of the fuse link in molded plastic and provide greater safety during replacement
- Standard series with front indicator, the front-mounted red indicator signals the tripping of a fuse
- LV HRC fuse links are always equipped with silver plated contact pins, ensures the long term operational safety of the plant, non-corroding and have less contact resistance
- Class gG, Size NH4a
- Non-insulated grip lugs
- Front indicator
3NA3682 Standards
IEC 60269-2/IEC 60269-4SKU #2273351Part Number #3NA3682UNSPSC39121626UPC00754554766201

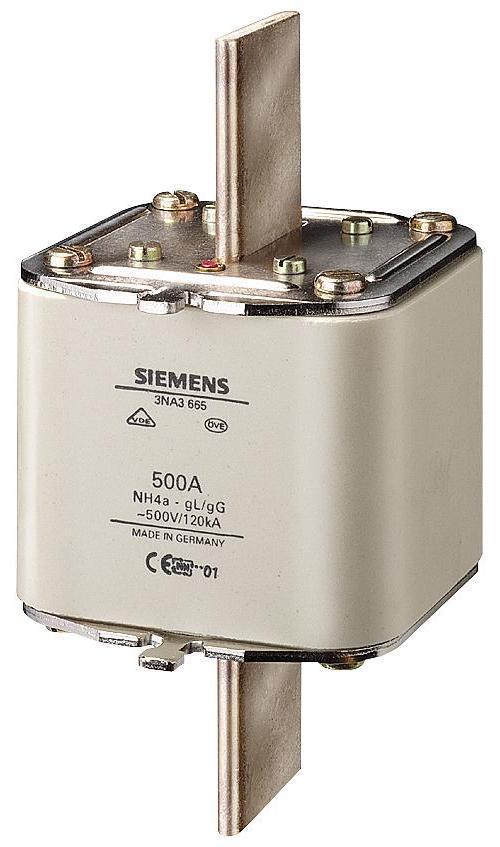

Image provided may only be a representation of final product and may include optional equipment
