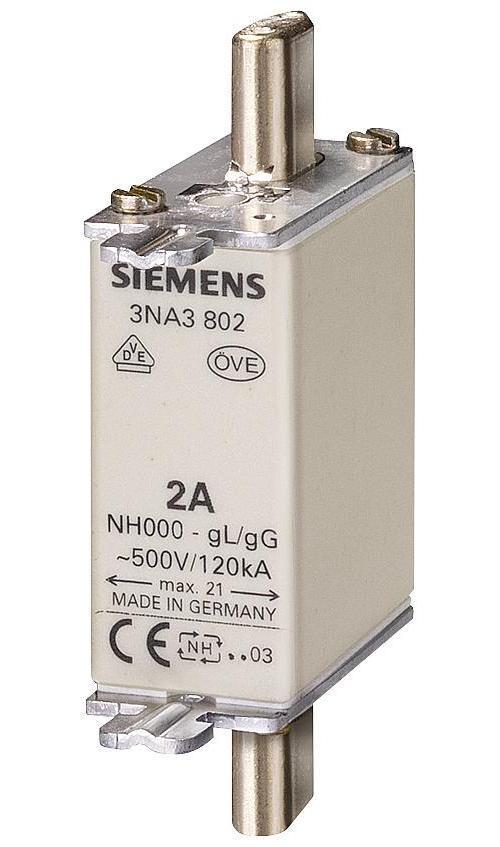

Image provided may only be a representation of
final product and may include optional equipment
3NA3810
Siemens 3NA3810 Sentron Low Voltage Fuse Link
Part Number # 3NA3810
SKU # 2156512
Siemens 3NA3810 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3NA3810 |
| SKU #: | 2156512 |
| Amperage Rating: | 25, 25 A |
| Dimensions: | 77.8 mm L x 52.5 mm W x 21 mm D |
| Rated Breaking Capacity: | 120, 120 kA |
| Temperature Rating (Degrees F): | -20 to 50, -20 to 50 deg C |
| Type: | HRC Design |
| Country of origin: | DE |
| Material: | Ceramic |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121626 |
| UPC: | 00754554152455 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3NA3810 Sentron Low Voltage Fuse Link
Brand: Siemens
Part Number: 3NA3810
Sentron Low Voltage Fuse Link, HRC Design, 500 VAC, 25 A, Rated Breaking Capacity: 120 kA, -20 to 50 deg C Temperature Rating, Ceramic Material, 77.8 mm L x 52.5 mm W x 21 mm D Dimensions
Additional Description: SIEM-3NA3810 (D)(N) FUSE LINK,LV HRC,25A,500VAC,250VDC HRC,25A,500VAC,250VDC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: FUSE LINK,LV HRC,25A,500VAC,250VDC SIZE 000, 25A, AC 500V/DC 250V WITH FRONT INDICATOR WITH NON-INSULATED GRIP LUGS LV HRC FUSE LINK GL/GG
3NA3810 Application
For supplementary protection3NA3810 Item Features
- Non-insulated grip lugs
- Combination alarm and color change signal
- Fuse links with combination alarm signal the tripping of a fuse by a clear color change from red to white, enables fast identification and replacement of the tripped fuselinks
- Insulated grip lugs made of metal are integrated in the top and bottom covers of the fuse link in molded plastic and provide greater safety during replacement
- Standard series with front indicator, the front-mounted red indicator signals the tripping of a fuse
- LV HRC fuse links are always equipped with silver plated contact pins, ensures the long term operational safety of the plant, non-corroding and have less contact resistance
- Class gG, Size NH000
3NA3810 Standards
VDE, GL, KEMA, GOST, CCCSKU #2156512Part Number #3NA3810UNSPSC39121626UPC00754554152455
