Siemens 3NA7822 Sentron Low Voltage Fuse Link
Part Number # 3NA7822
SKU # 2253255
Siemens 3NA7822 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3NA7822 |
| SKU #: | 2253255 |
| UNSPSC: | 39121626 |
| UPC: | 00754554881430 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3NA7822 Sentron Low Voltage Fuse Link
Brand: Siemens
Part Number: 3NA7822
Sentron Low Voltage Fuse Link, HRC Design, 500 VAC, 63 A, Rated Breaking Capacity: 120 kA, -20 to 50 deg C Temperature Rating, Ceramic Material, 77.8 mm L x 52.5 mm W x 21 mm D Dimensions
Additional Description: SIEM-3NA7822 (N) FUSE,LV HRC,SIZE 00,63A,500V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: FUSE,LV HRC,SIZE 00,63A,500V SIZE 000, 63A, AC 500V/DC 250V WITH COMBINATION INDICATOR WITH NON-INSULATED GRIP LUGS LV HRC FUSE LINK GL/GG
3NA7822 Application
For supplementary protection3NA7822 Item Features
- Fuse links with combination alarm signal the tripping of a fuse by a clear color change from red to white, enables fast identification and replacement of the tripped fuselinks
- Insulated grip lugs made of metal are integrated in the top and bottom covers of the fuse link in molded plastic and provide greater safety during replacement
- Standard series with front indicator, the front-mounted red indicator signals the tripping of a fuse
- LV HRC fuse links are always equipped with silver plated contact pins, ensures the long term operational safety of the plant, non-corroding and have less contact resistance
- Class gG, Size NH000
- Non-insulated grip lugs
3NA7822 Standards
IEC 60269-2/IEC 60269-4SKU #2253255Part Number #3NA7822UNSPSC39121626UPC00754554881430

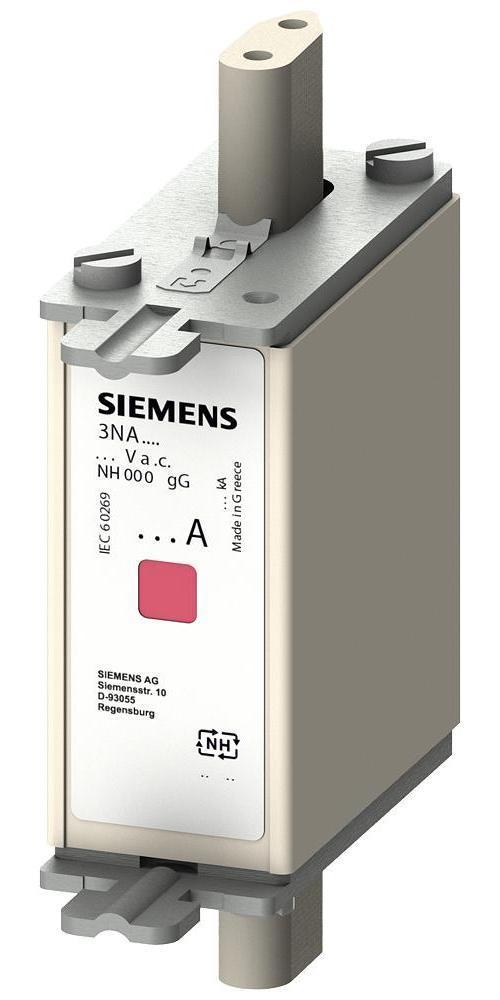

Image provided may only be a representation of final product and may include optional equipment
