Part #:3NE1224-0
SKU #: 2332425
$408.51/3EA
Key Features
Part #:3NE1224-0
SKU #: 2332425
Brand: Siemens
Amperage Rating: 160, 160 A
Dimensions: 135 mm L x 63.5 mm W x 52 mm D
Rated Breaking Capacity: 100, 100 kA
Suitable For Use With: SITOR Semiconductor Fuse System
Temperature Rating (Degrees F): -20 to 50, -20 to 50 deg C
$408.51/3EA
- Class gS, Size NH1
Specifications
Brand: Siemens
Amperage Rating: 160, 160 A
Dimensions: 135 mm L x 63.5 mm W x 52 mm D
Rated Breaking Capacity: 100, 100 kA
Suitable For Use With: SITOR Semiconductor Fuse System
Temperature Rating (Degrees F): -20 to 50, -20 to 50 deg C
Voltage Rating: 690, 690 VAC
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121626
UPC: 00662643083996

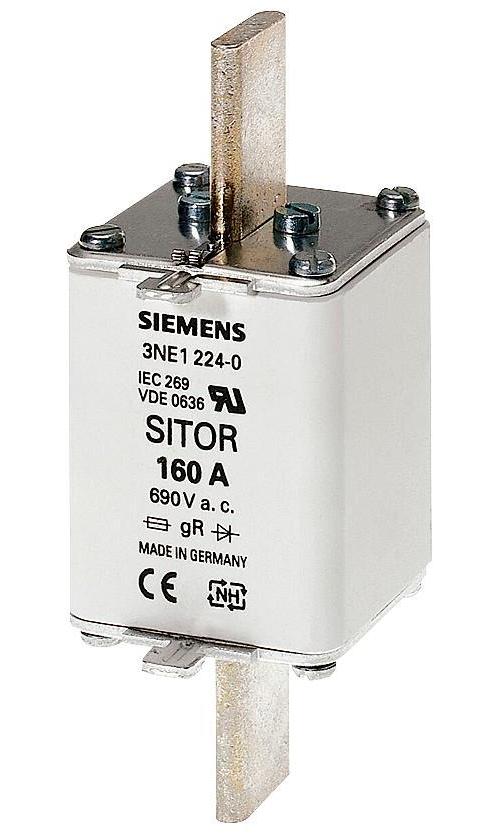

Siemens 3NE1224-0 Sentron Fuse Link
Sentron Fuse Link, 690 VAC, 160 A, 100 kA Rated Breaking Capacity, -20 to 50 deg C, DIN Rail Mount, For Use With: SITOR Semiconductor Fuse System, 135 mm L x 63.5 mm W x 52 mm D
Additional Description: SIEM-3NE1224-0 FUSE-SITOR,160A,AC 690V
Catalog Description: FUSE-SITOR,160A,AC 690V 160A , AC 690 V ,(SIZE 1) UTILIZ. CATEGORY GR, DIN 43620 SITOR FUSE-LINK
Item FeaturesFor Supplementary protection and sitor semi-conductor protection
Item Features
Item FeaturesUL Listed|CCC Certified|CE Certified|GOST Certified|DIN 43620
