Brand: Siemens

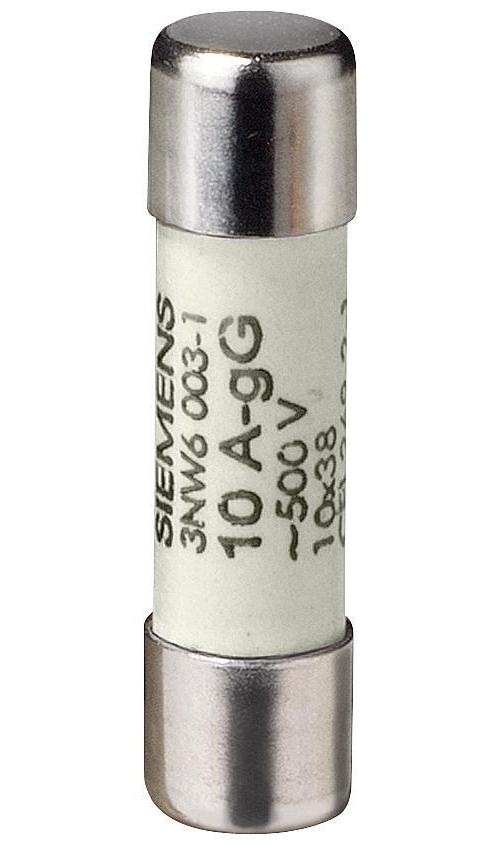

Siemens 3NW6010-1 Sentron Cylindrical Fuse Link
Image Disclaimers Message
Brand: Siemens
Siemens 3NW6010-1 Sentron Cylindrical Fuse Link
Brand: Siemens
Siemens 3NW6010-1 Sentron Cylindrical Fuse Link
Part #:3NW6010-1
SKU #: 2384240
$116.60/20EA
Key Features
Part #:3NW6010-1
SKU #: 2384240
Brand: Siemens
Amperage Rating: 25, 25 A
Dimensions: 10.3 mm Dia x 38 mm L
Rated Breaking Capacity: 120, 120 kA
Suitable For Use With: Cylindrical Fuse System
Type: SZ NH0 Class gG
$116.60/20EA
- Devices with pole number 1P+N are available in a single modular width
- This reduces the footprint by 50%
- The sliding catch for type ranges 8 x 32 mm and 10 x 38 mm enables the removal of individual devices from the assembly
- Space for a spare fuse in the plug-in module enables the fast replacement of fuses
- This saves time and money and increases system availability
Specifications
Brand: Siemens
Amperage Rating: 25, 25 A
Dimensions: 10.3 mm Dia x 38 mm L
Rated Breaking Capacity: 120, 120 kA
Suitable For Use With: Cylindrical Fuse System
Type: SZ NH0 Class gG
Voltage Rating: 500, 500 VAC
Country of origin: DE
Material: Ceramic/Plastic
Mounting type: Surface
Manufacturer Name: Siemens
UNSPSC: 39121626
UPC: 00754554283913
Item FeaturesFor supplementary protection and residential buildings applications
Item Features
Item FeaturesNFC Approved|UL 512|WEEE (2012/19/EU)|CE Certified|DIN EN 61346-2|DIN EN 81346-2|IEC 60269-1|IEC 60269-2|IEC 60269-3|NFC 60-200|NFC 63-210|NFC 63-211|NBNC 63269-2|CEI 32-4|CEI 32-12
