Part Number # 3RA21101BD151AK6
SKU # 2452819
Image Disclaimers Message
3RA21101BD151AK6

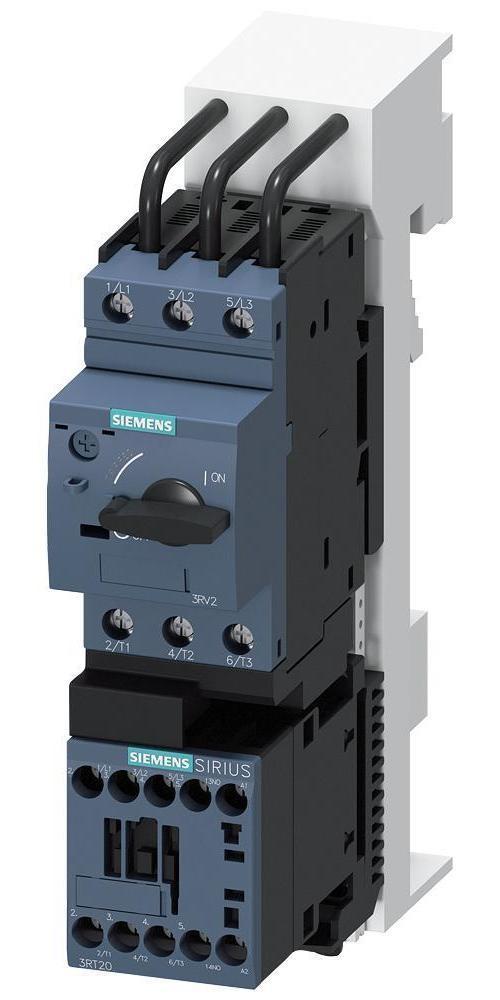

Siemens 3RA21101BD151AK6
Part Number # 3RA21101BD151AK6
SKU # 2452819
$676.40 / Each
Typical price:$889.00 / Each
Siemens 3RA21101BD151AK6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA21101BD151AK6 |
| SKU #: | 2452819 |
| Amperage Rating: | 1.9 A |
| Coil Voltage: | 110 to 120 V AC, 110 to 120 VAC |
| Dimensions: | 45 mm W x 155.1 mm D x 200 mm H |
| Enclosure Type: | IP00/20 |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 1.63 A at 480 VAC/1.72 A at 600 VAC |
| Motor Power: | 3/4 hp at 460/480 VAC, 1 hp at 575/600 VAC |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000 Cycles |
| Overload Relay: | Class 10 Thermal Bimetal |
| Phase: | 3 |
| Setting: | 1.4 to 2 A |
| Type: | Direct On-Line |
| Wattage: | 750 W |
| Connection type: | Screw Terminal |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00040892597400 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$676.40 / Each
Typical price:$889.00 / Each
Quantity:
- Siemens Fuseless Load Feeder, Direct On-Line, 400 V AC, 1.9 A, 50/60 Hz Frequency, 750 W Wattage, 3/4 hp at 460/480 VAC, 1 hp at 575/600 VAC Motor, 110 to 120 VAC Coil, 3 Pole, Setting: 1.4 to 2 A, 3 ph, Screw Terminal Connection, Class 10 Thermal Bimetal Overload Relay, 1.63 A at 480 VAC/1.72 A at 600 VAC Full Load, IP00/20 Enclosure, 30000000 Cycles Operating Cycles, 45 mm W x 155.1 mm D x 200 mm H Dimensions
3RA21101BD151AK6 Application
For control cabinet3RA21101BD151AK6 Item Features
- Minimum planning and assembly work and far less wiring with the preassembled complete units
- Plug-in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error-free assembly of feeders with screw and spring-type connection
- High planning reliability through consistent combination tests for fuseless and fused configuration in accordance with IEC and UL/CSA
- High operational reliability through short-circuit breaking capacity of 150 kA with type of coordination 1 and 2
- Spring terminals possible throughout: Enhanced operational reliability (vibration-resistant wiring) and less wiring work thanks to plug-in connections
- Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption
- Connection of feeders to the control system through standardized system connection (IO-link and AS-i), for fast integration in TIA and less wiring work
- iq - 150 kA 1NO contactor
- Screw connection for assignment type-2 60 mm busbar systems
- Size S00 fuseless load feeder
3RA21101BD151AK6 Standards
ATEX Approved|BAA Compliant|CE Certified|CSA Certified|EAC Compliant|IEC 60068-2-27/60947-4-1|UL ListedSKU #2452819Part Number #3RA21101BD151AK6UNSPSC39121521UPC00040892597400
