3RA21150EA162BB4

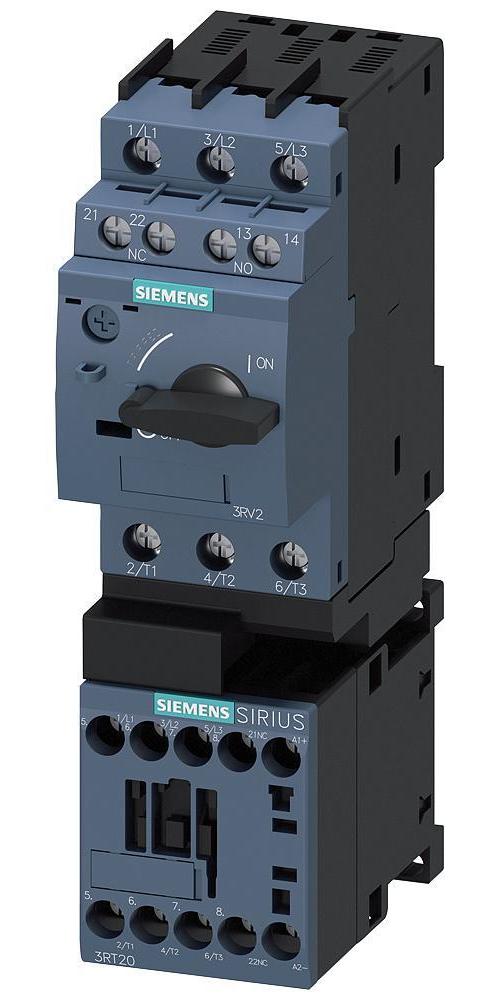

Siemens 3RA21150EA162BB4 SIRIUS Combination Starter
Part Number # 3RA21150EA162BB4
SKU # 2414041
$317.76 / Each
Typical price:$767.00 / Each
Siemens 3RA21150EA162BB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA21150EA162BB4 |
| SKU #: | 2414041 |
| Amperage Rating: | 0.3 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Dimensions: | 167 mm H x 45 mm W x 97 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 90 W |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000 Cycles |
| Operating Temperature: | -20 to 60 deg C |
| Overload Relay: | Thermal Bimetal |
| Series: | 3RA211 |
| Setting: | 0.28 to 0.4 A |
| Type: | SZ 00 Direct on Line Fuseless Load Feeder |
| Connection type: | Screw Terminal |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00887621894498 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$317.76 / Each
Typical price:$767.00 / Each
Quantity:
- Siemens SIRIUS Combination Starter, SZ 00 Direct On Line Fuseless Load Feeder, Series: 3RA211, 690 V AC, 0.3 A, 50/60 Hz Frequency, 90 W Motor, 24 VDC Coil, 3 Pole, Setting: 0.28 to 0.4 A, Screw Terminal Connection, Thermal Bimetal Overload Relay, IP20 Enclosure, 30000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 167 mm H x 45 mm W x 97 mm D Dimensions
3RA21150EA162BB4 Item Features
- 90 W at 400 VAC motor power
3RA21150EA162BB4 Standards
CSA Certified|UL Listed|EAC Certified|ATEX Certified|CE Certified|ABS Approved|BUREAU VERITAS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|IEC 60 947-1, EN 60 947-1 (VDE 0660 Part 100)|IEC 60 947-2, EN 60 947-2 (VDE 0660 Part 101)|IEC 60 947-4-1, EN 60 947-4-1 (VDE 0660 Part 102)|REACH Article No. 33|WEEE 2012/19/EUSKU #2414041Part Number #3RA21150EA162BB4UNSPSC39121521UPC00887621894498
