Part Number # 3RA21150HA151BB4
SKU # 2295391
Image Disclaimers Message
3RA21150HA151BB4

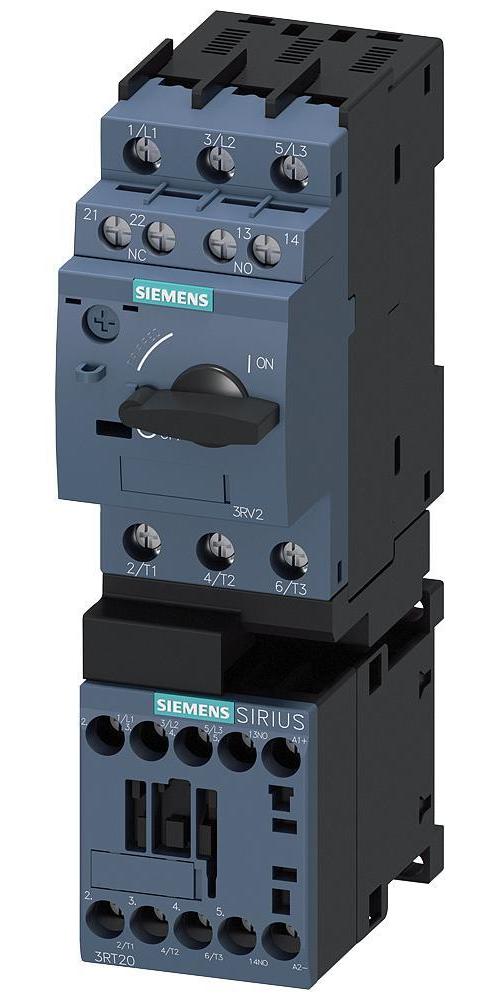

Siemens 3RA21150HA151BB4 IEC Combination Starter
Part Number # 3RA21150HA151BB4
SKU # 2295391
$322.31 / Each
Typical price:$778.00 / Each
Siemens 3RA21150HA151BB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA21150HA151BB4 |
| SKU #: | 2295391 |
| Action: | SPDT |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Dimensions: | 167.2 mm H x 45 mm W x 97.1 mm D |
| Enclosure Type: | IP00/20, IP00/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Full Load Current: | 0.6, 0.6 A |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000, 30000000 Cycles |
| Operating Temperature: | -20 to 60, -20 to 60 deg C |
| Overload Relay: | Thermal/Magnetic |
| Series: | 3RA2 |
| Setting: | 0.55 to 0.8, 0.55 to 0.8 A |
| Timing: | 10, 10 s |
| Type: | Direct-On Line Non-Fused Non-Reversing |
| Connection type: | Screw |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00887621860950 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$322.31 / Each
Typical price:$778.00 / Each
Quantity:
- Siemens IEC Combination Starter, Direct-On Line Non-Fused Non-Reversing, Series: 3RA2, 690 V AC, 50/60 Hz Frequency, 24 VDC Coil, 3 Pole, Setting: 0.55 to 0.8 A, 10 s Timing, Screw Connection, SPDT Action, Thermal/Magnetic Overload Relay, 0.6 A Full Load, IP00/20 Enclosure, 30000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 167.2 mm H x 45 mm W x 97.1 mm D Dimensions
3RA21150HA151BB4 Item Features
- The motor starter protector and contactor are mechanically and electrically connected by means of the link module
- Auxiliary switches on the motor starter protector and the contactor can be easily fitted due to the modular system
- 180 W at 400 VAC, 250 W at 500 VAC, 370 W at 690 VAC
3RA21150HA151BB4 Standards
CSA Certified|UL Listed|EAC Certified|ATEX Certified|CE Certified|ABS Certified|Bureau Veritas Certified|LRS Certified|PRS Certified|RINA Approved|RMRS Certified|DNV-GL Approved|IEC 60 947-1|EN 60 947-1 (VDE 0660 Part 100)|IEC 60 947-2|EN 60 947-2 (VDE 0660 Part 101)|IEC 60 947-4-1|EN 60 947-4-1 (VDE 0660 Part 102)SKU #2295391Part Number #3RA21150HA151BB4UNSPSC39121521UPC00887621860950
