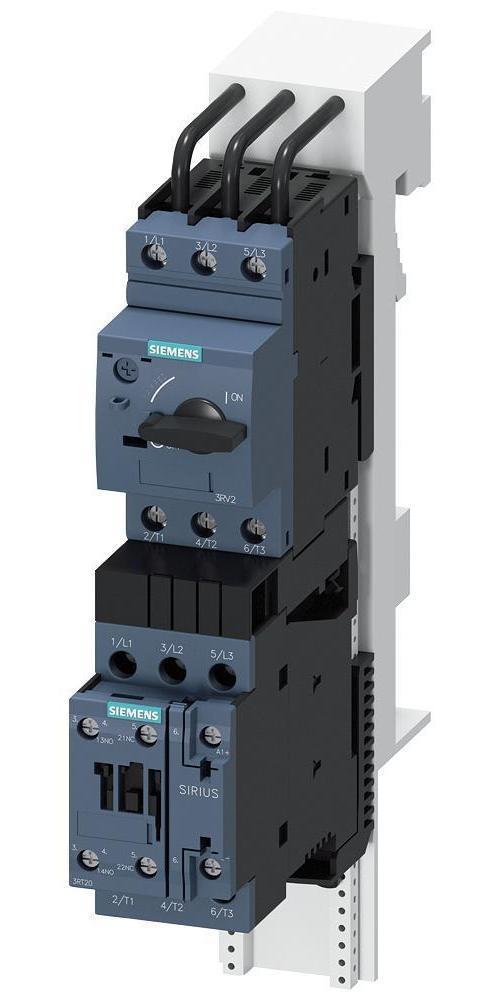

Siemens 3RA21201GD240BB4 SIRIUS Starter
Image Disclaimers Message
Siemens 3RA21201GD240BB4 SIRIUS Starter
Siemens 3RA21201GD240BB4 SIRIUS Starter
Part #:3RA21201GD240BB4
SKU #: 2359360
Key Features
Part #:3RA21201GD240BB4
SKU #: 2359360
Brand: Siemens
Amperage Rating: 4.9, 4.9 A
Coil Voltage: 24, 24 VDC
Dimensions: 260 mm H x 45 mm W x 165 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
- 1 hp at 200/208 VAC, 1-1/2 hp at 220/230 VAC, 3 hp at 460/480 VAC, 5 hp at 575/600 VAC
Siemens 3RA21201GD240BB4 SIRIUS Starter
Siemens SIRIUS Starter, SZ 00 Direct on Line Fuseless Load Feeder, 690 VAC, 4.9 A, 50/60 Hz Frequency, 2200 W Wattage, 1 hp, 1-1/2 hp, 3 hp, 5 hp Motor, 24 VDC Coil, 3 Pole, Setting: 4.5 to 6.3 A, Screw Connection, Class 10 Thermal Bimetal Overload Relay, 4.8 A Full Load, IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 260 mm H x 45 mm W x 165 mm D Dimensions
Additional Description: SIEM-3RA21201GD240BB4 STARTER DOL FB S0 4.5-6.3A 24VDC SCREW
Catalog Description: Load feeder fuseless direct start, AC 400V, sz s0, 4.5. . .6.3a, DC 24v screw connection for busbar systems 60mm type of coordination 2, iq = 150ka (also fulfills type of coordination 1) 1NO+1NC (contactor)
