Part #:3RA21201JA240AK6
SKU #: 2223378
Key Features
Part #:3RA21201JA240AK6
SKU #: 2223378
Brand: Siemens
Action: Reversing
Amperage Rating: 7 to 10, 7 to 10 A
Auxiliary Contact Rating: 1NO-1NC
Coil Voltage: 110 to120, 110 to120 VAC
Dimensions: 193 mm H x 45 mm W x 97 mm D
- Minimum planning and assembly work and far less wiring with the preassembled complete units
- Plug-in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error free assembly of feeders with screw and spring type connection
- High planning reliability through consistent combination tests for fuseless and fused configuration
- High operational reliability through short circuit breaking capacity of 150 kA with type of coordination 1 and 2
- Spring type connection possible throughout enhanced operational reliability and less wiring work thanks to plug-in connections
- Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption
- Connection of feeders to the control system through standardized system connection, for fast integration in TIA and less wiring work

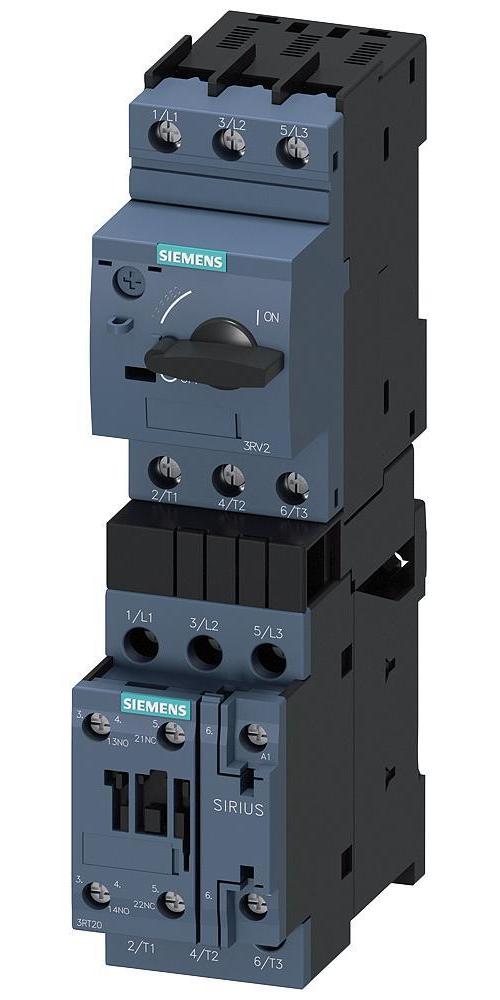

Siemens 3RA21201JA240AK6 SIRIUS Combination Starter
Siemens SIRIUS Combination Starter, Fuseless Load Feeder, Series: 3RA2, 690 VAC, 7 to 10 A, 50/60 Hz Frequency, 110 to120 VAC Coil, 3 Pole, 3 ph ph, Thread Connection, Reversing Action, Solid-State Overload Relay, 1NO-1NC Auxiliary, IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 193 mm H x 45 mm W x 97 mm D Dimensions
Additional Description: SIEM-3RA21201JA240AK6 COMBINATION STARTER_3RA21_S0_7-10A SCREW
Catalog Description: Combination Starter 3RA21-S0_7-10A
