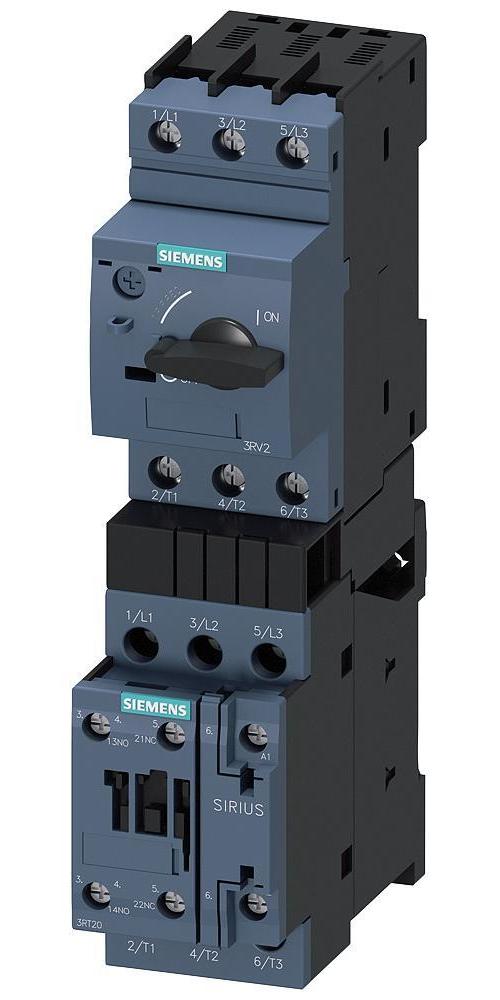

Siemens 3RA21201JA240AP6 IEC Combination Starter
Part Number # 3RA21201JA240AP6
SKU # 2285453
$374.10 / Each
Typical price:$903.00 / Each
Siemens 3RA21201JA240AP6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA21201JA240AP6 |
| SKU #: | 2285453 |
| Full Load Current: | 8.5 A |
| UNSPSC: | 39121521 |
| UPC: | 00887621780807 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$374.10 / Each
Typical price:$903.00 / Each
Quantity:
- Siemens IEC Combination Starter, Direct-On Line Non-Fused Non-Reversing, Series: 3RA2, 690 V AC, 50/60 Hz Frequency, 2 hp, 3 hp, 5 hp, 7-1/2 hp Motor, 220/240 VAC Coil, 3 Pole, Setting: 7 to 10 A, 10 s Timing, 1/3 ph, Screw Connection, Thermal/Magnetic Overload Relay, 8.5 A Full Load, IP00/20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 193.1 mm H x 45 mm W x 97.1 mm D Dimensions
3RA21201JA240AP6 Item Features
- The motor starter protector and contactor are mechanically and electrically connected by means of the link module
- Auxiliary switches on the motor starter protector and the contactor can be easily fitted due to the modular system
- 7.92 A at 480 VAC, 9.19 A at 600 VAC
- 7-1/2 hp at 575 VAC, 5 hp at 460 VAC, 3 hp at 230 VAC, 2 hp at 200 VAC for 3-ph, 3 hp at 230 VAC, 1/2 hp at 110/120 VAC for 1- ph
3RA21201JA240AP6 Standards
CSA Certified|UL Listed|EAC Certified|ATEX Certified|CE Certified|ABS Certified|LRS Certified|PRS Certified|RINA Approved|RMRS Certified|DNV-GL Approved|IEC 60 947-1|EN 60 947-1 (VDE 0660 Part 100)|IEC 60 947-2|EN 60 947-2 (VDE 0660 Part 101)|IEC 60 947-4-1|EN 60 947-4-1 (VDE 0660 Part 102)SKU #2285453Part Number #3RA21201JA240AP6UNSPSC39121521UPC00887621780807
Image provided may only be a representation of final product and may include optional equipment
