Siemens 3RA21204DA270BB4 SIRIUS Load Feeder Starter
Part Number # 3RA21204DA270BB4
SKU # 2284943
3RA21204DA270BB4
Siemens 3RA21204DA270BB4 SIRIUS Load Feeder Starter
Part Number # 3RA21204DA270BB4
SKU # 2284943
$754.83 / Each
Typical price:$1822.00 / Each
Siemens 3RA21204DA270BB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA21204DA270BB4 |
| SKU #: | 2284943 |
| Action: | Reversing |
| Amperage Rating: | 20 to 25 A |
| Auxiliary Contact Rating: | 1NO-1NC |
| Coil Voltage: | 24 V DC |
| Dimensions: | 193 mm H x 45 mm W x 97 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -20 to 60 deg C |
| Overload Relay: | Solid-State |
| Phase: | 3 |
| Series: | 3RA2 |
| Type: | Fuseless |
| Connection type: | Thread |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643900422 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$754.83 / Each
Typical price:$1822.00 / Each
Quantity:
- Siemens SIRIUS Load Feeder Starter, Fuseless, Series: 3RA2, 690 V AC, 20 to 25 A, 50/60 Hz Frequency, 24 VDC Coil, 3 Pole, 3 ph, Thread Connection, Reversing Action, Solid-State Overload Relay, 1NO-1NC Auxiliary, IP20 Enclosure, Starting Modes: Direct On-Line, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 193 mm H x 45 mm W x 97 mm D Dimensions
3RA21204DA270BB4 Application
For use with control cabinet3RA21204DA270BB4 Item Features
- Minimum planning and assembly work and far less wiring with the preassembled complete units
- Plug-in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error free assembly of feeders with screw and spring type connection
- High planning reliability through consistent combination tests for fuseless and fused configuration
- High operational reliability through short circuit breaking capacity of 150 kA with type of coordination 1 and 2
- Spring type connection possible throughout enhanced operational reliability and less wiring work thanks to plug-in connections
- Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption
- Connection of feeders to the control system through standardized system connection, for fast integration in TIA and less wiring work
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=n2AKmVUVH7Y|https://www.youtube.com/watch?v=y_qB1VuTgj8|https://www.youtube.com/watch?v=4AdAIl-ElSk|https://www.youtube.com/watch?v=UAr9oN3uDOw
3RA21204DA270BB4 Standards
UL Listed|CSA|CE Certified|EAC Standard|IEC, EN 60947-1, 60947-2, 60947-4-1SKU #2284943Part Number #3RA21204DA270BB4UNSPSC39121521UPC00662643900422

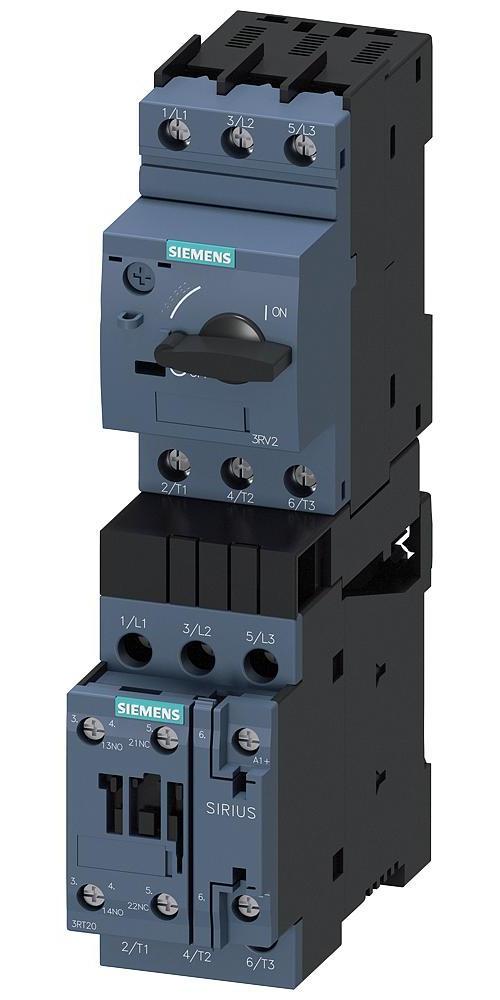

Image provided may only be a representation of final product and may include optional equipment
