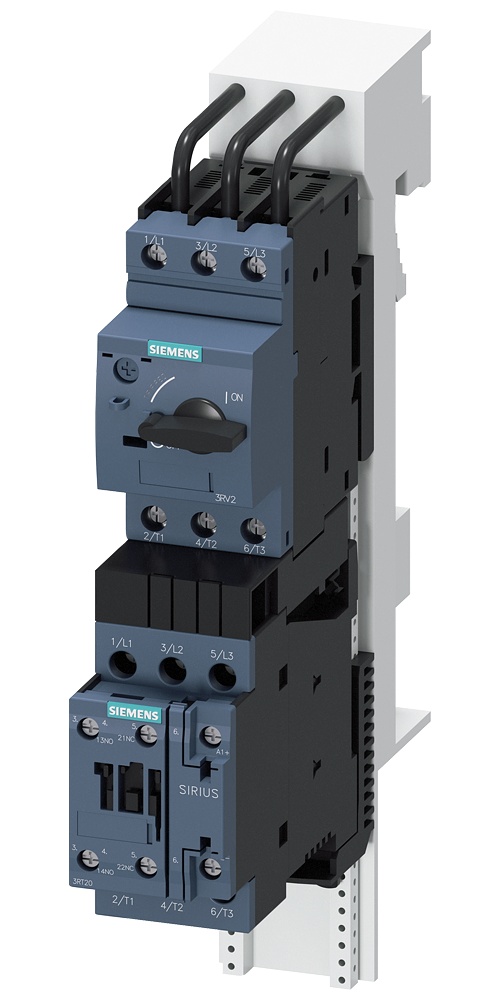

Siemens 3RA21204ED270BB4 SIRIUS Starter
Image Disclaimers Message
Siemens 3RA21204ED270BB4 SIRIUS Starter
Siemens 3RA21204ED270BB4 SIRIUS Starter
Part #:3RA21204ED270BB4
SKU #: 2270745
Key Features
Part #:3RA21204ED270BB4
SKU #: 2270745
Brand: Siemens
Amperage Rating: 29, 29 A
Coil Voltage: 24, 24 VDC
Dimensions: 260 mm H x 45 mm W x 165 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
- 10 hp at 220/230 VAC, 20 hp at 460/480 VAC, 25 hp at 575/600 VAC
Siemens 3RA21204ED270BB4 SIRIUS Starter
Siemens SIRIUS Starter, SZ 00 Direct on Line Fuseless Load Feeder, 690 VAC, 29 A, 50/60 Hz Frequency, 15000 W Wattage, 10 hp, 20 hp, 25 hp Motor, 24 VDC Coil, 3 Pole, Setting: 27 to 32 A, Screw Connection, Class 10 Thermal Bimetal Overload Relay, 14 A Full Load, IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 260 mm H x 45 mm W x 165 mm D Dimensions
Additional Description: SIEM-3RA21204ED270BB4 STARTER DOL FB S0 27-32A 24VDC SCREW
Catalog Description: Load feeder fuseless direct start, AC 400V, sz. s0, 27...32a, DC 24v screw connection for busbar systems 60mm type of coord. 2,iq = 150ka (also AChieves type of coord.1) 1NO+1NC (contactor)
