Part Number # 3RA21204NA270BB4
SKU # 2346879
Image Disclaimers Message
3RA21204NA270BB4

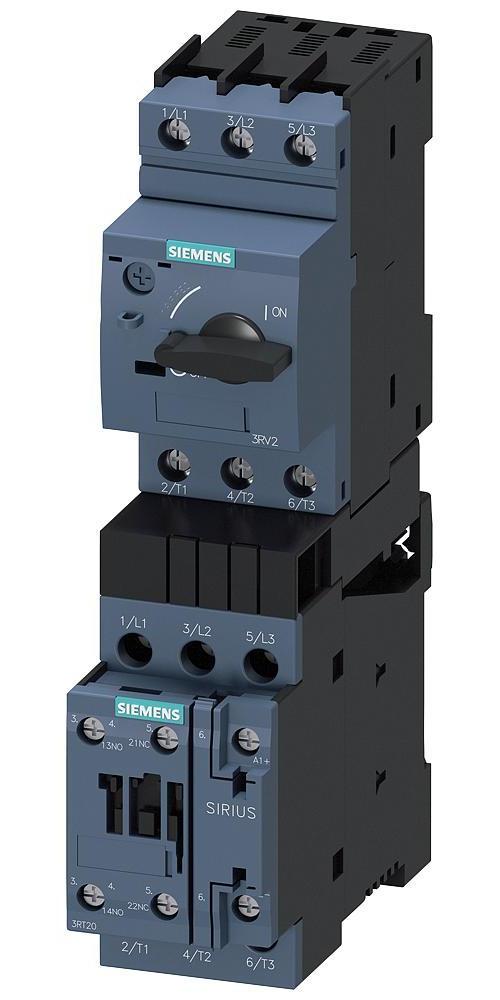

Siemens 3RA21204NA270BB4 Fuseless Load Feeder
Part Number # 3RA21204NA270BB4
SKU # 2346879
$767.26 / Each
Typical price:$1852.00 / Each
Siemens 3RA21204NA270BB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA21204NA270BB4 |
| SKU #: | 2346879 |
| Amperage Rating: | 28, 28 A |
| Coil Voltage: | 24, 24 VDC |
| Dimensions: | 45 mm W x 107 mm D x 193 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -20 to 60, -20 to 60 deg C |
| Overload Relay: | Class 10 Thermal Bi-Metallic, Class 10 Thermal Bimetal |
| Setting: | 23 to 28, 23 to 28 A |
| Type: | Direct On-Line |
| Wattage: | 15000, 15000 W |
| Connection type: | Screw Terminal, Terminal Screw |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00804766226083 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$767.26 / Each
Typical price:$1852.00 / Each
Quantity:
- Siemens Fuseless Load Feeder, Direct On-Line, 400 VAC, 28 A, 50/60 Hz Frequency, 15000 W Wattage, 24 VDC Coil, 3 Pole, Setting: 23 to 28 A, Screw Terminal Connection, Class 10 Thermal Bimetal Overload Relay, IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 45 mm W x 107 mm D x 193 mm H Dimensions
3RA21204NA270BB4 Application
For control cabinet3RA21204NA270BB4 Item Features
- Minimum planning and assembly work and far less wiring with the preassembled complete units
- Plug-in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error-free assembly of feeders with screw and spring-type connection
- High planning reliability through consistent combination tests for fuseless and fused configuration in accordance with IEC and UL/CSA
- High operational reliability through short-circuit breaking capacity of 150 kA with type of coordination 1 and 2
- Spring terminals possible throughout: Enhanced operational reliability (vibration-resistant wiring) and less wiring work thanks to plug-in connections
- Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption
- Connection of feeders to the control system through standardized system connection (IO-link and AS-i), for fast integration in TIA and less wiring work
- iq - 150 kA 1NO 1NC contactor
- Screw connection for coordination type-2 rail mounting
- Size S0 fuseless load feeder
3RA21204NA270BB4 Standards
ATEX Approved|CE Certified|CSA Certified|EAC Compliant|IEC 60068-2-27/60947-4-1|UL ListedSKU #2346879Part Number #3RA21204NA270BB4UNSPSC39121521UPC00804766226083
