Part Number # 3RA22100BD152AK6
SKU # 2225592
3RA22100BD152AK6

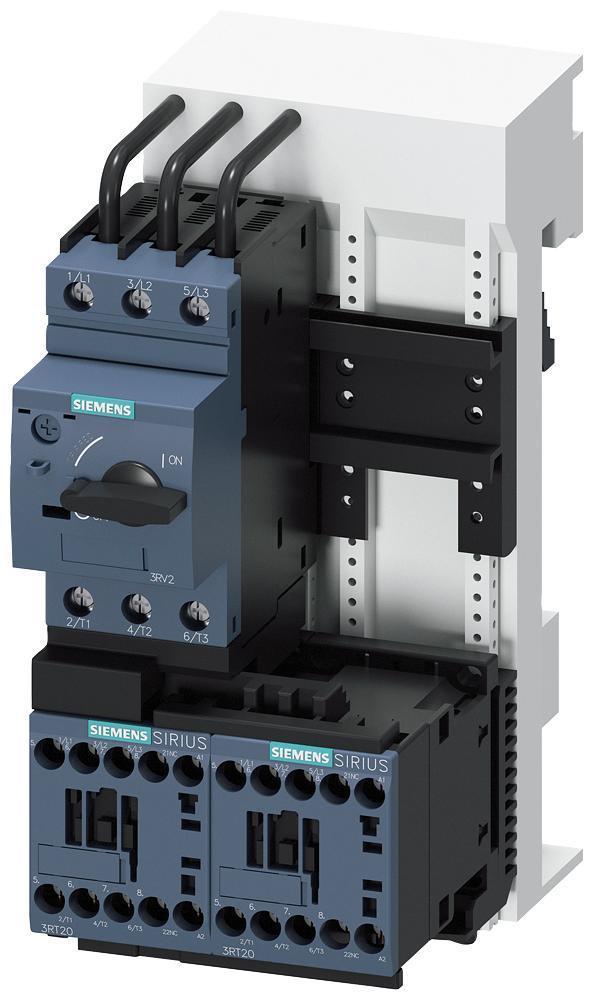

Siemens 3RA22100BD152AK6 Fuseless Load Feeder
Part Number # 3RA22100BD152AK6
SKU # 2225592
$1015.74 / Each
Typical price:$1335.00 / Each
Siemens 3RA22100BD152AK6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA22100BD152AK6 |
| SKU #: | 2225592 |
| Dimensions: | 90 mm W x 155.1 mm D x 200 mm H |
| UNSPSC: | 39121521 |
| UPC: | 00040892597783 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1015.74 / Each
Typical price:$1335.00 / Each
Quantity:
- Siemens Fuseless Load Feeder, Reversing, 400 V AC, 0.2 A, 50/60 Hz Frequency, 60 W Wattage, 110 to 120 VAC Coil, 3 Pole, Setting: 0.14 to 0.2 A, Screw Terminal Connection, Class 10 Thermal Bimetal Overload Relay, IP00/20 Enclosure, 30000000 Cycles Operating Cycles, 90 mm W x 155.1 mm D x 200 mm H Dimensions
3RA22100BD152AK6 Application
For control cabinet3RA22100BD152AK6 Item Features
- Minimum planning and assembly work and far less wiring with the preassembled complete units
- Plug-in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error-free assembly of feeders with screw and spring-type connection
- High planning reliability through consistent combination tests for fuseless and fused configuration in accordance with IEC and UL/CSA
- High operational reliability through short-circuit breaking capacity of 150 kA with type of coordination 1 and 2
- Spring terminals possible throughout: Enhanced operational reliability (vibration-resistant wiring) and less wiring work thanks to plug-in connections
- Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption
- Connection of feeders to the control system through standardized system connection (IO-link and AS-i), for fast integration in TIA and less wiring work
- iq - 150 kA 1NC contactor
- Screw connection for assignment type-2 60 mm busbar systems
- Size S00 fuseless load feeder
3RA22100BD152AK6 Standards
ATEX Approved|BAA Compliant|CE Certified|CSA Certified|EAC Compliant|IEC 60068-2-27/60947-4-1|UL ListedSKU #2225592Part Number #3RA22100BD152AK6UNSPSC39121521UPC00040892597783
Image provided may only be a representation of final product and may include optional equipment
