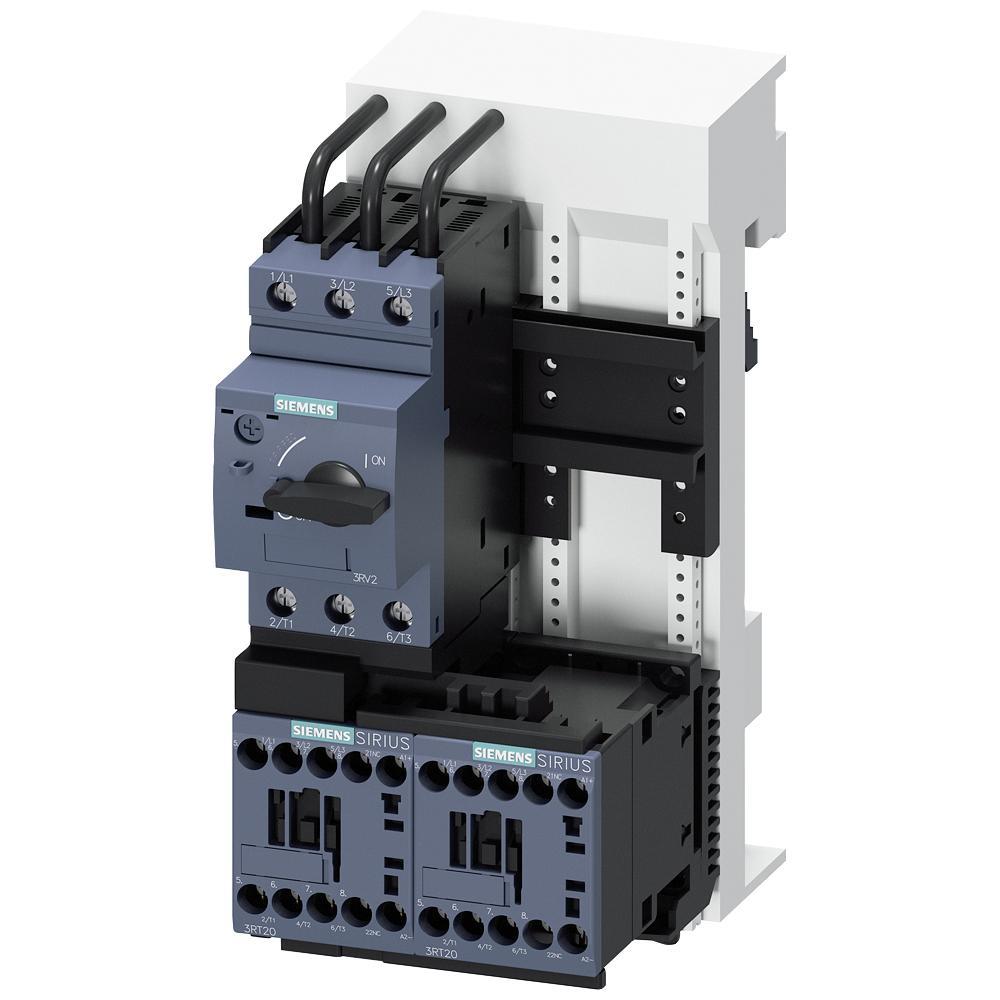

Siemens 3RA22100GD152BB4 Fuseless Load Feeder
Siemens 3RA22100GD152BB4 Fuseless Load Feeder
Part #:3RA22100GD152BB4
SKU #: 2383823
Key Features
Part #:3RA22100GD152BB4
SKU #: 2383823
Brand: Siemens
Amperage Rating: 0.6, 0.6 A
Coil Voltage: 24, 24 VDC
Dimensions: 90 mm W x 156 mm D x 200 mm H
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
- Minimum planning and assembly work and far less wiring with the preassembled complete units
- Plug-in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error-free assembly of feeders with screw and spring-type connection
- High planning reliability through consistent combination tests for fuseless and fused configuration in accordance with IEC and UL/CSA
- High operational reliability through short-circuit breaking capacity of 150 kA with type of coordination 1 and 2
- Spring terminals possible throughout: Enhanced operational reliability (vibration-resistant wiring) and less wiring work thanks to plug-in connections
- Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption
- Connection of feeders to the control system through standardized system connection (IO-link and AS-i), for fast integration in TIA and less wiring work
- iq - 150 kA 1NC contactor
- Screw connection for coordination type-2 60 mm busbar systems
- Size S00 fuseless load feeder
Siemens 3RA22100GD152BB4 Fuseless Load Feeder
Siemens Fuseless Load Feeder, Reversing, 400 VAC, 0.6 A, 50/60 Hz Frequency, 180 W Wattage, 24 VDC Coil, 3 Pole, Setting: 0.45 to 0.63 A, 3 ph ph, Screw Terminal Connection, Class 10 Thermal Bimetal Overload Relay, 0.63 A at 480 VAC Full Load, IP20 Enclosure, 30000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 90 mm W x 156 mm D x 200 mm H Dimensions
Additional Description: SIEM-3RA22100GD152BB4 STARTER REV FB S00 0.45-0.63A 24VDC SCRW
Catalog Description: LOAD FEEDER FUSELESS REVERSING DUTY, AC 400V, SZ S00, 0.45...0.63A, DC 24V SCREW CONNECTION FOR BUSBAR SYSTEMS 60MM TYPE OF COORDINATION 2, IQ = 150KA (ALSO FULFILLS TYPE OF COORDINATION 1) 1NC (CONTACTOR)
