Part Number # 3RA22100JE152BB4
SKU # 2386040
Image Disclaimers Message
3RA22100JE152BB4

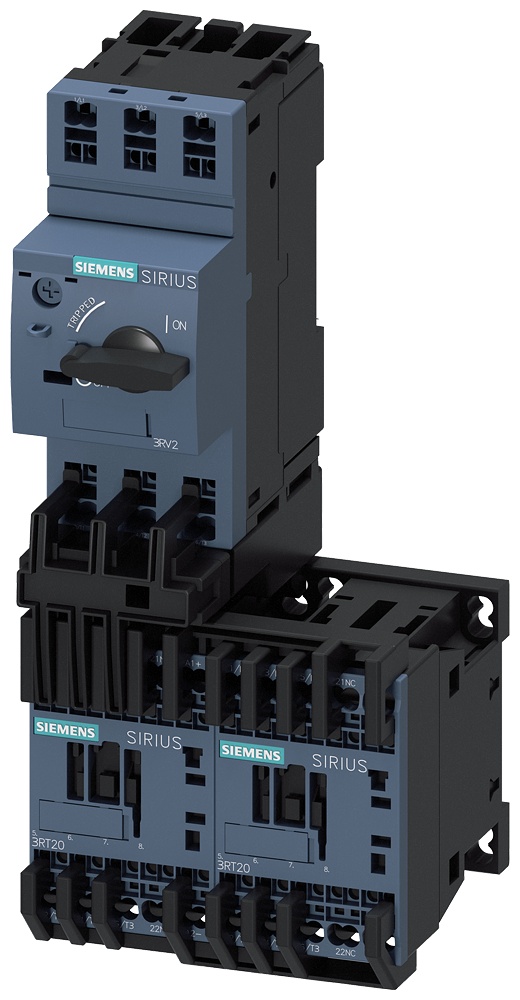

Siemens 3RA22100JE152BB4 Reversing Fuseless Load Feeder, 24 VDC V Coil, 3 Poles, IP20 Enclosure
Part Number # 3RA22100JE152BB4
SKU # 2386040
$418.43 / Each
Typical price:$1010.00 / Each
Siemens 3RA22100JE152BB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA22100JE152BB4 |
| SKU #: | 2386040 |
| Amperage Rating: | 0.85 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Dimensions: | 90 mm W x 97 mm D x 204 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 1 A at 480 VAC |
| Motor Power: | 1/2 hp at 575/600 VAC |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000 Cycles |
| Operating Temperature: | -20 to 60 deg C |
| Overload Relay: | Class 10 Thermal Bimetal |
| Phase: | 3, 3 ph |
| Setting: | 0.7 to 1 A |
| Type: | Reversing |
| Wattage: | 250 W |
| Connection type: | Spring Loaded Terminal |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643901184 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$418.43 / Each
Typical price:$1010.00 / Each
Quantity:
- Siemens Fuseless Load Feeder, Reversing, 400 V AC, 0.85 A, 50/60 Hz Frequency, 250 W Wattage, 1/2 hp at 575/600 VAC Motor, 24 VDC Coil, 3 Pole, Setting: 0.7 to 1 A, 3 ph, Spring Loaded Terminal Connection, Class 10 Thermal Bimetal Overload Relay, 1 A at 480 VAC Full Load, IP20 Enclosure, 30000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 90 mm W x 97 mm D x 204 mm H Dimensions
3RA22100JE152BB4 Application
For control cabinet3RA22100JE152BB4 Item Features
- Minimum planning and assembly work and far less wiring with the preassembled complete units
- Plug-in connectors from the motor starter protector to all types of SIRIUS controls, for quicker and error-free assembly of feeders with screw and spring-type connection
- High planning reliability through consistent combination tests for fuseless and fused configuration in accordance with IEC and UL/CSA
- High operational reliability through short-circuit breaking capacity of 150 kA with type of coordination 1 and 2
- Spring terminals possible throughout: Enhanced operational reliability (vibration-resistant wiring) and less wiring work thanks to plug-in connections
- Power loss 5 to 10% smaller than for comparable devices, hence lower energy consumption
- Connection of feeders to the control system through standardized system connection (IO-link and AS-i), for fast integration in TIA and less wiring work
- iq - 150 kA 1NC contactor
- Spring-loaded connection for coordination type-2 rail mounting
- Size S00 fuseless load feeder
3RA22100JE152BB4 Standards
ATEX Approved|BAA Compliant|CE Certified|CSA Certified|EAC Compliant|IEC 60068-2-27/60947-4-1|UL ListedSKU #2386040Part Number #3RA22100JE152BB4UNSPSC39121521UPC00662643901184
