Brand: Siemens

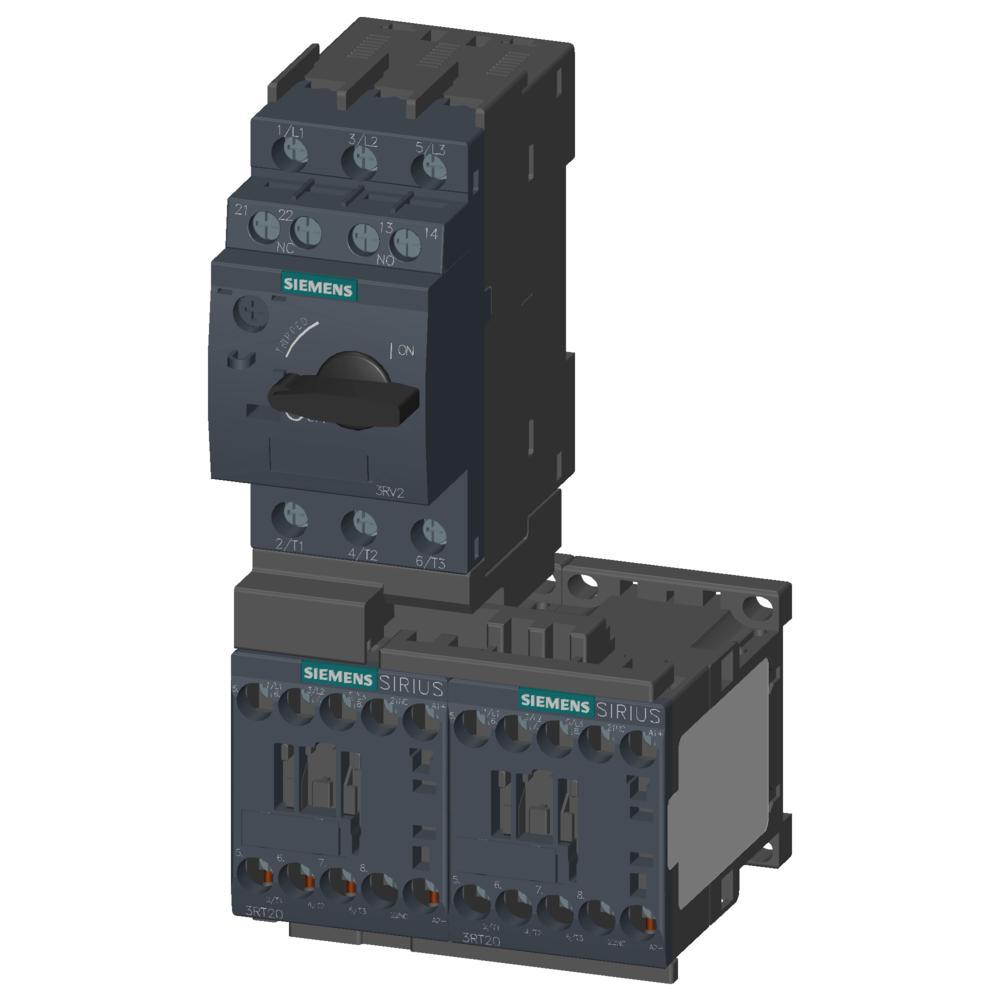

Siemens 3RA22151AA152BB4 SIRIUS Combination Starter
Image Disclaimers Message
Brand: Siemens
Siemens 3RA22151AA152BB4 SIRIUS Combination Starter
Brand: Siemens
Siemens 3RA22151AA152BB4 SIRIUS Combination Starter
Part #:3RA22151AA152BB4
SKU #: 2375102
$416.36/EA
Key Features
Part #:3RA22151AA152BB4
SKU #: 2375102
Brand: Siemens
Amperage Rating: 1.5 A
Coil Voltage: 24 VDC
Dimensions: 170 mm H x 90 mm W x 97.1 mm D
Enclosure Type: IP00/IP20
Frequency Rating: 50/60 Hz
$416.36/EA
- 0.1 hp at 230 VAC 1-phase, 3/4 hp at 460/480/575/600 VAC 3-phase motor power
Specifications
Brand: Siemens
Amperage Rating: 1.5 A
Coil Voltage: 24 VDC
Dimensions: 170 mm H x 90 mm W x 97.1 mm D
Enclosure Type: IP00/IP20
Frequency Rating: 50/60 Hz
Motor Power: 0.1 hp, 3/4 hp
Number of Poles: 3
Operating Cycles: 30000000 Cycles
Operating Temperature: -20 to 60 deg C
Overload Relay: Thermal Bimetal
Series: 3RA221
Setting: 1.1 to 1.6 A
Type: SZ 00 Fuseless Reversing
Voltage Rating: 690 VAC
Connection type: Screw Terminal
Country of origin: US
Manufacturer Name: Siemens
UNSPSC: 39121521
UPC: 00887621864576
Item Features
Item FeaturesECCN: EAR99|CSA Certified|UL Listed|EAC Certified|ATEX Certified|CE Certified|ABS Approved|BUREAU VERITAS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|IEC 60 947-1, EN 60 947-1 (VDE 0660 Part 100)|IEC 60 947-2, EN 60 947-2 (VDE 0660 Part 101)|IEC 60 947-4-1, EN 60 947-4-1 (VDE 0660 Part 102)
