Part Number # 3RA23158XB302FB4
SKU # 2398863
Image Disclaimers Message
3RA23158XB302FB4

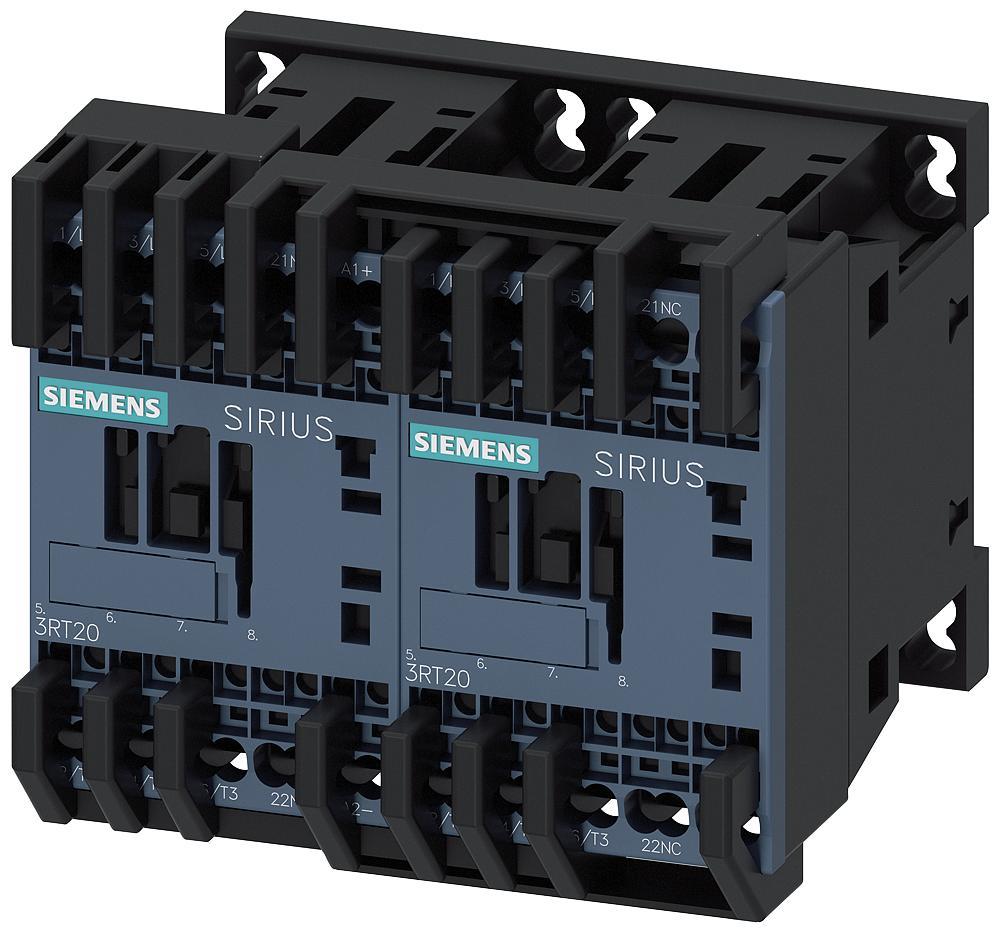

Siemens 3RA23158XB302FB4 Contactor Assembly
Part Number # 3RA23158XB302FB4
SKU # 2398863
$269.57 / Each
Typical price:$629.00 / Each
Siemens 3RA23158XB302FB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA23158XB302FB4 |
| SKU #: | 2398863 |
| Coil Power Rating: | 3 kW at 400 V 3-Phase |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 84 mm H x 90 mm W x 83 mm D |
| Enclosure Type: | IP20 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RA23 |
| Size: | S00 |
| Terminal Type: | Spring Loaded |
| Type: | 3-Phase Electrical/Mechanical Interlock Reversing |
| Wattage: | 4 W DC Closing/Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766185113 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$269.57 / Each
Typical price:$629.00 / Each
Quantity:
- Siemens Contactor Assembly, 3-Phase Electrical/Mechanical Interlock Reversing, Series: 3RA23, 24 V DC Coil, 7 A Maximum Load Current, 3 kW at 400 V 3-Phase Coil, 3 Pole, 4 W DC Closing/Holding Wattage, 3NO Contact Configuration, A600/Q600 Contact, S00 Size, Spring Loaded Terminal, IP20 Enclosure, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 84 mm H x 90 mm W x 83 mm D Dimensions
3RA23158XB302FB4 Application
For switching motors3RA23158XB302FB4 Standards
CSA Certified|UL Listed|EAC Certified|CE Certified|ABS Approved|BUREAU VERITAS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|WEEE 2012/19/EUSKU #2398863Part Number #3RA23158XB302FB4UNSPSC39121529UPC00804766185113
