Part Number # 3RA23178XB302AB0
SKU # 2388180
3RA23178XB302AB0
Siemens 3RA23178XB302AB0 3RA23 Reversing Contactor Assembly With Mechanical and Electrical Interlock
Part Number # 3RA23178XB302AB0
SKU # 2388180
Siemens 3RA23178XB302AB0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA23178XB302AB0 |
| SKU #: | 2388180 |
| Coil Power Rating: | 37 VA Pickup, 5.7 VA Holding |
| Coil Voltage: | 24, 24 V AC, 24 VAC |
| Contact Configuration: | 0NO-3NC, 3NC |
| Dimensions: | 90 mm W x 83 mm D x 84 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Series: | 3RA23 |
| Size: | S00 |
| Terminal Type: | Spring |
| Type: | Reversing |
| Wattage: | 5.5, 5.5 kW |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded/DIN Rail/Snap-On |
| Power factor: | 0.8 Closing, 0.28 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643898637 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RA23178XB302AB0 3RA23 Reversing Contactor Assembly With Mechanical and Electrical Interlock
Brand: Siemens
Part Number: 3RA23178XB302AB0
Siemens Contactor Assembly, Reversing, Series: 3RA23, 24 VAC Coil, 12 A Maximum Load Current, 37 VA Pickup, 5.7 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 5.5 kW Wattage, 0NO-3NC Contact Configuration, Power Factor: 0.8 Closing, 0.28 Holding, S00 Size, Spring Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 90 mm W x 83 mm D x 84 mm H Dimensions
Additional Description: SIEM-3RA23178XB302AB0 CONTACTOR REV S00 12A 24VAC SPRG
Catalog Description: REV. COMB., AC3, 5.5KW/ 400V AC24V, 50/60HZ, 3-POLE, SZ S00 SPRING-LOADED TERMINAL ELECTR. AND MECH. INTERLOCK
3RA23178XB302AB0 Item Features
- For maintained contact operation- use contactors with an NC contact in the basic unit for the electrical interlock
- For momentary contact operation- use contactors with an NC contact in the basic unit for the electrical interlock, in addition, an auxiliary switch block with at least one NO contact for latching is required per contactor
- 10000000 cycles contactor/10000000 cycles with added auxiliary switch block
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RA23178XB302AB0 Standards
ABS Approved|CE Certified|CSA Certified|EAC Certified|EN 50274|RCM Approved|UL ListedSKU #2388180Part Number #3RA23178XB302AB0UNSPSC39121529UPC00662643898637

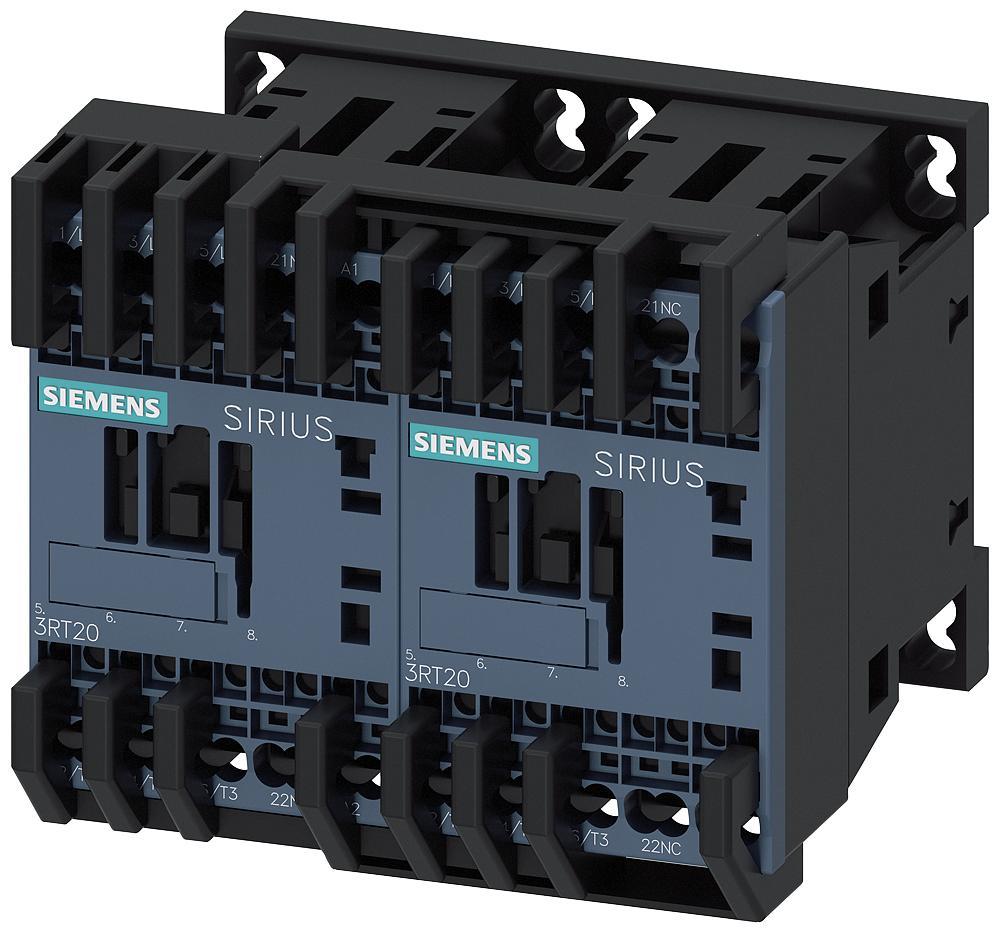

Image provided may only be a representation of final product and may include optional equipment
