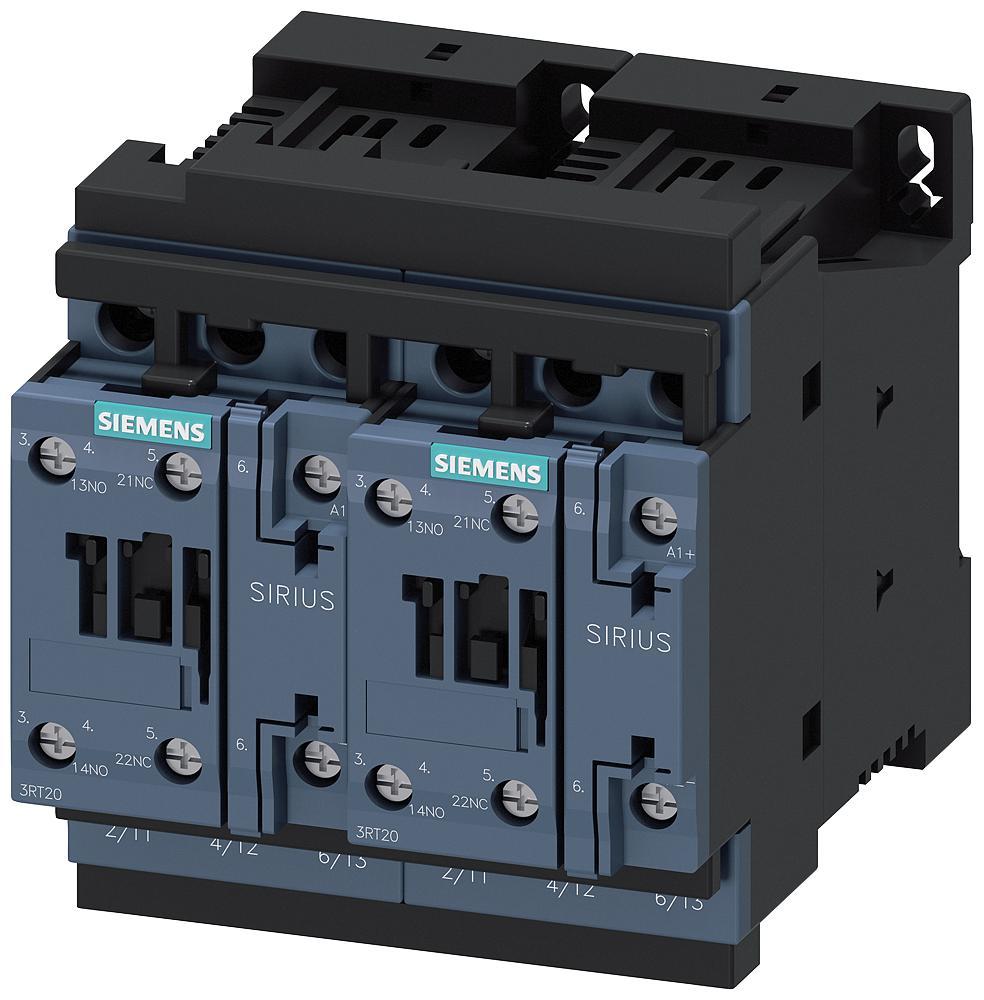

3RA23288XB301BB4
Siemens 3RA23288XB301BB4
Part Number # 3RA23288XB301BB4
SKU # 2461654
$957.43 / Each
Typical price:$2234.00 / Each
Siemens 3RA23288XB301BB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA23288XB301BB4 |
| SKU #: | 2461654 |
| Coil Power Rating: | 25 hp |
| Coil Voltage: | 24 V DC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 101 mm H x 90 mm W x 107 mm D |
| Enclosure Type: | Open |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Size: | S0 |
| Terminal Type: | Screw |
| Type: | 3-Phase Reversing |
| Wattage: | 18.5 kW |
| Country of origin: | DE |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643905656 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$957.43 / Each
Typical price:$2234.00 / Each
Quantity:
- Siemens SIRIUS, 3RA23288XB301BB4, Contactor Assembly, 3-Phase Reversing, 24 V DC Coil, 38 A Maximum Load Current, 25 hp Coil, 3 Pole, 18.5 kW Wattage, Auxiliary Contact, 3NO Contact Configuration, 4 Auxiliary Contacts, A600/Q600 Contact, S0 Size, Screw Terminal, Open Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Snap-On Mounting, 101 mm H x 90 mm W x 107 mm D Dimensions
3RA23288XB301BB4 Application
For switching motors3RA23288XB301BB4 Item Features
- Without overload relay
- 38 A operating current at AC-3 at 400 VAC rated value
- 10 hp at 220/230 VAC, 25 hp at 460/480 VAC, 25 hp at 575/600 VAC
- Mechanical and electrical interlock
- Both electrical interlocking and latching are satisfied with the integrated auxiliaries
- 5.9 W (closing/holding) magnetic coil at DC
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RA23288XB301BB4 Standards
CSA / UL|RoHS Compliant|CSA Certified|UL Listed|EAC Approved|ABS Approved|LRS Listed|RMRS Approved|DNV-GL ApprovedSKU #2461654Part Number #3RA23288XB301BB4UNSPSC39121529UPC00662643905656
Image provided may only be a representation of final product and may include optional equipment
