Part Number # 3RA24348XE321NB3
SKU # 2443560
Image Disclaimers Message
3RA24348XE321NB3

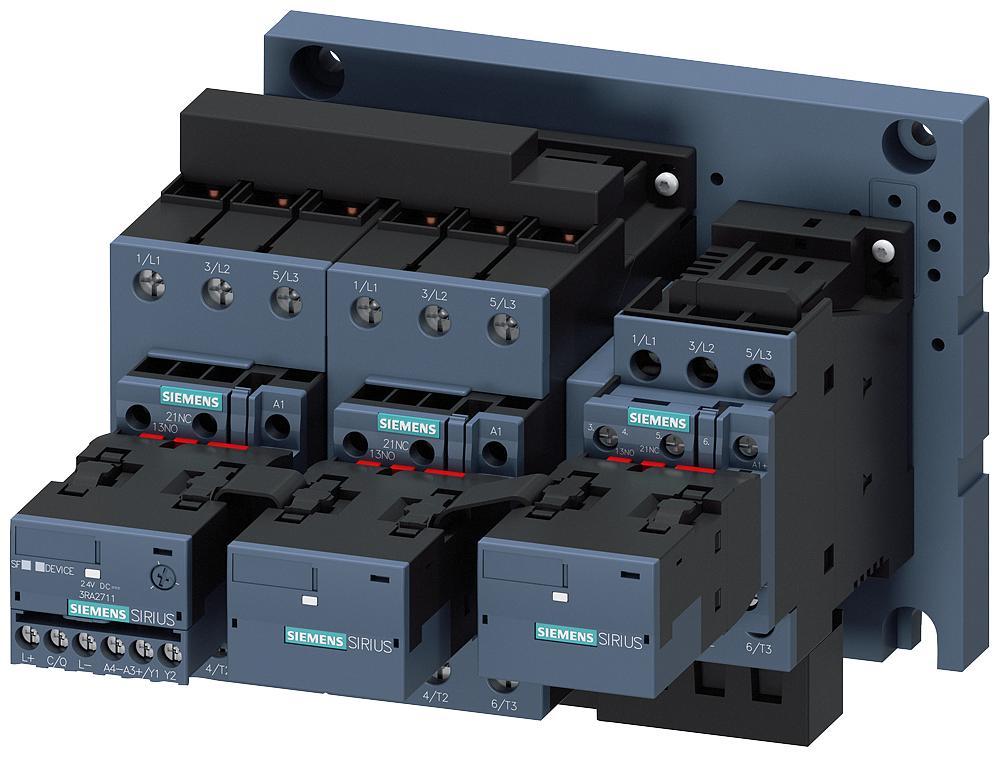

Siemens 3RA24348XE321NB3
Part Number # 3RA24348XE321NB3
SKU # 2443560
$3296.80 / Each
Typical price:$4333.00 / Each
Siemens 3RA24348XE321NB3 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA24348XE321NB3 |
| SKU #: | 2443560 |
| Coil Power Rating: | 22/30 kW at 400 V 3-Phase |
| Coil Voltage: | 20 to 33 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 142 mm H x 177.5 mm W x 223 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 3NO-3NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RA24 |
| Size: | S2 |
| Terminal Type: | Screw |
| Type: | 3-Phase Electrical/Mechanical Interlock Reversing |
| Wattage: | 82 VA Pickup, 6 VA Holding, 28 W DC Closing, 4 W DC Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.36/0.39/0.5/0.64 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00887621914233 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3296.80 / Each
Typical price:$4333.00 / Each
Quantity:
- Siemens Contactor Assembly, 3-Phase Electrical/Mechanical Interlock Reversing, Series: 3RA24, 20 to 33 VAC/VDC Coil, 65 A Maximum Load Current, 22/30 kW at 400 V 3-Phase Coil Power Rating, 3 Poles, 50/60 Hz, 82 VA Pickup, 6 VA Holding, 28 W DC Closing, 4 W DC Holding, 3NO, 3NO-3NC Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.36/0.39/0.5/0.64, S2, Screw Terminal, IP20, 10000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 142 mm H x 177.5 mm W x 223 mm D
3RA24348XE321NB3 Application
For switching motors and star delta (wye delta) start3RA24348XE321NB3 Item Features
- 0.64 at 50 Hz, 0.5 at 60 Hz closing, 0.36 at 50 Hz, 0.39 at 60 Hz holding power factor
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RA24348XE321NB3 Standards
EAC Certified|CE Certified|BUREAU VERITAS Approved|RMRS Approved|WEEE 2012/19/EU|REACH Article No. 33SKU #2443560Part Number #3RA24348XE321NB3UNSPSC39121521UPC00887621914233
