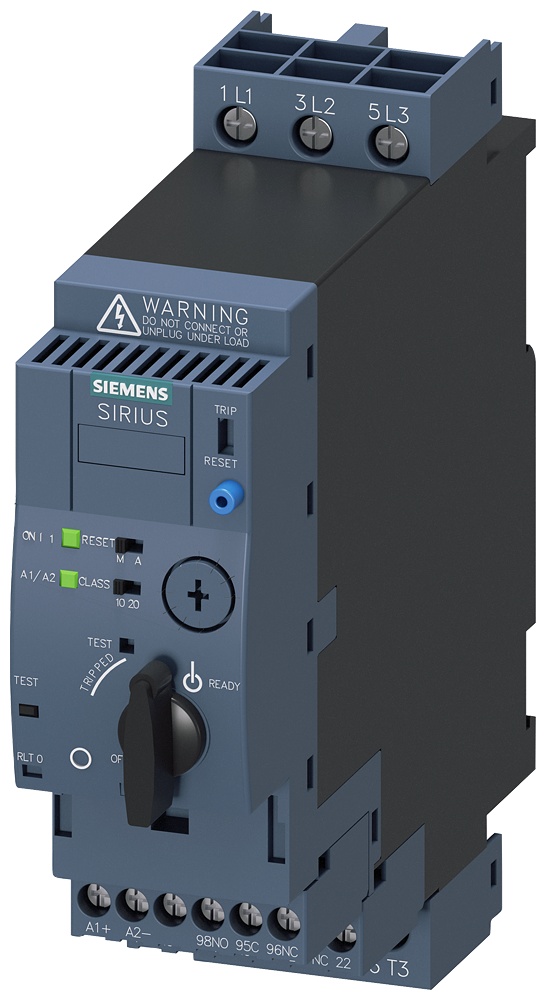

Siemens 3RA61201AP32 SIRIUS Compact Starter
Image Disclaimers Message
Siemens 3RA61201AP32 SIRIUS Compact Starter
Siemens 3RA61201AP32 SIRIUS Compact Starter
Part #:3RA61201AP32
SKU #: 2367648
Key Features
Part #:3RA61201AP32
SKU #: 2367648
Brand: Siemens
Amperage Rating: 0.3/0.32/0.35/0.4, 0.3/0.32/0.35/0.4 A
Auxiliary Contact Rating: 0.27/10, 0.27/10 A
Coil Voltage: 110 to 240, 110 to 240 VAC/VDC
Dimensions: 170 mm H x 45 mm W x 165 mm D
Enclosure Type: IP20
- Integrated functionality, permanent wiring, easy replacement
- 90 W at 400 V AC-3, 90 W at 400 V, 120 W at 500 V, 180 W at 690 V AC-43 wattage
- 0.4 A at 400 V AC-3, 0.3 A at 400 V, 0.32 A at 500 V, 0.35 A at 690 V AC-43 amperage rating
- 10 A at AC-12, 0.27 A at 250 V DC-13 auxiliary contact rating
- 0.4 A at 480/600 VAC full load current
Siemens 3RA61201AP32 SIRIUS Compact Starter
Siemens SIRIUS Compact Starter, DOL Direct Load Feeder, 690 VAC, 0.3/0.32/0.35/0.4 A, 50/60 Hz, 90/120/180 W, 110 to 240 VAC/VDC Coil, 3 Poles, Setting: 0.1 to 0.4 A, 3 ph Phase, Screw, 0.4 A Full Load, 0.27/10 A Auxiliary, IP20, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 170 mm H x 45 mm W x 165 mm D
Additional Description: SIEM-3RA61201AP32 DOL COMPACT STARTER 110-240V 0.1-0.4A
Catalog Description: SIRIUS, COMPACT STARTER, DIRECT STARTER 690 V, 110 ... 240 V AC/DC, 50 ... 60 HZ, 0.1 ... 0.4 A, IP20, CONNECTION MAIN CIRCUIT SCREW TERMINAL, CONNECTION AUXILIARY CIRCUIT SCREW TERMINAL
