Brand: Siemens
3RA62500DB30

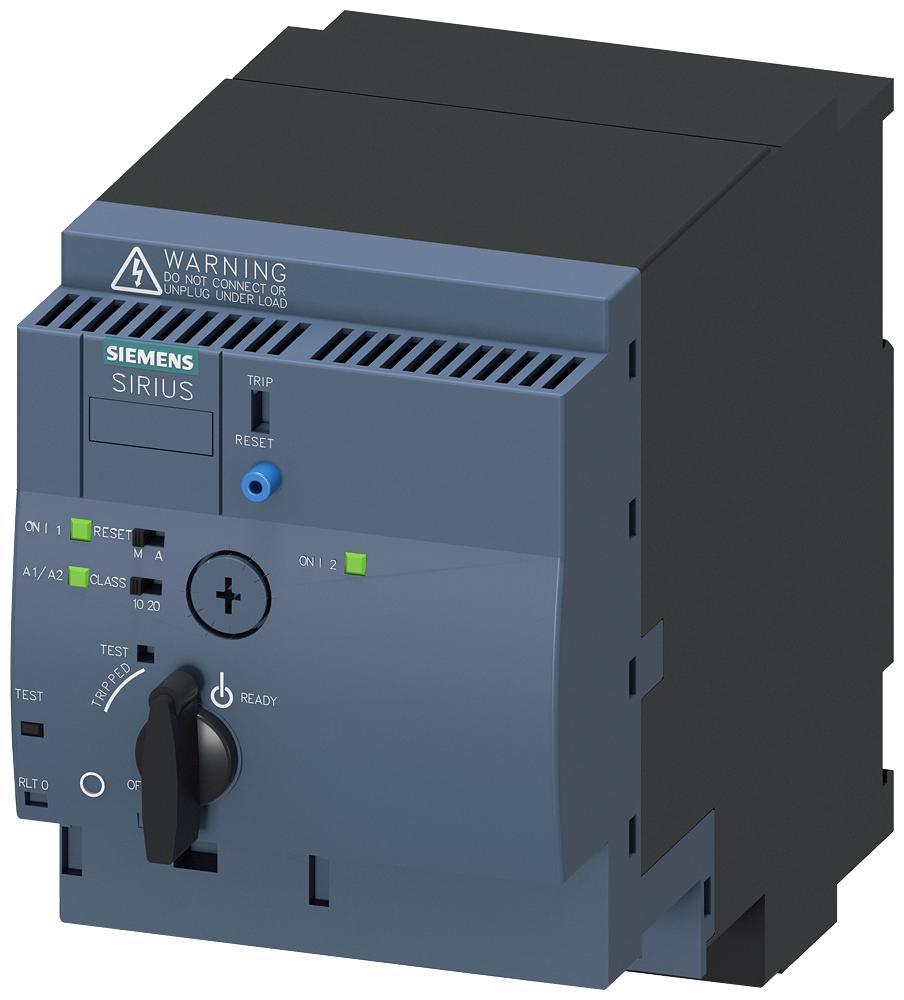

Siemens 3RA62500DB30 SIRIUS Compact Starter
Part Number # 3RA62500DB30
SKU # 2216791
$1322.60 / Each
Typical price:$1737.00 / Each
Siemens 3RA62500DB30 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA62500DB30 |
| SKU #: | 2216791 |
| Amperage Rating: | 8.9/11.5/12/12.4, 8.9/11.5/12/12.4 A |
| Auxiliary Contact Rating: | 0.27/10, 0.27/10 A |
| Coil Voltage: | 24, 24 V AC/DC, 24 VAC/VDC |
| Dimensions: | 170 mm H x 90 mm W x 165 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Full Load Current: | 12, 12 A, 12:00 AM |
| Motor Power: | 3 hp, 7-1/2 hp, 10 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -20 to 60, -20 to 60 deg C |
| Phase: | 3, 3 ph |
| Setting: | 3 to 12, 3 to 12 A |
| Type: | Load Feeder Reversing |
| Wattage: | 5500/7500, 5500/7500 W |
| Connection type: | Plug-In |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643359640 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1322.60 / Each
Typical price:$1737.00 / Each
Quantity:
- Siemens SIRIUS Compact Starter, Load Feeder Reversing, 690 V AC, 8.9/11.5/12/12.4 A, 50/60 Hz, 5500/7500 W, 3 hp, 7-1/2 hp, 10 hp Motor, 24 VAC/VDC Coil, 3 Poles, Setting: 3 to 12 A, 3 Phase, Plug-In, 12 A Full Load, 0.27/10 A Auxiliary, IP20, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 170 mm H x 90 mm W x 165 mm D
3RA62500DB30 Item Features
- 5.5 kW at 400 V AC-3, 5500 W at 400 V, 5500 W at 500 V, 7500 W at 690 V AC-43 wattage
- 12 A at 400 V AC-3, 11-1/2 A at 400 V, 12.4 A at 500 V, 8.9 A at 690 V AC-43 amperage rating
- 12 A at 480/600 VAC full load current
- 3 hp at 200/208 VAC, 3 hp at 220/230 VAC, 7-1/2 hp at 460/480 VAC, 10 hp at 575/600 VAC 3-phase motor power
- 10 A at AC-12, 0.27 A at 250 V DC-13 auxiliary contact rating
- Without terminals
3RA62500DB30 Standards
EC001037|CCC Certified|CSA Certified|UL Listed|EAC Certified|VDE Approved|RCM Tick|CE Certified|BUREAU Ceritas|Lloyds Register|PRS|RINA|RMRS|DNV-GL|WEEE 2012/19/EU|REACH Article 33 CompliantSKU #2216791Part Number #3RA62500DB30UNSPSC39121521UPC00662643359640
