3RB2153-4FC2

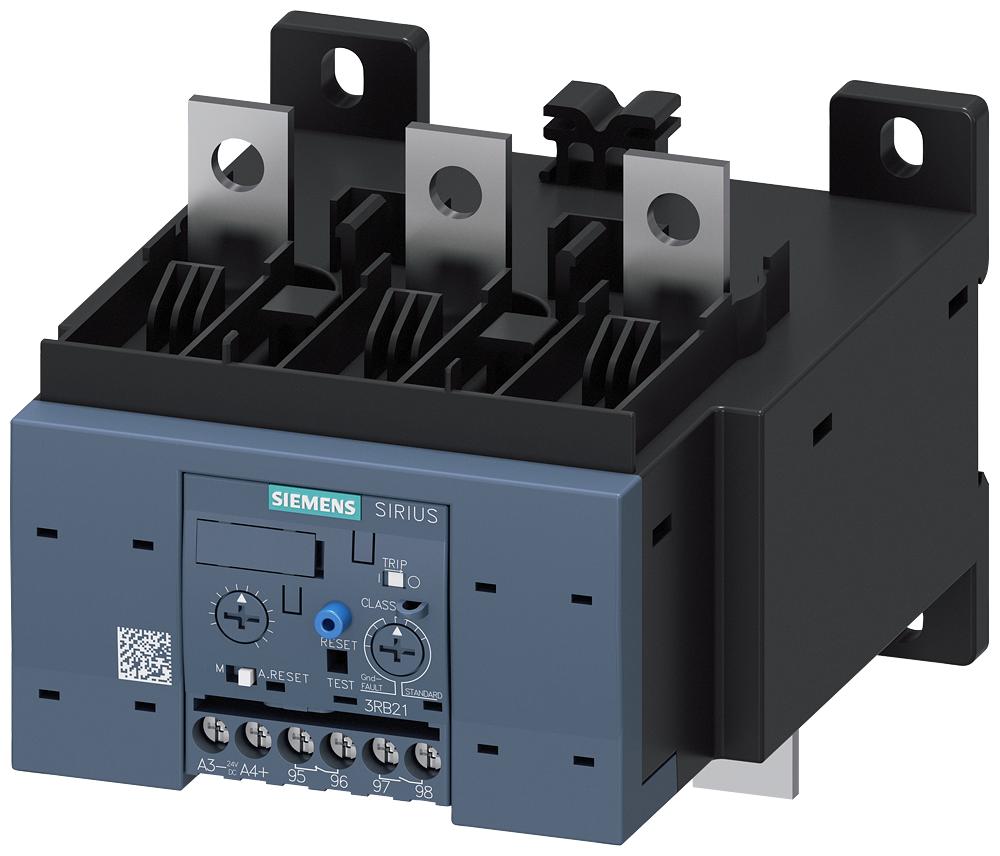

Siemens 3RB2153-4FC2 SIRIUS Overload Relay
Part Number # 3RB2153-4FC2
SKU # 2184785
Siemens 3RB2153-4FC2 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RB2153-4FC2 |
| SKU #: | 2184785 |
| Amperage Rating: | 50 to 200 A |
| Coil Voltage: | 1000 VAC |
| Contact Form: | 1NC-1NO, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 4 A at 24/110/120/125 VAC, 3 A at 230 VAC, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC |
| Dimensions: | 119 mm H x 120 mm W x 155 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Terminal Type: | Screw |
| Type: | Solid-State |
| Country of origin: | DE |
| Mounting type: | Contactor/Stand Alone |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122330 |
| UPC: | 00040892553604 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RB2153-4FC2 SIRIUS Overload Relay
Brand: Siemens
Part Number: 3RB2153-4FC2
SIRIUS Overload Relay, Solid-State, 50 to 200 A, 50/60 Hz Frequency, 1000 VAC Coil, 1NC-1NO Contact Form, 4 A at 24/110/120/125 VAC, 3 A at 230 VAC, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC Contact, 3 Pole, Contactor/Stand Alone Mounting, Screw Terminal, IP00/IP20 Enclosure, -25 to 60 deg C, 119 mm H x 120 mm W x 155 mm D Dimensions
Additional Description: SIEM-3RB2153-4FC2 RELAY,OVERLOAD 50...200 A FOR MOTOR PRO
Catalog Description: Overload relay 50...200 a for motor protection size s6, class 5...30 mount. onto cont./ stand-alone main circuit bar connection aux. circuit screw connection manual-automatic-reset int. earth fault detection
3RB2153-4FC2 Application
For standard and overload protection of explosionproof motors3RB2153-4FC2 Item Features
- Manual automatic reset
- Switch position indicator
- Test function
- Reset button
- 4 A at 24/110/120/125 VAC, 3 A at 230 VAC operating current of auxiliary contacts at AC-15, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110/125 VDC, 0.11 A at 220 VDC operating current of auxiliary contacts at DC-13
- Internal ground fault detection
3RB2153-4FC2 Standards
RoHS Compliant|REACH Article 33|CCC Certified|CSA Certified|UL Listed|EAC Approved|C-Tick|ATEX Certified|CE Certified|ABS Approved|LRS Listed|RINA Certified|DNV-GL ApprovedSKU #2184785Part Number #3RB2153-4FC2UNSPSC39122330UPC00040892553604
