Part Number # 3RB30161RE0
SKU # 2313377
Image Disclaimers Message
3RB30161RE0

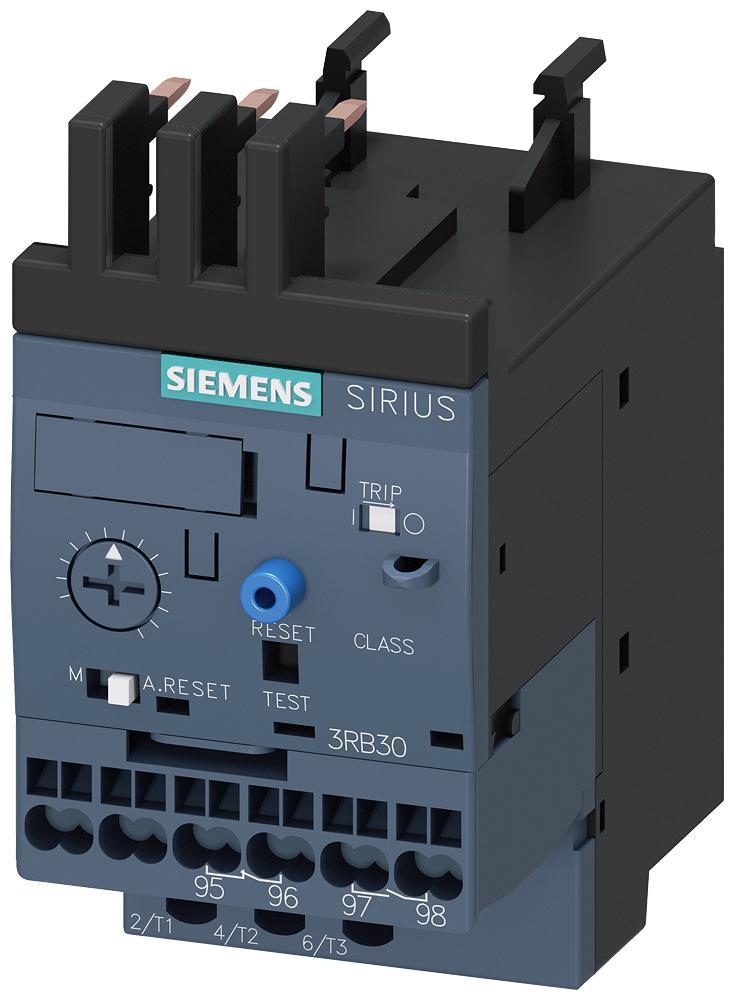

Siemens 3RB30161RE0 SIRIUS Overload Relay
Part Number # 3RB30161RE0
SKU # 2313377
Siemens 3RB30161RE0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RB30161RE0 |
| SKU #: | 2313377 |
| Amperage Rating: | 0.1 to 0.4, 0.1 to 0.4 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 4 A at 24/110/120/125 VAC, 3 A at 230 VAC, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110 VDC, 0.3 A at 25 VDC, 0.11 A at 220 VDC |
| Dimensions: | 72 mm H x 45 mm W x 90 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Number of Poles: | 3 |
| Series: | 3RB3 |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Terminal Type: | Spring Loaded |
| Type: | Generation 3 Solid State |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122330 |
| UPC: | 00662643904963 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RB30161RE0 SIRIUS Overload Relay
Brand: Siemens
Part Number: 3RB30161RE0
Siemens SIRIUS Overload Relay, Generation 3 Solid State, Series: 3RB3, 0.1 to 0.4 A, 0.04 to 0.09/0.04 to 0.12/0.06 to 0.18 kW Power, 50 to 60 Hz Frequency, 1NC-1NO Contact Form, 4 A at 24/110/120/125 VAC, 3 A at 230 VAC, 2 A at 24 VDC, 0.55 A at 60 VDC, 0.3 A at 110 VDC, 0.3 A at 25 VDC, 0.11 A at 220 VDC Contact, 3 Pole, Spring Loaded Terminal, IP20 Enclosure, -25 to 60 deg C, 72 mm H x 45 mm W x 90 mm D Dimensions
Additional Description: SIEM-3RB30161RE0 OVERLOAD S.S. CL10 S00 0.1-0.4A SPRING
Catalog Description: Overload relay 0.1...0.4 a for motor protection size s00, class 10 contactor ass. main circuit spr.-load.term. aux.circuit spr.-load.term. manual-autom.-reset
3RB30161RE0 Application
For the protection of induction motors in sinusoidal 50/60 Hz voltage networks3RB30161RE0 Item Features
- Overload protection, phase failure protection and unbalance protection
- Internal power supply
- Manual and automatic reset
- Switch position indicator
- TEST function and self-monitoring
- Devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials
- 0.04 to 0.09 kW for 3-phase motors at 400 VAC at 50 Hz, 0.04 to 0.12 kW for AC motors at 500 VAC at 50 Hz, 0.06 to 0.18 kW for AC motors at 690 VAC at 50 Hz
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RB30161RE0 Standards
UL Listed|CE Certified|CSA Certified|CCC Certified|EAC Certified|RCM Certified|ATEX (EX)|ABS Certified|Lloyds Register|RINA Certified|DNV-GL Approved|PRS Certified|RMRS Certified|BUREAU VERITAS Certified|WEEE (2012/19/EU)SKU #2313377Part Number #3RB30161RE0UNSPSC39122330UPC00662643904963
